ATENKVM Switches
4-Port DVI Dual Link KVM w/ USB 2.0 and 2.1 Audio
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DVI-I
- DVI-I ports quantity
- 5
- Console ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A
- Console USB ports quantity
- 3
- USB 2.0 ports quantity
- 2
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 4
- Number of microphone inputs
- 2
- DC-in jack
- Yes
Performance
- Maximum resolution
- 2560 x 1600 pixels
- Scan interval
- 1,99 s
- HDCP
- Yes
- Power on detection
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Metal
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 5.3 V
- Power consumption (typical)
- 10 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 270 mm
- Depth
- 88 mm
- Height
- 55.5 mm
- Weight
- 930 g
Packaging content
- Cables included
- KVM
- Manual
- Yes
- AC adapter included
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
More in KVM Switch 4 port
ATEN4 Port HDMI KVMP SwitchCS1794
ATEN4-Port USB-PS/2 KVMCS84U
StarTech.com"This 4-port USB KVM Switch lets you control multiple USB based computSV431DUSBU
StarTech.com4 Port StarView USB KVM SwitchSV431USB

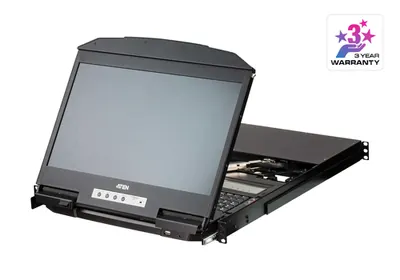

ATEN18.5 FHD 4Port USB HDMI MultiView Dual Rail LCD KVM SwitchCL3884NW

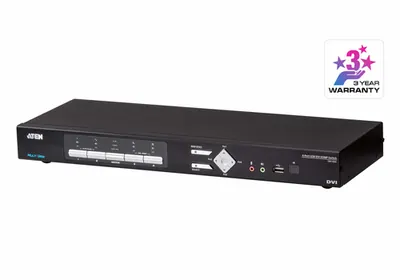

ATEN4Port DVI QuadinOne KVMP replaces CM1164CM1164A

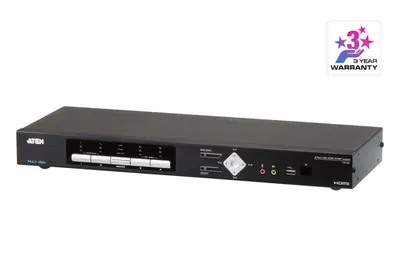

ATEN4Port HDMI QuadinOne KVMPCM1284

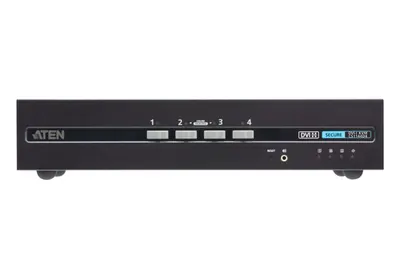

ATEN4Port USB DVI Dual Display PP4.0 Secure KVMCS1144D4
