4 Port DVI-D KVMP with USB 2.0 peripheral sharing
- Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
- WUXGA 1920 x 1200 pixels
- Housing material: Metal
- Hot keys
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Features:
-One USB console controls four DVI computers and two additional USB 2.0 devices
-2-port USB 2.0 hub built in
-Fully compliant with the USB 2.0 specification

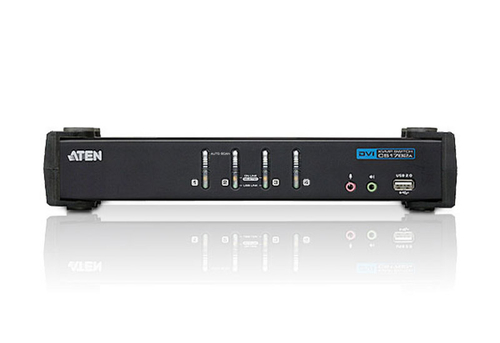

-Computer selection via front panel pushbuttons and hotkeys
-Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
-Multiplatform support - Windows, Linux, Mac and Sun
-Superior video quality - 1920 x 1200, 60Hz; DDC2B
-Independent switching of KVM, USB, and Audio focus
-DVI digital and analog monitor support - fully compliant with the DVI specifications
-HDCP compliant
-Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
-Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
-Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
-Sun /Mac keyboard support and emulation*
-Auto Scan Mode for monitoring all computers
-Firmware upgradable via USB
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Package Contents
1x CS1764A USB 2.0 DVI KVMP™ Switch
4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Power Adapter
1x User Manual
1x Quick Start Guide
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DVI-I
- DVI-I ports quantity
- 5

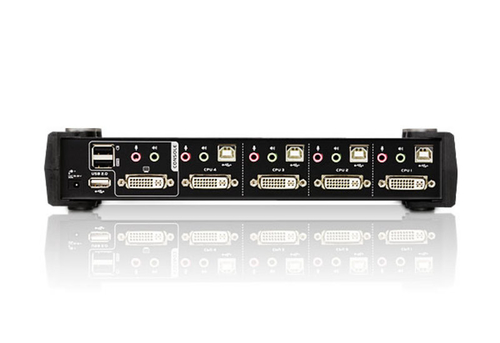

- Console ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A
- Console USB ports quantity
- 2
- USB hub
- Yes
- USB 2.0 ports quantity
- 4
- USB connector type
- USB Type-A
- USB version
- 2.0
- Audio connections
- Yes
- Headphone outputs
- 5
- Number of microphone inputs
- 5
- DC-in jack
- Yes
Performance
- HD type
- WUXGA
- Maximum resolution
- 1920 x 1200 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 1,99 s
- DDC2B support
- Yes
- HDCP
- Yes
- Power on detection
- Yes
- Firmware upgradeable
- Yes
Design
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- USB, Yes
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Power
- Power source
- DC
- Input voltage
- 5.3 V
- Power consumption (typical)
- 10.7 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 270 mm
- Depth
- 88 mm
- Height
- 55.5 mm
- Weight
- 940 g
Packaging content
- Cables included
- DC, KVM
- Quick installation guide
- Yes
- Manual
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
