8 Port LCD KVM - The CL5708 Slideaway LCD KVMP Switch is an integrated LCD console and keyboard

Part # CL5708MUPC 67279210058138.76 lb

Rack mounting 1U Black
Number of computers controlled: 256
Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
WUXGA 1920 x 1200 pixels
Housing material: Metal
Hot keys

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

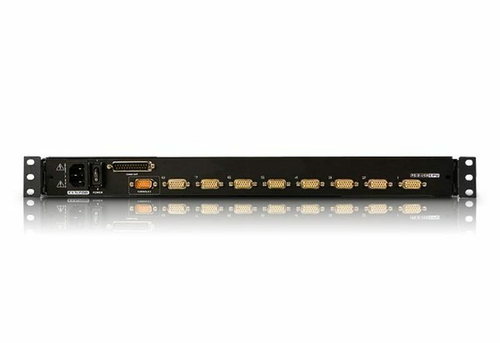

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features:

-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

-Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing

-Available with or without Fingerprint Identification Reader**

-Space saving technology - up to two consoles (one bus) control up to 8 computers

-Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)

-Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

-LCD module USB port allows each computer to access USB peripherals*

-LCD module rotates up to 115 degrees for a more comfortable viewing angle

-Multiplatform support – Windows, Linux, Mac, and Sun

-Supports multimedia USB keyboards for PC, Mac and Sun

-Auto PS/2 and USB interface detection

-Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

-Supports external USB mouse

-Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz

-No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

-Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position

-Port names automatically reconfigured when station sequence is changed

-Two level password security - only authorized users can view and control computers

-Supports one administrator and four user accounts with separate profiles

-Auto Scan mode enables continuous monitoring of user-selected computers

-Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation

-Hot pluggable - add or remove computers without having to power down the switch

-Beeper on/off via hotkey and OSD

-Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
