ATENNetwork Transceiver Modules
12 mile optical module for KE8950/8952
- Extend your network connectivity up to 10 kilometers
- Differential Inputs and Outputs
- Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
- Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
- Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
- Operation Temperature from 0° C to 70° C
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

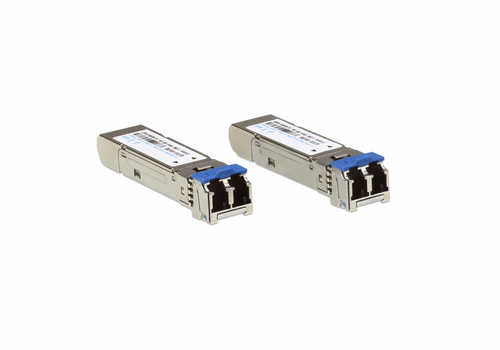

The 2A-137G 1.25G Single-Mode/10KM Fiber SFP Module provides 1 GbE connectivity up to 10 kilometers. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-137G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm which makes it a cost-effective and high performance transceiver.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Single-mode fiber (SMF) supported
- Yes
- Maximum transfer distance
- 10000 m
- Wavelength
- 1310 nm
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Black, Metallic
Certificates
- Compliance certificates
- RoHS
- Certification
- IEC 825, EN60825-1, FDA 21 CFR 1040.10
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
Weight & dimensions
- Width
- 144.6 mm
- Depth
- 55.9 mm
- Height
- 13 mm
- Weight
- 20 g
