Home/Catalogue/ASUS/ROG-ASTRAL-RTX5090-O32G-W
Drag to turn · 14 views
ROG Astral - -RTX5090-O32G-WHITE Nvidia Geforce RTX 5090 32 GB GDDR7
- NVIDIA GeForce RTX 5090 32 GB GDDR7
- 7680 x 4320 pixels 512 bit 28 Gbit/s PCI Express 5.0
- HDMI ports quantity: 2 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 1x 16-pin
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

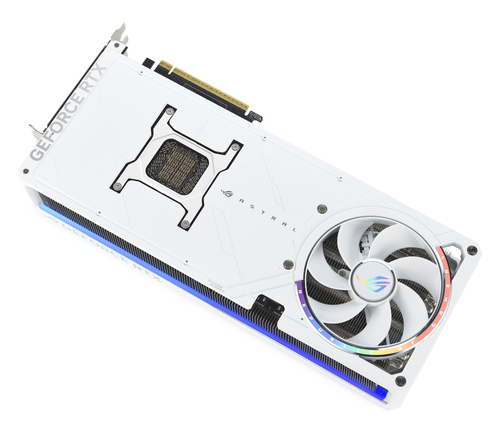

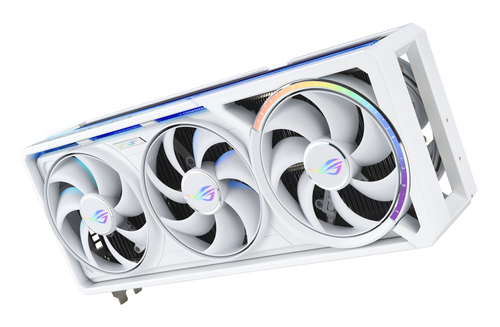

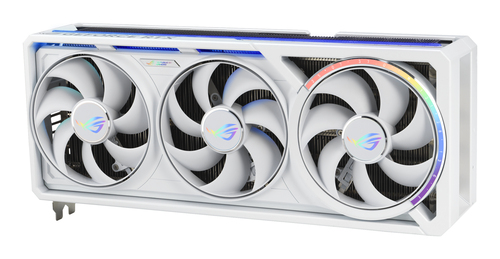

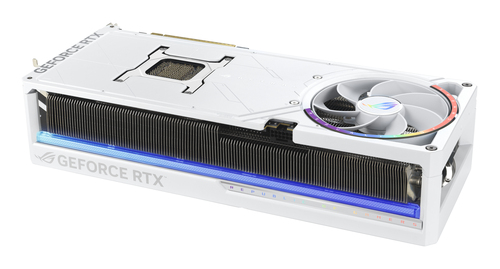

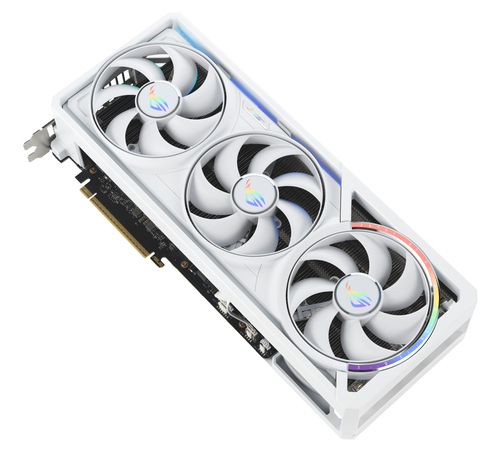

ROG Astral GeForce RTX™ 5090 White Edition
The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 White Edition introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Engineered for Excellence
Driven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe’s wonders, it blends art and technology, achieving stellar cooling and unmated performance.
Cooling Expertise
Quad-Fan Force
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.
Specifications
Processor
- CUDA
- Yes
- CUDA cores
- 21760
- Graphics processor family
- NVIDIA
- Graphics processor
- GeForce RTX 5090
- Processor boost clock speed
- 2580 MHz
- Processor frequency (OC mode)
- 2610 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Maximum displays per videocard
- 4
Memory
- Discrete graphics card memory
- 32 GB
- Graphics card memory type
- GDDR7
- Memory bus
- 512 bit
- Data transfer rate
- 28 Gbit/s
Ports & interfaces
- Interface type
- PCI Express 5.0
- HDMI ports quantity
- 2
- HDMI version
- 2.1b
- DisplayPorts quantity
- 3
- DisplayPort version
- 2.1b
Performance
- TV tuner integrated
- No
- OpenGL version
- 4.6
- HDCP
- Yes
- HDCP version
- 2.3
- Dual Link DVI
- No
- NVIDIA G-SYNC
- Yes
- NPU performance up to
- 3352 TOPs
- Overclocked (OC) edition
- Yes
Design
- Cooling type
- Active
- Cooling technology
- ASUS Axial-tech
- Number of fans
- 4 fan(s)
- Form factor
- Full-Height/Full-Length (FH/FL)
- Number of slots
- 3.8
- Illumination
- Yes
- Illumination colour
- Multi
- Product colour
- White
Power
- Minimum system power supply
- 1000 W
- Supplementary power connectors
- 1x 16-pin
Weight & dimensions
- Length
- 357.6 mm
- Depth
- 76 mm
- Height
- 149.3 mm
Packaging data
- Package type
- Box
Packaging content
- Manual
- Yes
Downloads
