ASUSGraphics Cards

Dual -RX7600-O8G-V2 AMD Radeon RX 7600 8 GB GDDR6

Part # DUAL-RX7600-O8G-V2UPC 1971052365921 lb

OC mode: Up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)
Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
2.5-slot design allows for greater build compatibility while maintaining premium cooling
0dB technology lets you enjoy light gaming in relative silence
Auto-extreme precision automated manufacturing for higher reliability

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

2x Fans. 2x Fun.

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the Dual Radeon™ RX 7600 melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.

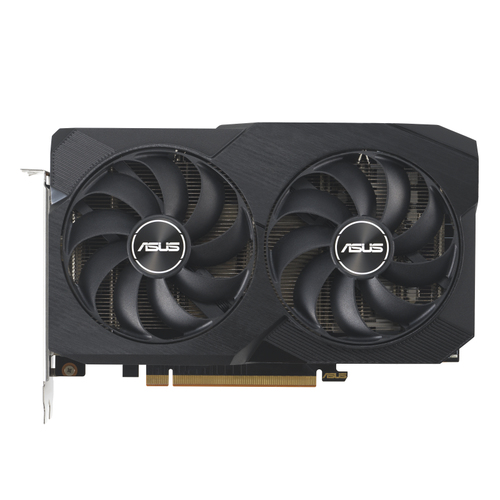

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

GPU TWEAK III

Monitor, tweak, and tune

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Pair with a PSU

Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.

Free 1 Month of Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products.

Specifications

Processor

Graphics processor family: AMD
Graphics processor: Radeon RX 7600
Processor boost clock speed: 2695 MHz
Processor boost clock speed (OC mode): 2715 MHz
Processor boost clock speed (Gaming mode): 2300 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Stream processors: 2048
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 18 Gbit/s

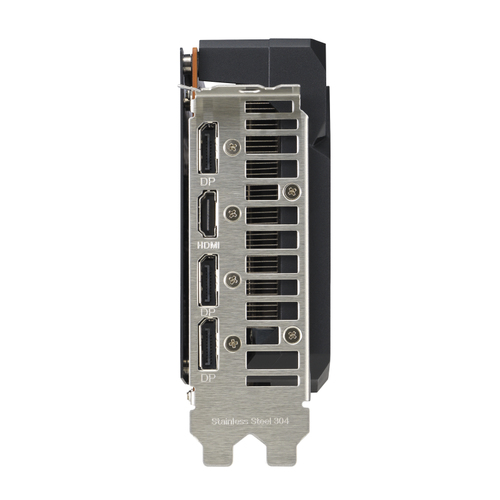

Ports & interfaces

Interface type: PCI Express 4.0
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 3
DisplayPort version: 1.4a

Performance

TV tuner integrated: No
DirectX version: No
OpenGL version: 4.6
HDCP: Yes
HDCP version: 2.3
Dual Link DVI: No
NVIDIA G-SYNC: No
AMD FreeSync: Yes
Overclocked (OC) edition: Yes

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Bracket height: Full-Height (FH)
Number of slots: 2.5
Illumination: No
Product colour: Black

Power

Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin

Weight & dimensions

Weight: 630 g
Length: 205 mm
Depth: 49 mm
Height: 128 mm

Packaging data

Package width: 364 mm
Package depth: 217 mm
Package height: 66 mm
Package weight: 1.09 kg
Package type: Box

Downloads

Product brochure (PDF)
