ASUSGraphics Cards

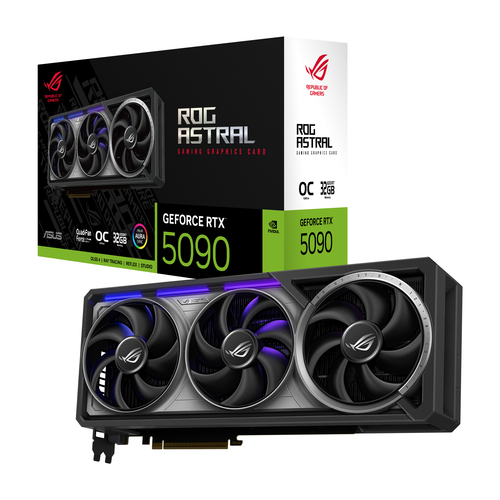

ROG Astral - -RTX5090-O32G-GAMING Nvidia Geforce RTX 5090 32 GB GDDR7

Part # ROG-ASTRAL-RTX5090-O32G-GUPC 1971058902999.9 lb

NVIDIA GeForce RTX 5090 32 GB GDDR7
7680 x 4320 pixels 512 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 2 DisplayPorts quantity: 3
OpenGL version: 4.6
1x 16-pin

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The Final Frontier

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Specifications

Processor

CUDA: Yes
CUDA cores: 21760
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5090
Processor boost clock speed: 2580 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 32 GB
Graphics card memory type: GDDR7
Memory bus: 512 bit
Data transfer rate: 28 Gbit/s

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 2
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

OpenGL version: 4.6
Virtual Reality (VR) ready: Yes
HDCP: Yes
HDCP version: 2.3
Dual Link DVI: No
NVIDIA G-SYNC: Yes
NPU performance up to: 3352 TOPs

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 4 fan(s)
Number of slots: 3.8
Illumination: Yes
Illumination colour: Multi
Product colour: Multicolour

Power

Minimum system power supply: 1000 W
Supplementary power connectors: 1x 16-pin

Weight & dimensions

Length: 357.6 mm
Depth: 76 mm
Height: 149.3 mm

Packaging data

Package type: Box
