ASUSGraphics Cards

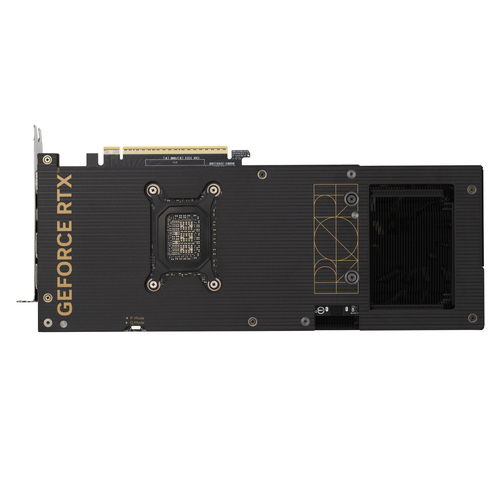

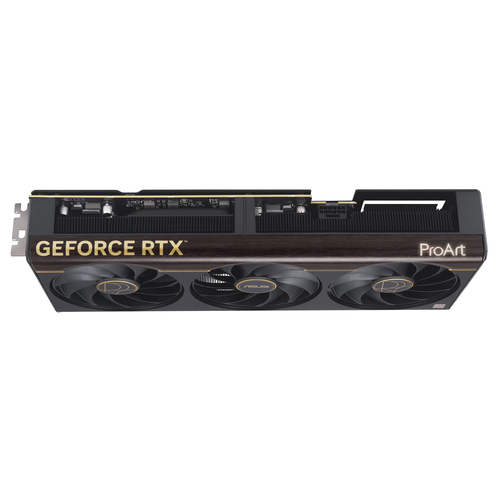

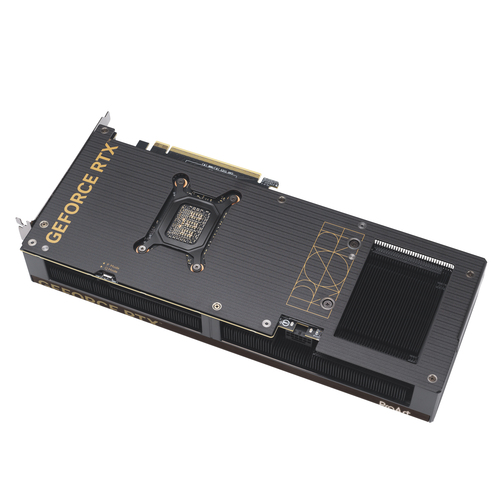

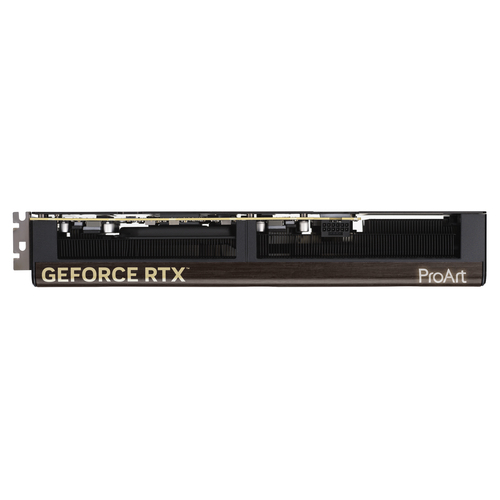

ProArt -RTX5070TI-O16G NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

Part # PROART-RTX5070TI-O16GUPC 1992912270024.5 lb

NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
7680 x 4320 pixels 256 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 1 DisplayPorts quantity: 2
OpenGL version: 4.6
1x 16-pin

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Visionary. Versatile. Timeless.

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Specifications

Processor

CUDA: Yes
CUDA cores: 8960
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5070 Ti
Processor boost clock speed: 2588 MHz
Processor frequency (OC mode): 2610 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR7
Memory bus: 256 bit
Data transfer rate: 28 Gbit/s

Ports & interfaces

Interface type: PCI Express 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 2
DisplayPort version: 2.1b
USB Type-C ports quantity: 1

Performance

OpenGL version: 4.6
HDCP: Yes
HDCP version: 2.3
Dual Link DVI: No
NVIDIA G-SYNC: Yes
Overclocked (OC) edition: Yes

Design

Cooling type: Active
Cooling technology: ASUS Axial-tech
Number of fans: 3 fan(s)
Form factor: Full-Height/Full-Length (FH/FL)
Bracket height: Full-Height (FH)
Number of slots: 2.5
Illumination: Yes
SFF ready: Yes
Product colour: Multicolour

Power

Minimum system power supply: 850 W
Supplementary power connectors: 1x 16-pin

System requirements

Windows operating systems supported: Yes

Weight & dimensions

Weight: 1.39 kg
Length: 304 mm
Depth: 50 mm
Height: 126 mm

Packaging data

Package width: 405 mm
Package depth: 233 mm
Package height: 88.5 mm
Package weight: 2.04 kg
Package type: Box

Downloads

Product brochure (PDF)User manual (PDF)
