APCPower Distribution Units (PDUs)

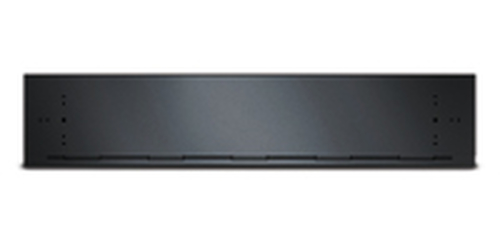

SERVICE BYPASS PANEL 120V 30A BBM L5-30P input; (4) 5-20R (1) L5-30R output
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Maintenance Bypass Panels , Input: 120V , Input Connections: NEMA L5-30P , Cord Length: 8 feet ( 2.44 meters ) , Output: 120V , Output Connections: NEMA 5-20R,NEMA L5-30R
01
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
02
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
Design
- PDU types
- Basic
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 5 AC outlet(s)
- Power plug
- NEMA L5-30P
- Output connections
- 4 x NEMA 5-20R & 1 x NEMA L5-30R
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 120 V
- Load capacity
- 3000 VA
- Maximum input current per phase
- 30 A
- Maximum total current draw per phase
- 30 A
Certificates
- Compliance certificates
- RoHS
- Certification
- TUV
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 4500 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 432 mm
- Depth
- 76 mm
- Height
- 89 mm
- Weight
- 4.45 kg
Packaging data
- Package weight
- 5.27 kg
- Package width
- 463 mm
- Package depth
- 295 mm
- Package height
- 151 mm
Downloads
More in UPS Under 500 VA
APCAPC Back-UPS, 6 Outlets, 425VA, 120VBE425M
APCBack-UPS CS 350. Description: APC Back-UPS CS, 350VA/210W, Input 120V/BK350
CyberPower12 Out 5-15R 5FT Cord USB RJ11 15A Line-Int 3YRAVRG900U
APCSPECIAL ORDER ONLY 350VA Back-UPS 230V CS350 USB/Serial connectivity; BK350EI
APCAPC Back-UPS RS 500, 230V without auto shutdown software, ASEANBR500CI-AS
APCAPC Service Bypass Panel 120V 15A BBM 5-15P input; 5-15R outputSBP1500RM
APCFACTORY ONLY ITEM APC Smart-UPS SC 450VA 230V - 1U Rackmount/TowerSC450RMI1U

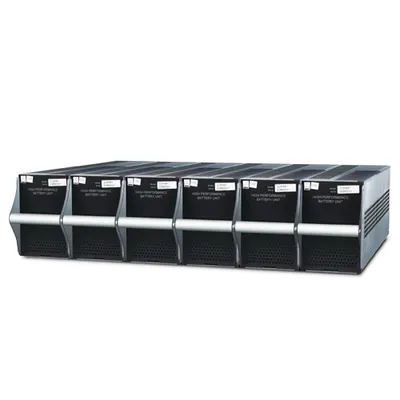

APCAPC High Performance Battery Module for the Symmetra PX 250/500kWSYBT9-B6
