Yealink CS10-D Drag to turn · 6 views
YealinkLoudspeakers

CS10-D loudspeaker 2-way Black, Grey, White Wired

Part # CS10-DUPC 84188512356512.5 lb

  • • Innovative Coaxial Structure
  • • Acoustically tuned design for speech
  • • PoE-Enabled Active Speaker
  • • Versatile Deployment
  • • Sophisticated Design
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

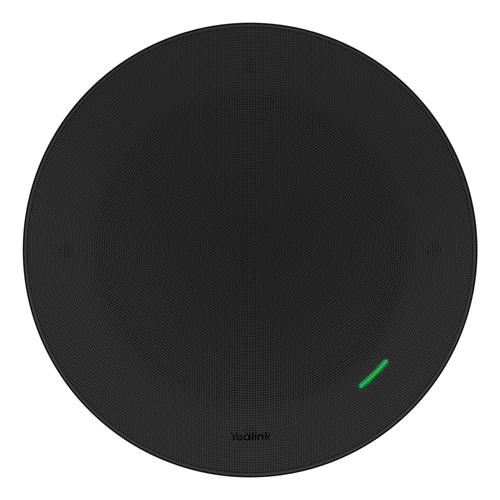

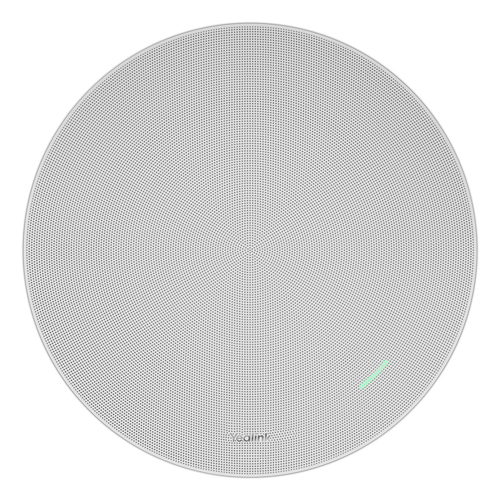

Low-Profile 2-Way Coaxial Ceiling Loudspeaker

01

CS10/CS10-D

The CS10/CS10-D ceiling speaker is available in two editions to suit various needs:

CS10-D Dante edition

02

CS10 General edition

eaturing support for the Dante audio transmission protocol, the CS10-D seamlessly integrates with a wide range of standard Dante devices, delivering a versatile and convenient collaborative experience.

03

Practical and Aesthetic Integration

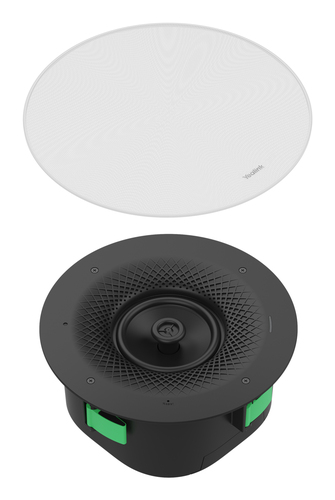

The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.

04

Specially Designed for Conference Space

The CS10/CS10-D boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.

05

Video Conferencing Perfected

CS10/CS10-D was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.

06

Versatile Adaptability

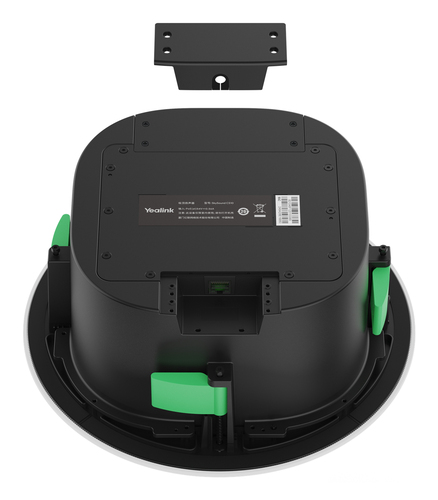

CS10/CS10-D provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.

Specifications

Loudspeakers

Speaker type
2-way
Audio output channels
2.0 channels
Tweeter
Yes
Tweeter diameter
2.8 cm
Tweeter diameter (imperial)
2.79 cm (1.1")
Woofer
Yes
Woofer diameter
14.5 cm
Woofer diameter (imperial)
14.5 cm (5.7")

Audio

Frequency range
100 - 20000 Hz
Impedance
8 Ω
Sensitivity
88 dB
Sound pressure level (max)
99 dB
Beamwidth
0 - 120°

Performance

Market segment
Professional
Recommended usage
Universal
Number of speakers
1
Product colour
Black, Grey, White

Ports & interfaces

Connectivity technology
Wired

Packaging content

Quantity per pack
1 pc(s)
