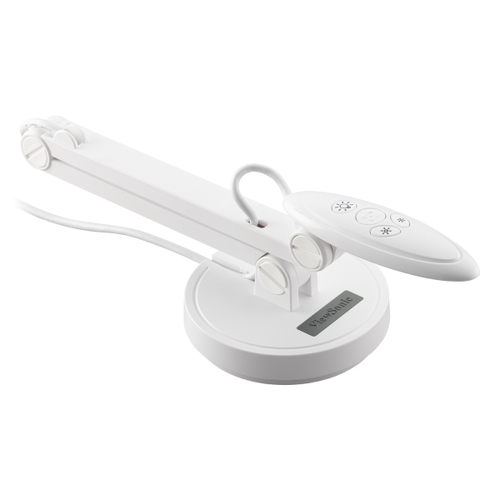

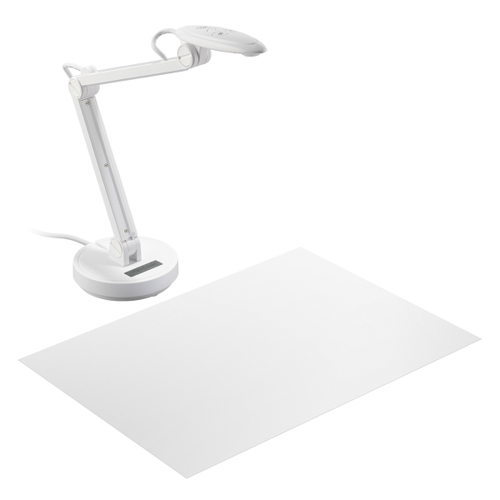

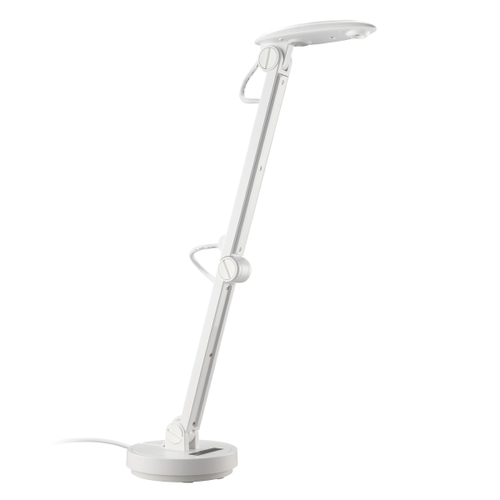

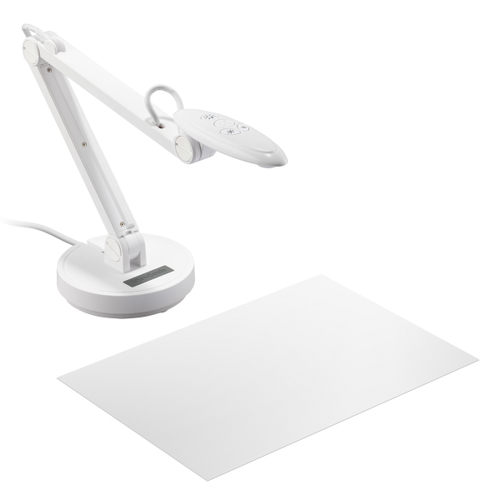

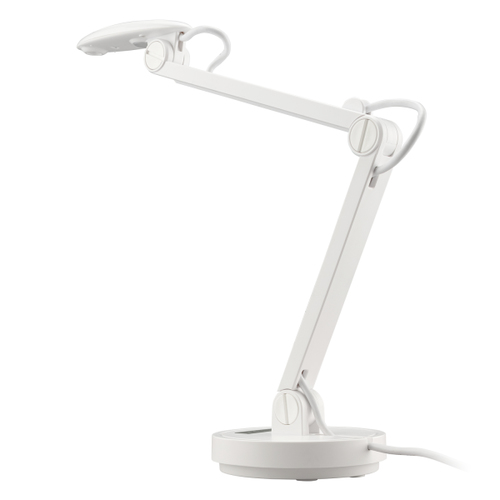

VB-VIS-002 document camera White CMOS USB 2.0
- ADJUSTABLE ARM
- CONVENIENT PRESETS
- CROSS-PLATFORM SUPPORT
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ViewSonic® VB-VIS-002 is an easy-to-use, plug-and-play USB document camera that is an essential tool for hybrid education setups. Compatible with myViewBoard™ software, this document camera can deliver a live feed to the myViewBoard digital canvas so both remote and in-class students can view annotations. The VB-VIS-002 has an 8-megapixel image sensor that delivers vivid colors and images, while an adjustable arm makes for easy image capture.
WORKS WITH MYVIEWBOARD
With a live camera feed on the myViewBoard™ whiteboard canvas, educators can capture screenshots and annotations and easily share them with students in any location.
8-MEGAPIXEL IMAGE SENSOR
An 8-megapixel image sensor supports up to 3264x2448 resolution for crystal clear images and videos.
CROSS-PLATFORM SUPPORT
Plug-and-play support for Windows, MacOS, and Chrome OS.
EASY AUTO-FOCUS
An intelligent auto-focus feature automatically adjusts the camera lens to ensure razor-sharp images and quick setup every time.
8X DIGITAL ZOOM
Powerful 8x digital zoom enables users to quickly enlarge screen images for more effective and immersive lessons (vDocCam software required).
CONVENIENT PRESETS
Easy-access buttons allow for quick adjustments such as focus, brightness and LED lighting.
ADJUSTABLE ARM
An ultra-flexible arm provides quick and easy camera adjustments for better image capture.
Specifications
Camera
- Effective sensor resolution
- 8 MP
- Sensor type
- CMOS
- Supported graphics resolutions
- 1200 x 1600, 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944, 3264 x 2448
- HD type
- 4K Ultra HD
Ports & interfaces
- Interface
- USB 2.0
- USB connector type
- USB Type-A
- USB 2.0 ports quantity
- 1
Technical details
- Product colour
- White
Power
- Power supply type
- USB
- USB powered
- Yes
- Operating voltage
- 5 V
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
Weight & dimensions
- Width
- 255 mm
- Depth
- 85 mm
- Height
- 70 mm
- Weight
- 400 g
Packaging data
- Package width
- 289 mm
- Package depth
- 115 mm
- Package height
- 83 mm
- Package weight
- 600 g
Packaging content
- User guide
- Yes
- Cables included
- USB
Logistics data
- Pallet gross length
- 100 cm
- Pallet gross width
- 120 cm
- Pallet gross height
- 176.4 cm
- Products per master (outer) case
- 12 pc(s)
