ViewSonicSignage Display Mounts

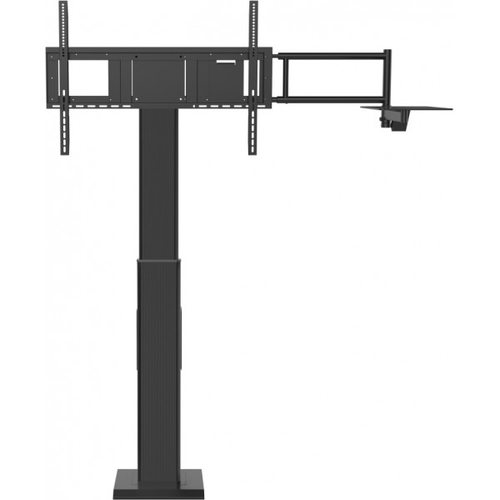

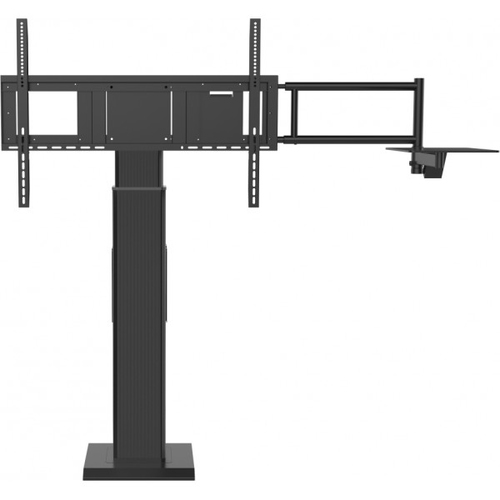

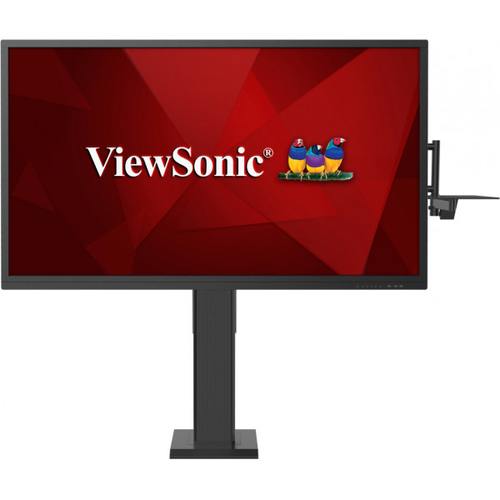

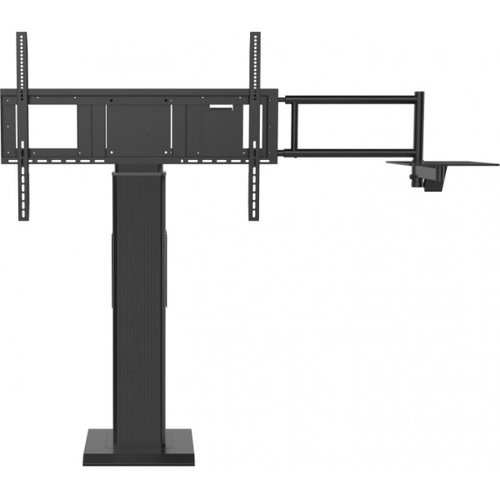

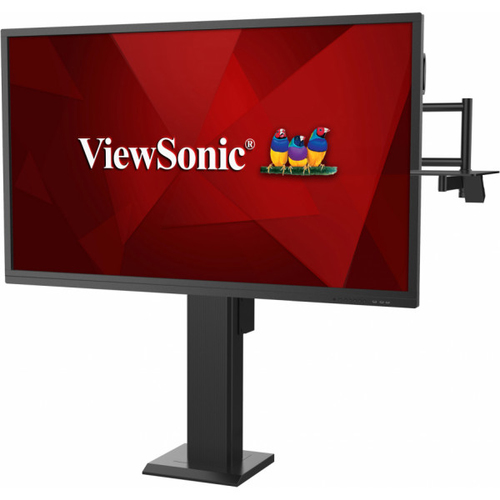

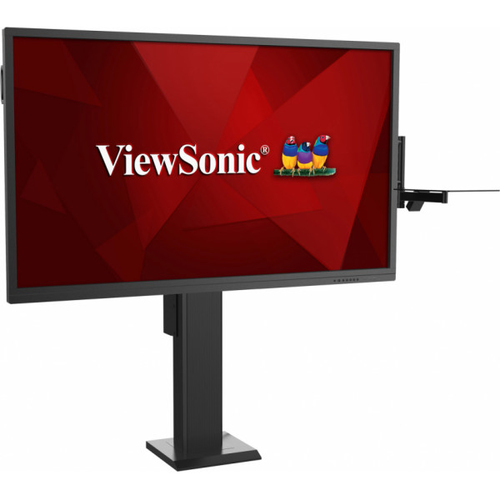

VB-STND-004 signage display mount 2.18 m (86") Black
- Fixed floor stand Maximum weight capacity: 100 kg Black
- Maximum screen size: 2.18 m (86")
- Mounting type: Desk
- Maximum VESA mount: 800 x 600 mm

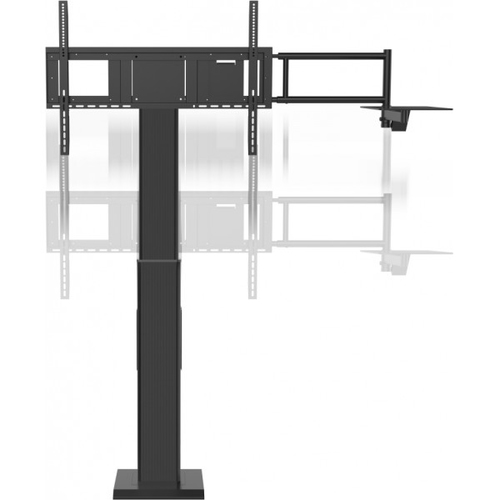

- Height adjustment
- Motorized
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Description
Featuring smooth motorized lift, the ViewSonic VB-STND-004 motorized floor mount securely accommodates ViewSonic 55”, 65”, 75”, and 86" ViewBoard interactive flat panel displays, or any display weighing up to 220 lbs. With integrated on-screen control, the floor mount can be manipulated directly from the ViewBoard touchscreen (IFP50 series only), allowing you to easily raise or lower the ViewBoard with a single tap. A sturdy design ensures that the stand stays upright when secured and bolted to the floor.
Specifications
Mounting
- Maximum weight capacity
- 100 kg
- Minimum screen size
- 139.7 cm (55")
- Number of displays supported
- 1
- Maximum screen size
- 2.18 m (86")
- Mounting type
- Desk
- Maximum VESA mount
- 800 x 600 mm
Ergonomics
- Height adjustment
- Yes
- Height adjustment type
- Electric
- Height adjustment range
- 0 - 560 mm
- Included number of shelves
- 1
Design
- Type
- Fixed floor stand
- Product colour
- Black
- Housing material
- Aluminium, Plastic, Steel
- Certification
- FCC, cTUVus, CE, CB, RCM
Power
- Motorized
- Yes
- AC adapter included
- Yes
- AC input frequency
- 50/62 Hz
Weight & dimensions
- Width
- 960 mm
- Depth
- 377 mm
- Height
- 1182 mm
- Weight
- 44.3 kg
Packaging data
- Package width
- 1155 mm
- Package depth
- 795 mm
- Package height
- 305 mm
- Package weight
- 53.5 kg
- Quantity per pack
- 1 pc(s)
Packaging content
- Manual
- Yes
- Cables included
- USB
Logistics data
- Harmonized System (HS) code
- 9403208000
- Pallet gross length
- 114 cm
- Pallet gross width
- 150 cm
- Pallet gross height
- 165 cm
- Products per master (outer) case
- 1 pc(s)
Downloads
