Home/Catalogue/ViewSonic/TD2423D
24" IR 10-point Touch Display, 1920x1080 Full HD resolution.
- 10-point IR Touchscreen
- Full HD 1080p Resolution
- Durable, Scratch-resistant Screen
- 24/7 Anti-Viral Protection
- MultiTouch for MacOS
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2423d is a 24” touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2423d delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, DisplayPort, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What’s more, ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.
Specifications
Display
- Display diagonal
- 61 cm (24")
- Display resolution
- 1920 x 1080 pixels
- HD type
- Full HD
- Native aspect ratio
- 16:9
- Display technology
- LCD
- Panel type
- MVA
- LED backlight
- Yes
- Touchscreen
- Yes
- Touchscreen technology
- Infrared
- Touch technology
- Multi-touch
- Number of simultaneous touchpoints
- 10
- Display brightness
- 250 cd/m²
- Response time
- 7 ms
- Screen shape
- Flat
- Contrast ratio (typical)
- 3000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 16.78 million colours
- Digital horizontal frequency
- 24 - 82 kHz
- Digital vertical frequency
- 50 - 75 Hz
Performance
- NVIDIA G-SYNC
- No
- AMD FreeSync
- No
- Operating hours (hours/days)
- 24/7
Multimedia
- Number of speakers
- 2
- RMS rated power
- 4 W
- Built-in speaker(s)
- Yes
- Built-in microphone
- No
- Built-in camera
- No
Design
- Product colour
- Black
Ports & interfaces
- USB upstream port type
- USB Type-B
- Number of upstream ports
- 1
- USB Type-A downstream ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- DisplayPorts quantity
- 1
- Headphone out
- Yes
- Microphone in
- Yes
Ergonomics
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm
- Wall mountable
- Yes
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Tilt adjustment
- Yes
- Tilt angle range
- -22 - 38°
- On Screen Display (OSD)
- Yes
Power
- Power consumption (typical)
- 18 W
- Power consumption (standby)
- 0.5 W
- Power consumption (max)
- 21.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 90%
Weight & dimensions
- Width (with stand)
- 571 mm
- Depth (with stand)
- 101 mm
- Height (with stand)
- 348 mm
- Weight (with stand)
- 5.2 kg
- Width (without stand)
- 571 mm
- Depth (without stand)
- 61 mm
- Height (without stand)
- 348 mm
- Weight (without stand)
- 4.7 kg
Packaging data
- Package width
- 645 mm
- Package depth
- 166 mm
- Package height
- 422 mm
- Package weight
- 7 kg
Packaging content
- Stand included
- Yes
More in 23-26 inch Class
ViewSonicTOUCH 24" (23.6" viewable) ) Full HD 10 Point Touch, 1920 x 1080 resolTD2430
ViewSonic24" Ergonomic 1080p IPS Docking Monitor with USB-C 90W PD and RJ45.TD2465
ViewSonic24'' 1080p IPS 120Hz Monitor with HDMI, VGA.VA240A-H
ViewSonic24 1080p VA Curved Monitor with Variable Refresh Rate, HDMI, DisplayPoVA2416C
ViewSonic24 1080p 120Hz Monitor with Variable Refresh Rate, HDMI and VGA.VA2448-MH
ViewSonic24 1080p Ergonomic 120Hz Monitor with Variable Refresh Rate, HDMI and VA2448-MHJ
ViewSonic24 1080p IPS Monitor with Adaptive Sync, HDMI, DisplayPort, and VGAVA2456A-MHD

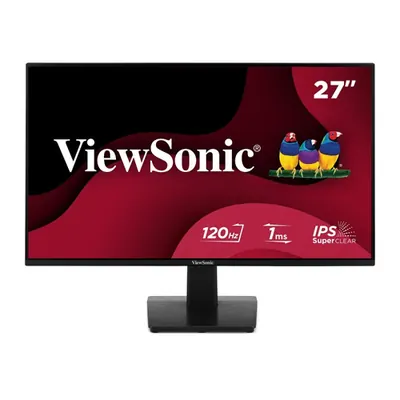

ViewSonic27 1080p 120Hz Monitor with Variable Refresh Rate, HDMI and VGA.VA2748-MH
