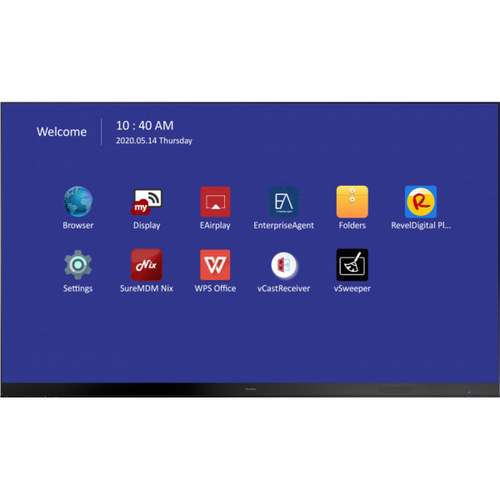

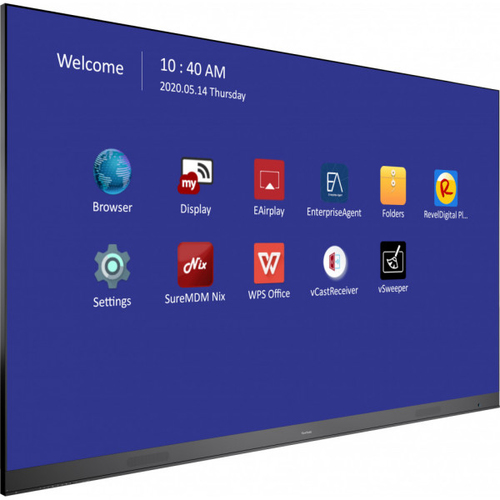

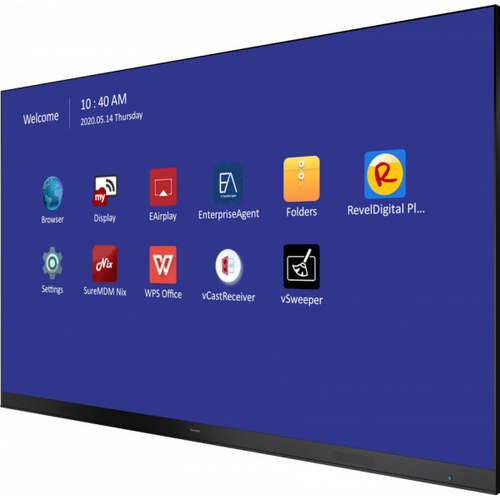

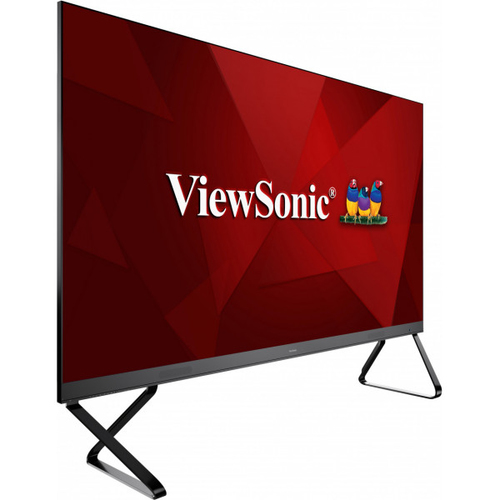

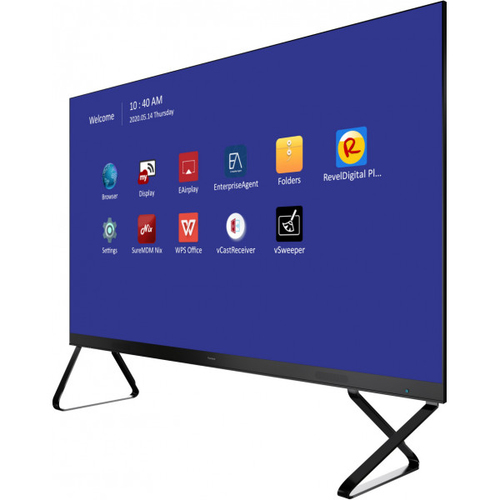

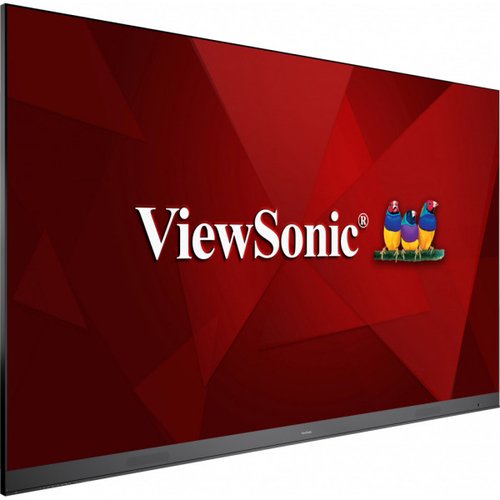

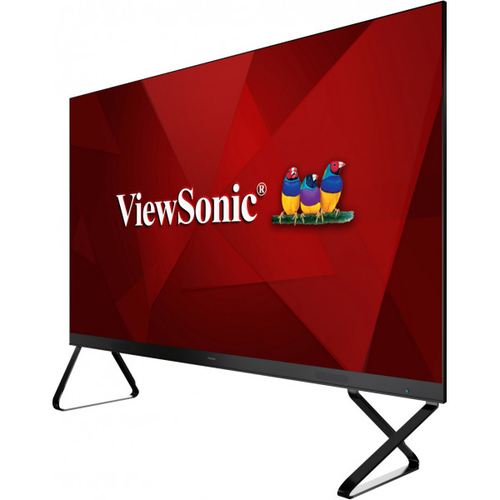

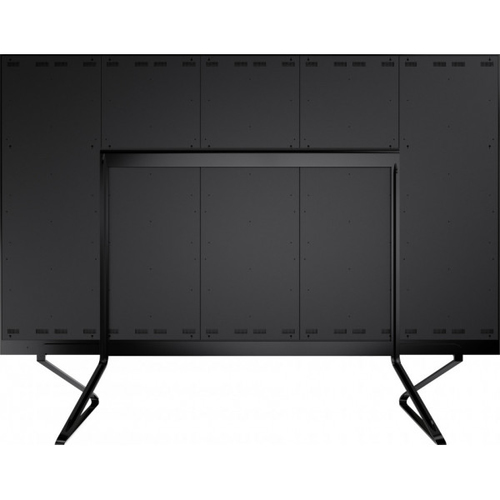

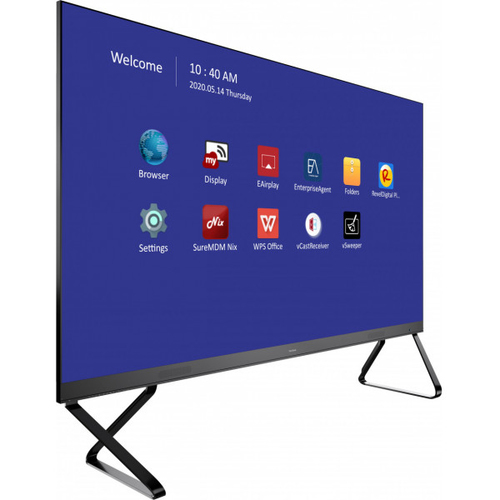

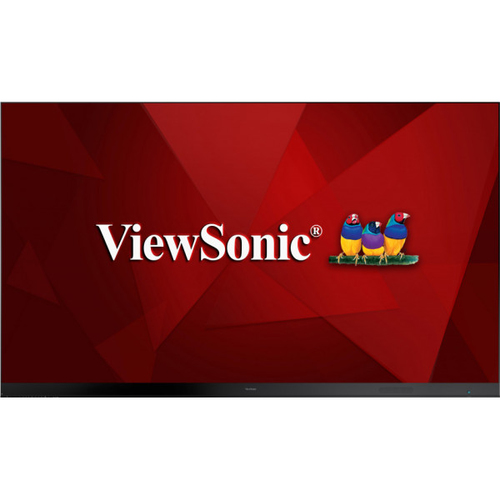

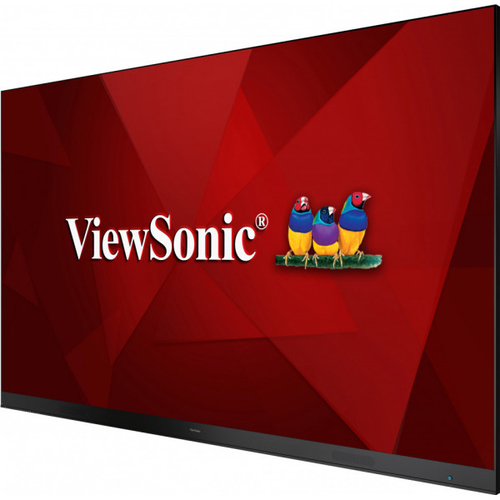

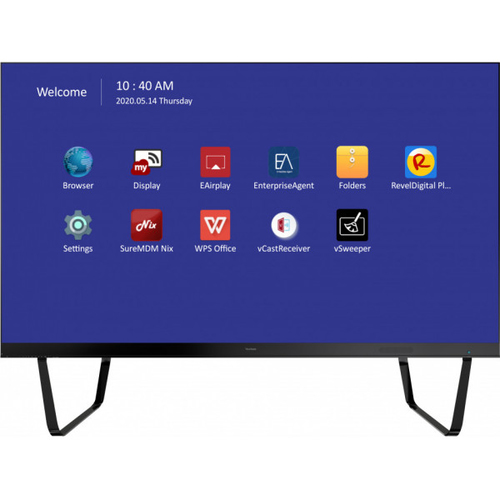

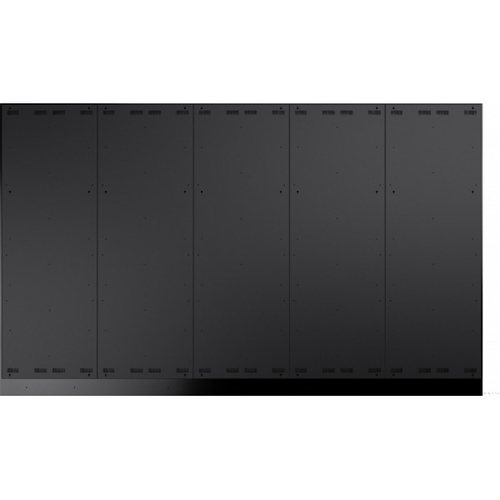

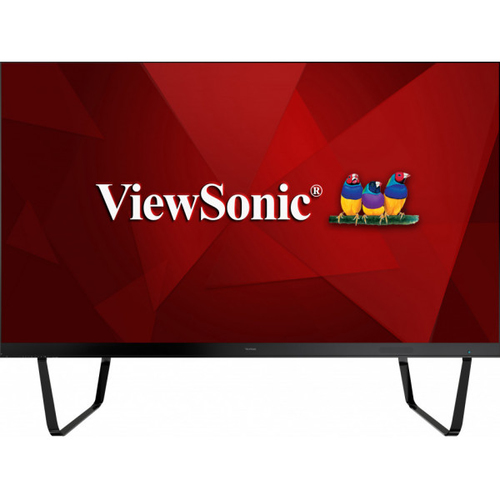

135" Premium AIO Direct View LED Diply -
- Indoor Digital signage flat panel Black
- 3.43 m (135") 1920 x 1080 pixels LED 600 cd/m²
- Direct-LED
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 10 W
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ViewSonic LD135-151 is a premium all-in-one direct view LED commercial display. With a huge 135” screen size, the LD135-151 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 1.5mm fine pixel pitch, 600-nit high brightness, 3,840Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. Integrated ViewBoard Cast screen sharing software (along with optional ViewSonic vCastSender app), enables both on-site and online attendees to participate in video conferences and simultaneously share content. Equipped with twin dual-core processors, 4GB RAM, and 32GB of internal memory, the LD135-151 can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic LD135-151 is also suitable for a wide array of diverse signage applications.
Specifications
Display
- LED backlighting type
- Direct-LED
- Display diagonal
- 3.43 m (135")
- Display technology
- LED
- Display resolution
- 1920 x 1080 pixels
- Display brightness
- 600 cd/m²
- HD type
- Full HD
- Touchscreen
- No
- Contrast ratio (typical)
- 6000:1
- Viewing angle, horizontal
- 160°
- Viewing angle, vertical
- 160°
- Pixel pitch
- 1.5625 x 1.5625 mm
- Active display area (W x H)
- 3000 x 1687.5 mm
- Panel life
- 100000 h
- Horizontal scan range
- 31 - 94 kHz
- Vertical scan range
- 56 - 85 Hz
Ports & interfaces
- HDMI ports quantity
- 3
- HDMI version
- 1.4
- HDMI input ports quantity
- 2
- HDMI output ports quantity
- 1
- DVI port
- No
- USB port
- Yes
- USB ports quantity
- 5
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 10 W
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Product colour
- Black
Performance
- Purpose
- Universal
- HDCP
- Yes
- HDCP version
- 1.4
Power
- Power consumption (typical)
- 2030 W
- Power consumption (standby)
- 0.5 W
- Power consumption (off)
- 0 W
- AC input voltage
- 220-240 V
- AC input frequency
- 50 Hz
Computer system
- Internal storage capacity
- 32 GB
Weight & dimensions
- Width
- 3020.9 mm
- Depth
- 35 mm
- Height
- 1806 mm
- Weight
- 135 kg
Packaging data
- Package width
- 1800 mm
- Package depth
- 745 mm
- Package height
- 850 mm
- Package weight
- 240 kg
Packaging content
- Remote control included
- Yes
- Cables included
- AC
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- Storage relative humidity (H-H)
- 10 - 90%
Logistics data
- Harmonized System (HS) code
- 85285210
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
