ViewSonicInteractive Whiteboards

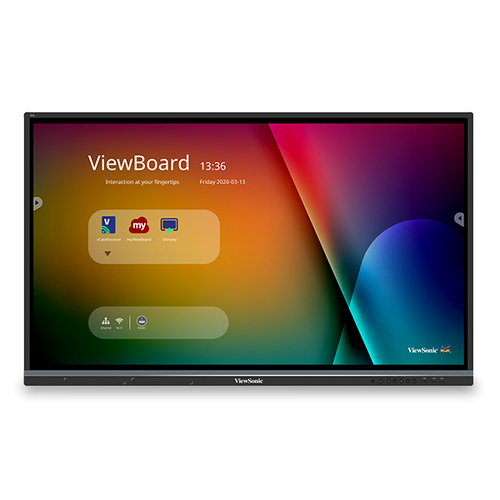

98"ViewBoard 4K Ultra HD Interactive Flat Panel,3840 x 2160 resolution.

Part # IFP9850UPC 766907003581306 lb

Touchscreen 2.49 m (98") LCD Black
Working area: 2172 x 1232 mm
4K Ultra HD 3840 x 2160 pixels
350 cd/m² 1200:1 6 ms
Built-in speaker(s) 24 W
Ethernet LAN

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

ENHANCED TOUCHSCREEN PERFORMANCE

Thanks to ViewSonic ultra-fine touch technology, this interactive display delivers an ultra-smooth, natural handwriting experience. 20-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time. Dual-tip pen support allows users to simultaneously write or draw with two different colors.

IMMERSIVE STEREO SOUND

Designed with dual 10W stereo speakers and a 15W subwoofer, this display combines incredible room-filling sound with amazing screen performance for an immersive multimedia experience.

MYVIEWBOARD™ DIGITAL WHITEBOARDING SOLUTION

myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.

VIEWBOARD CAST CONTENT SHARING SOFTWARE

ViewBoard Cast enables content streaming from mobile devices onto a ViewSonic display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic display. Multi-screen casting allows up to nine client screens to be shown on the ViewSonic display. Popular platforms such as Windows, Mac, iOS-Airplay, Android, and Chrome are supported.

SMARTPORT USB™

The ViewSonic SmartPort USB function allows devices to be plugged into any video source on the display, while still providing simultaneous access to the display’s front-facing USB ports.

ULTRA HD RESOLUTION

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

MYVIEWBOARD MANAGER

myViewBoardTM Manager is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel.

ANDROID 8

Android 8 provides enhanced graphics and an HTML engine for a better video and browsing experience.

SMARTPORT USB™

The ViewSonic SmartPort USB function allows devices to be plugged into any video source on the display, while still providing simultaneous access to the display’s front-facing USB ports.

VERSATILE CONNECTIVITY

An HDMI output, multiple HDMI inputs, and multiple USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.

Specifications

Display

Display diagonal: 2.49 m (98")
Display brightness: 350 cd/m²
Display number of colours: 1.073 billion colours
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Panel type: LCD
LED backlighting type: Direct-LED
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 5000:1
Response time: 6 ms
Touchscreen: Yes
Touch technology: Multi-touch
Touchscreen type: Infrared
Number of simultaneous touchpoints: 20
Touch resolution: 32767 x 32767 pixels
Touch system response time: 10 ms
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Working area: 2172 x 1232 mm

Computer system

Operating system installed: Android
Operating system version: 9
Built-in processor: Yes
Processor architecture: ARM Cortex A73 + ARM Cortex A53
Processor frequency: 1.5 GHz
Processor cores: 4
Maximum internal memory: 16 GB
RAM capacity: 3 GB
RAM type: DDR4

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
Speaker power: 24 W

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100 Mbit/s

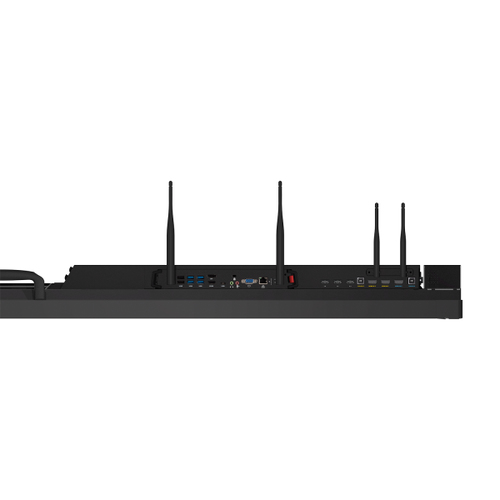

Ports & interfaces

Interface: HDMI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Touch ports quantity: 2
USB 2.0 ports quantity: 3
USB connector type: USB Type-A, USB Type-B
HDMI ports quantity: 3
HDMI version: 2.0
HDMI output ports quantity: 1
RGB ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone connectivity: 2.5 mm
RS-232 ports: 1

Ergonomics

Product colour: Black
VESA mounting: Yes
Panel mounting interface: 800 x 600 mm
Mean time between failures (MTBF): 30000 h
Certification: FCC, cTUVus

Power

Power consumption (typical): 171 W
Power consumption (off): 0.5 W
AC input voltage: 100 - 240 V
Energy efficiency class (legacy scale): A++

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 2245 mm
Depth: 91 mm
Height: 1323 mm
Weight: 101.5 kg

Packaging data

Package width: 2483 mm
Package depth: 376 mm
Package height: 1493 mm
Package weight: 138.8 kg
Quantity per pack: 1 pc(s)

Packaging content

Cables included: AC, HDMI, USB
Mounting kit: Yes
Mounting brackets included: Yes
Quick start guide: Yes

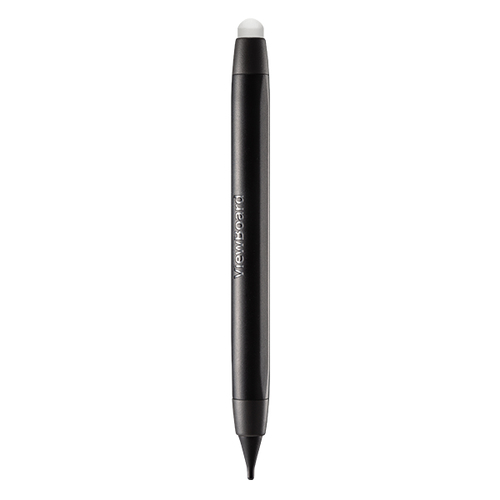

Stylus included: Yes
Bundled software: Basic Annotation Software: myViewBoard Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
