Home/Catalogue/ViewSonic/CDE4312
Drag to turn · 8 views
43" Display, 3840 x 2160 Resolution, 230 cd/m2 Brightness, 16/7 operation rating, built-in Wi-Fi.
- Indoor Digital signage flat panel Black
- 109.2 cm (43") 3840 x 2160 pixels LED 230 cd/m²
- Direct-LED 8 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 10 W
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

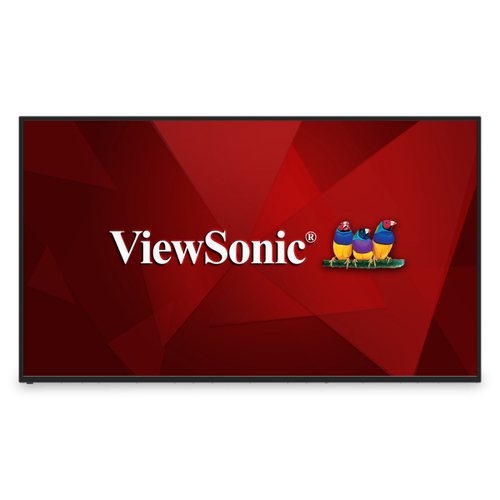

The ViewSonic CDE4312 is a 43” 4K Ultra HD large format wireless presentation display. With features including a razor-sharp resolution of 3840 x 2160, 230-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE4312 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard Cast screen sharing software* (along with the optional ViewSonic vCastSender app), and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with a 1.5GHz Quad-core embedded SoC processor, 2GB RAM, and 16GB of internal memory, the CDE4312 can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic CDE4312 is also suitable for a wide array of diverse signage applications.
ULTRA HD RESOLUTION
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
POWERFUL EMBEDDED SOC PLATFORM
The ViewSonic EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
EMBEDDED LAN AND USB WIRELESS CONNECTIVITY
An integrated RJ45 connection, as well as a removable, integrated USB, provide Wi-Fi capabilities for content streaming.
FREE VIEWBOARD CAST CONTENT SHARING SOFTWARE
ViewBoard Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
REMOTE CONTENT SHARING FROM ANYWHERE
myViewBoard Display is a cloud-based and client-free app that allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.
ALL-IN-ONE SOLUTION
Perfect for conference rooms, huddle spaces and other collaborative environments, this bundle delivers the most useful items businesses need to get up and running with their wireless presentation display. You can quickly install the display with the included wall mount, while the included USB Wi-Fi plug-in module provides a robust and reliable wireless presentation experience.
STREAMLINED DEVICE MANAGEMENT
myViewBoard Manager is an easy-to-use, web-based application that allows you to securely set up, manage and maintain all of your display devices from a centralized dashboard. Cloud-based access allows IT managers to remotely access, monitor and manage devices from anywhere.
USB-C WITH POWER DELIVERY
USB-C connectivity provides up to 15W power delivery for convenient charging of your peripherals and accessories. It can also support DisplayPort 1.2 and USB 2.0 with optional adapters.
AV CONTROL SYSTEM CERTIFIED
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.
RELIABLE 16/7 CONTINUOUS OPERATION
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
INTEGRATED CONTENT MANAGEMENT SYSTEM
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
3-YEAR LIMITED WARRANTY
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Specifications
Display
- LED backlighting type
- Direct-LED
- Display diagonal
- 109.2 cm (43")
- Display technology
- LED
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 230 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 1200:1
- Contrast ratio (dynamic)
- 5000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 1.07 billion colours
- Display diagonal (metric)
- 109.22 cm
- Haze rate
- 2%
- Surface hardness
- 3H
Ports & interfaces
- HDMI ports quantity
- 2
- HDMI version
- 2.0
- HDMI input ports quantity
- 2
- DVI port
- No
- VGA (D-Sub) input ports
- 1
- USB port
- Yes
- USB ports quantity
- 2
- USB version
- 2.0
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 10 W
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 200 x 200 mm
- Anti-glare screen
- Yes
Performance
- Purpose
- Commercial
- Operating hours (hours/days)
- 16/7
Power
- Power consumption (typical)
- 70 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Computer system
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Built-in processor
- Yes
- Processor manufacturer
- ARM
- Processor family
- ARM Cortex
- Processor model
- A53
- Processor frequency
- 1.5 GHz
- Processor cores
- 4
- Internal memory
- 2 GB
- Internal storage capacity
- 16 GB
- Operating system installed
- Android 9.0
Weight & dimensions
- Width
- 972.6 mm
- Depth
- 82.6 mm
- Height
- 566 mm
- Weight
- 6.6 kg
Packaging data
- Package width
- 1041 mm
- Package depth
- 148 mm
- Package height
- 630 mm
- Package weight
- 10.4 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC, HDMI, RS-232
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Technical details
- Sustainability certificates
- ENERGY STAR
- Compliance certificates
- RoHS
