Verbatim 32229 Drag to turn · 12 views
VerbatimMobile Device Chargers

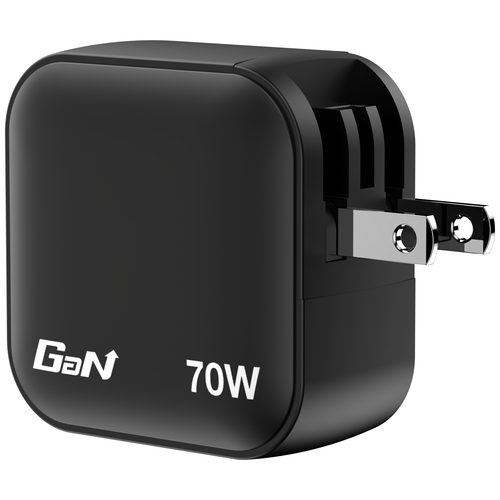

Mini GaN Charger 70W 3 Port US plug with EU and UK adaptors

Part # 32229UPC 023942322290Warranty: 2-year limited warranty0.26 lb

  • 70W mini GaN wall charger with 3 output ports: 2 x USB-C® PD 70W and 1 x USB-A QC 3.0
  • Charges 3 devices simultaneously
  • Integrated GaN technology
  • Supports super-fast charging with USB Power Delivery 3.0, PPS and Quick Charge 4+
  • Programmable Power Supply (PPS) technology delivers the right amount of power needed for the ideal charge

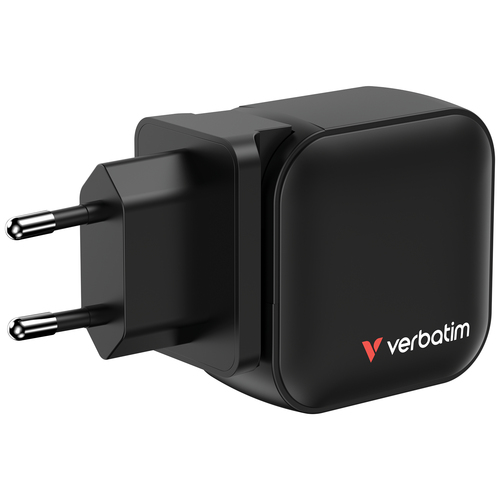

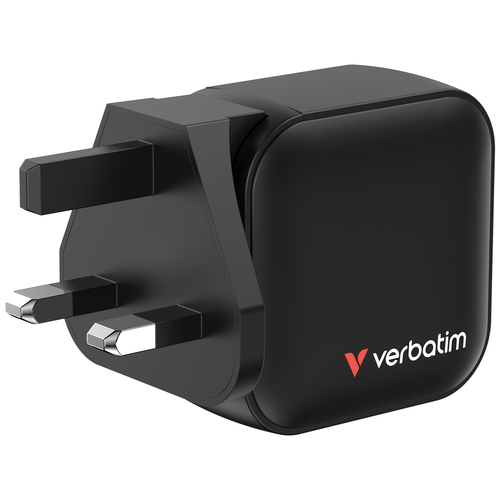

  • Multi-plug UK and EU included
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

3-in-1 Charging

Verbatim's 70W Mini GaN Charger combines two USB-C® and one USB-A port into a compact, pocket-sized design. Capable of charging up to 3 devices simultaneously, the USB-C ports support PD 3.0 (Power Delivery) at 70W while the USB-A port supports QC 3.0. Ideal for the office, home or travelling to power your tablet, smartphone, gaming devices, and more.

With its foldable US prongs and replaceable EU and UK plugs, it’s the ultimate travel companion.

01

Advanced GaN Technology

Galliam Nitride (GaN) technology delivers high-powered, fast, efficient charging, and generates less heat. GaN chargers are smaller and lighter than traditional silicon-based chargers, making them ultra-portable and ideal for travel.

Verbatim Mini GaN Chargers feature an advanced chipset that allows for an even more compact design than regular GaN chargers without sacrificing power. This innovative technology not only reduces the charger's size but also minimises heat generation, delivering safer and more efficient charging in a portable form factor.

02

Safe and Reliable

The Mini GaN charger is made with high-quality, flame-resistant materials and features four safety protection systems, including over-current protection, over-voltage protection, short circuit protection, and over-temperature protection to ensure your safety while charging.

Specifications

Performance

Charger compatibility
Universal
Power source type
AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB Type-C ports quantity
2
Fast charging
Yes
Fast charging technology
Quick Charge 3.0
Charger type
Indoor
Number of simultaneously connected devices (max)
3
Programmable power supply (PPS)
Yes
USB Power Delivery (USB PD)
Yes
Operating principle
Contact
USB Power Delivery revision
3.0
USB Power Delivery up to
70 W
Power protection features
Over current, Over voltage, Overheating, Short circuit

Design

Product colour
Black
Housing material
Polycarbonate (PC)
LED indicators
Yes
Plug and Play
Yes
Gallium nitride (GaN) transistors
Yes

Power

Input voltage
100 - 240 V
Input frequency
50/60 Hz
Input current
1.8 A
Maximum power
70 W
Maximum output voltage
20 V
Minimum output voltage
3.3 V
Port 1 output power
70 W
Port 2 output power
70 W
Port 3 output power
30 W
Output current (5V)
3 A
Output current (9V)
3 A
Output current (12V)
3 A
Output current (15V)
3 A
Output current (20V)
3.5 A
Port 1 output current
3.5 A
Port 2 output current
3.5 A
Port 3 output current
3 A

Weight & dimensions

Width
31 mm
Depth
54 mm
Height
54 mm
Weight
120 g

Packaging data

Package width
47 mm
Package depth
110 mm
Package height
123 mm
Package weight
230 g
Package type
Box

Packaging content

Quantity per pack
1 pc(s)
AC adapter included
Yes
Included power plug types
EU, UK, US

Logistics data

Warranty period
2 year(s)
Master (outer) cases per pallet layer
8 pc(s)
Layers per pallet
4 pc(s)

Other features

Gross weight of outer carton
11520 kg
Quantity inner carton
10 pc(s)
Quantity outer carton
40 pc(s)
Inner carton dimensions (W x D x H)
255 x 265 x 130 mm
Outer carton dimensions (W x D x H)
270 x 560 x 290 mm
User guide
Yes
