TP-LinkNetwork Terminals/Units

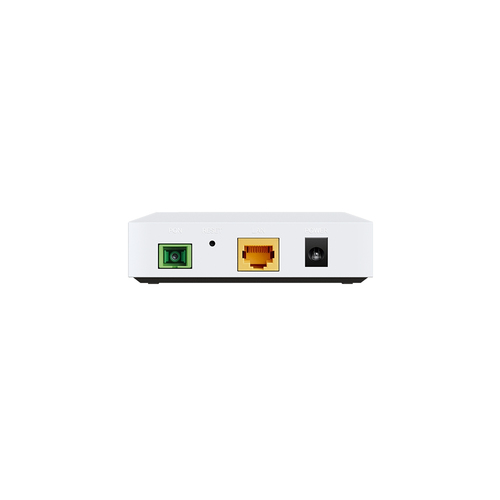

1-Port Gigabit XPON Terminal
- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
- XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
- Durability: Intelligent power-saving method
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1-Port
01
Gigabit XPON Terminal
02
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of up
to 2.488 Gbps downstream, 1.244 Gbps upstream.
03
Make
04
Fiber-to-the-Home Yours
TP-Link’s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.
05
Gigabit Internet Access
One PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
06
Ease of Use
Quick and hassle-free installation
Specifications
Design
- Product type
- Optical network terminal (ONT)
- Product colour
- White
- LED indicators
- Yes
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u
- ITU standards
- G.984.1, G.984.3, G.984.4
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Upstream data rate
- 1244 Mbit/s
- Downstream data rate
- 2488 Mbit/s
- Transmission distance (max)
- 20 km
Management features
- Web-based management
- Yes
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
Ports & interfaces
- Fiber ports quantity
- 1
- Fiber optic connector
- SC/APC
- Ethernet LAN (RJ-45) ports
- 1
- DC-in jack
- Yes
Power
- Output voltage
- 9 V
- Output current
- 0.6 A
Sustainability
- Sustainability compliance
- Yes
Certificates
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 95 mm
- Depth
- 75 mm
- Height
- 29.3 mm
Packaging content
- AC adapter included
- Yes
- Quantity per pack
- 1 pc(s)
- Quick start guide
- Yes
