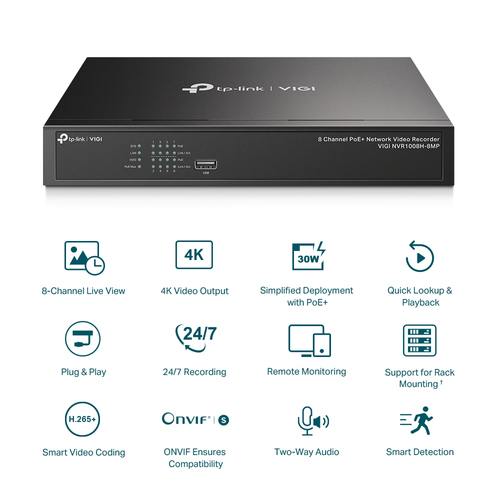

VIGI 8 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
- 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Security Never Shuts Down
VIGI NVR1008H-8MP 8 Channel PoE+ Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.

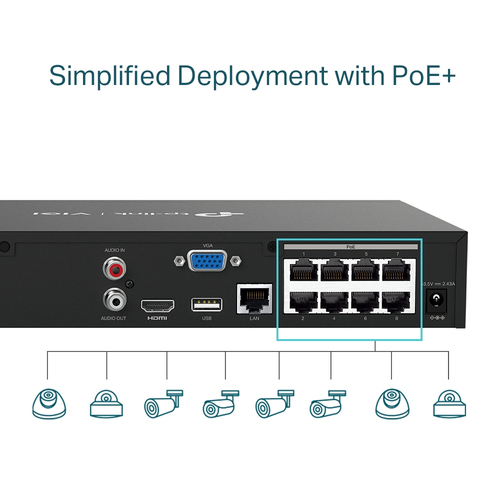

Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.
Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever.

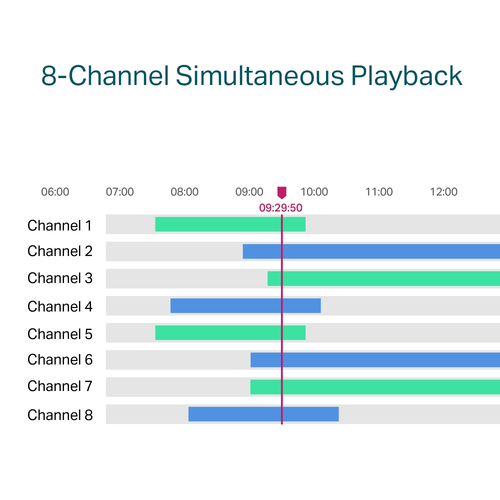

8-Channel Simultaneous Playback
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

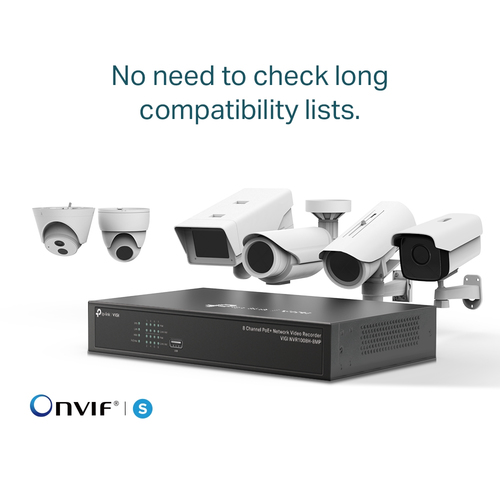

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Flexible installation gives you more convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.
Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
One system. Full security.
Run your business with peace of mind.
Specifications
Performance
- Video input channels
- 8 channels
- Alarm input channels
- 8
- Alarm output channels
- 1
- Video recording modes
- 720p, 1080p, 2160p
- Maximum resolution
- 3840 x 2160 pixels
- Supported resolutions
- 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
- Resolution at capture speed
- 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
- Video formats supported
- H.264, H.264+, H.265, H.265+
- Input bandwidth
- 80 Mbit/s
- Output bandwidth
- 60 Mbit/s
Wireless LAN features
- Wi-Fi
- No
Hard drive
- HDD capacity
- 0 GB
- Maximum storage capacity
- 10 TB
- HDD interface
- SATA

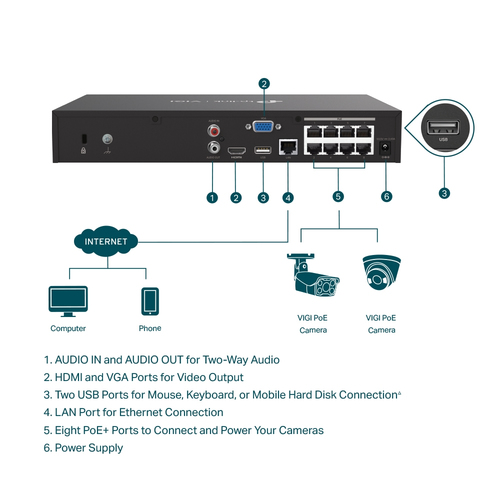

Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- HDMI output
- Yes
- HDMI ports quantity
- 1
- VGA (D-Sub) output ports
- 1
- USB 2.0 ports quantity
- 2
- Audio RCA inputs
- 1
- Audio RCA outputs
- 1
- Supported network protocols
- TCP/IP, DHCP, DNS, NTP, UPnP
Features
- LED indicators
- Yes
- Product colour
- Black
Power
- Power consumption (typical)
- 4.82 W
- Output current
- 2.43 A
- Output voltage
- 53.5 V
- Total Power over Ethernet (PoE) budget
- 119 W
Operational conditions
- Operating temperature (T-T)
- -10 - 55 °C
Weight & dimensions
- Width
- 294 mm
- Depth
- 180 mm
- Height
- 44 mm
- Package width
- 250 mm
- Package depth
- 400 mm
- Package height
- 80 mm
- Package weight
- 2.1 kg
More in Surveillance Video Recorders
TP-Link16 Channel Network Video RecorderSPEC: H.265+/H.265/H.264+/H.264, Up tVIGINVR1016H
TP-Link8 Channel PoE+ Network Video Recorder Built in 2TB HDDSPEC: H.265+/H.2VIGINVR2008H-8MP-2TB
TP-Link8 Channel PoE+ Network Video RecorderSPEC: H.265+/H.265/H.264+/H.264, VIGI-NVR2008H-8MP
TP-LinkVIGI 8 Channel Network Video Recorder. SPEC: H.265+/H.265/H.264+/H.264VIGI NVR1008H
TP-Link16 Channel Network Video RecorderSpec:4K HDMI Video Output 16MP DecodiVIGI NVR2016H

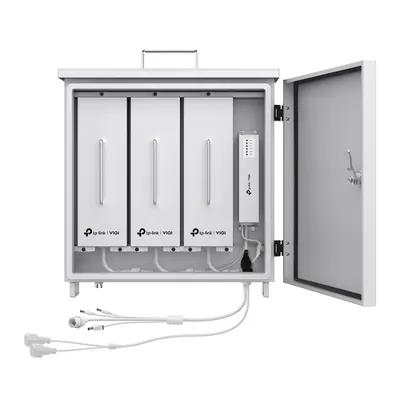

TP-LinkVIGI Intelligent Power Supply System Without Solar Panel Spec: 31.2Ah VIGI PS30UbiquitiUbiquitiCompact UniFi Protect NVR Kit, includes 1 UniFi Protect NVR Instant wiUNVR-INSTANT-KITUbiquitiUbiquitiUbiquiti UNVR-Pro Enterprise network video recorder, can provide up toUNVR-Pro
