TP-LinkSolar Panels

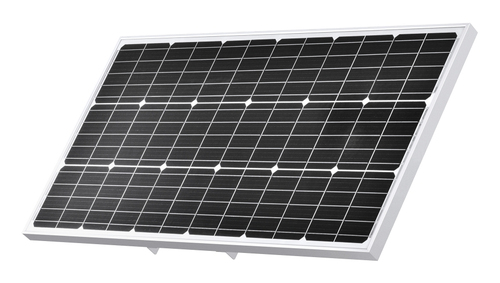

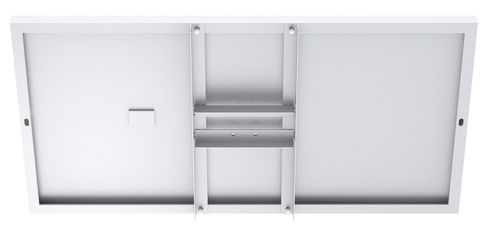

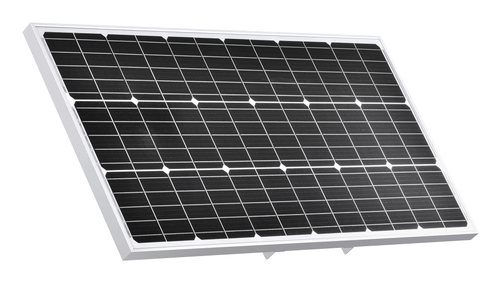

VIGI 90W solar panel Monocrystalline silicon
- Industrial-Grade, Grade-A Monocrystalline Silicon Solar Panel With 90W Capability, and 25+ Years Lifespan
- Conversion Efficiency Increased by 21.6%*
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- IP67 Weatherproof with Simple Installation
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Power
- Rated power
- 90 W
- Solar panel voltage
- 18 V
Features
- Solar cell type
- Monocrystalline silicon
- Connector type
- MC4
- Product colour
- Black, Silver
- Frame
- Yes
- Tilt angle range
- 5 - 55°
- Water-resistant
- Yes
- International Protection (IP) code
- IP67
- Tilt adjustment
- Yes
Packaging content
- Manual
- Yes
Packaging data
- Package width
- 1120 mm
- Package depth
- 600 mm
- Package height
- 135 mm
- Package weight
- 8.9 kg
Technical details
- Compliance certificates
- CE, EAC
Operational conditions
- Operating temperature (T-T)
- -30 - 60 °C
- Operating relative humidity (H-H)
- 10 - 90%
Weight & dimensions
- Width
- 516 mm
- Depth
- 998 mm
- Height
- 30 mm
- Weight
- 5.6 kg
Downloads
More in USB Cables

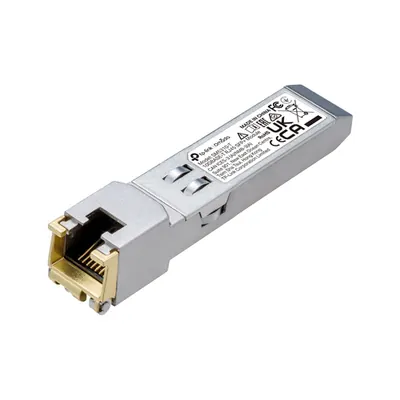

TP-LinkOmada 10GBASET RJ45 SFP+ ModuleSPEC: 10Gbps RJ45 Copper Transceiver, PSM5310-T
