16 Channel Network Video RecorderSPEC: 16Channel, 320Mbps Incoming Bandwidth, 320Mbps Outgoing

Part # VIGI NVR4016HUPC 81014282205311.95 lb

16-Channel Live View and 4K HDMI Video Output
Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
16-Channel Synchronous Playback
320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
4× SATA Interfaces and 1 Up to 16 TB
H.265+ Compression Technology

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Security Never Shuts Down

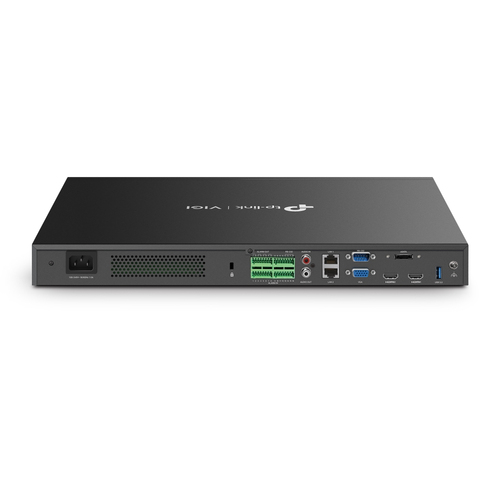

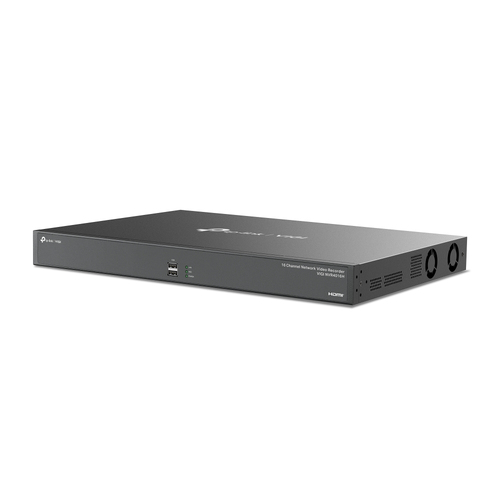

16 Channel Network Video Recorder

Feature-Packed Ports for SMB Surveillance

Dual Ethernet Ports Design

Multi-Address Mode

Allows for the implementation of two different gateways

Network Fault-Tolerance

Creates a safeguard or redundancy for your data

Port Aggregation

Realizes bandwidth stack and mutual backup

Auto Initialize for Quick Configuration

Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.

Specifications

Performance

Video input channels: 16 channels
Alarm input channels: 16
Alarm output channels: 4
Number of simultaneously playbacked channels: 16 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video motion detection: Yes
Video loss detection: Yes
Audio formats supported: G.711, G.711u, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Backup function: Yes
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth: 320 Mbit/s
Output bandwidth: 320 Mbit/s
Recording modes: Manual, Schedule
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 4
Maximum storage capacity: 64 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,100,1000 Mbit/s
HDMI ports quantity: 2
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
eSATA ports quantity: 1
eSATA: Yes
RS-232 ports: 1
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Features

Rack mounting: Yes
Reset button: Yes
Buzzer off: Yes
Product colour: Black

Power

Power consumption (max): 45 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output current: 1.5 A

System requirements

Mobile operating systems supported: Android, iOS
Browser supported: Chrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 90%

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm
Weight: 4 kg
Package width: 440 mm
Package depth: 528 mm
Package height: 100 mm
Package weight: 5 kg

Packaging content

Packaging content: - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet
