TP-LinkNetwork Transceiver Modules

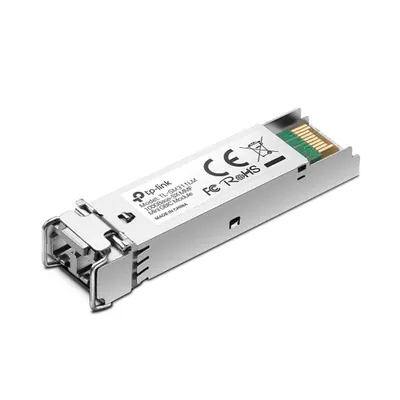

Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- mini-GBIC
- Single-mode fiber (SMF) supported
- Yes
- Multi-mode fiber (MMF) supported
- No
- Fiber optic connector
- LC
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- SFP transceiver standard
- LX
- Maximum transfer distance
- 20000 m
- Wavelength
- 1310 nm
- Networking standards
- IEEE 802.3z
- Fiber ethernet cabling technology
- 1000BASE
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-Plug support
- Yes
- Hot-swap
- Yes
- Brand compatibility
- MSA Compliant
Power
- Input voltage
- 3.3 V
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC)
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 55.4 mm
- Depth
- 14.6 mm
- Height
- 12.9 mm
Packaging content
- Quantity per pack
- 1 pc(s)
- Manual
- Yes
Packaging data
- Package width
- 38 mm
- Package depth
- 207 mm
- Package height
- 38 mm
- Package weight
- 110 g
Logistics data
- Harmonized System (HS) code
- 85369010
Downloads
