TP-LinkGateways/Controllers
Omada Hardware Controller
- Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.*
- 2× 10GE SFP+ Slots, 4× GE RJ45 Ports, and 2× USB 3.0 Ports
- Redundant power supplies offer a reliable networking architecture
- Free cloud access with the Omada app or Web UI from anywhere, anytime
- On-premises manages to locally monitor and manage devices
- The easy-to-use dashboard and real-time network topology make network monitoring easy
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.
Specifications
Design
- Product colour
- Grey
- LED indicators
- Yes
Performance
- Control display unit
- No
- Built-in processor
- Yes
- Internal memory
- 8 MB
- Internal memory type
- DDR4
- SSD capacity
- 32 GB
- Flash memory
- 4 MB
Network
- Ethernet LAN data rates
- 1000,10000 Mbit/s
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of console ports
- 1
- Ethernet LAN (RJ-45) ports
- 4
- DC-in jack
- Yes
- SFP+ ports quantity
- 2
Management features
- Management platform
- Omada App
- Performance management
- • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients
- Reset button
- Yes
Power
- Input voltage
- 100 - 240 V
- Input frequency
- 50/60 Hz
Weight & dimensions
- Width
- 440 mm
- Depth
- 180 mm
- Height
- 44 mm
Packaging content
- Cables included
- LAN (RJ-45), Power
- Quick installation guide
- Yes
- Packaging content
- • Omada Hardware Controller OC400 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Sustainability
- Sustainability compliance
- Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
More in Monitoring & Diagnostics

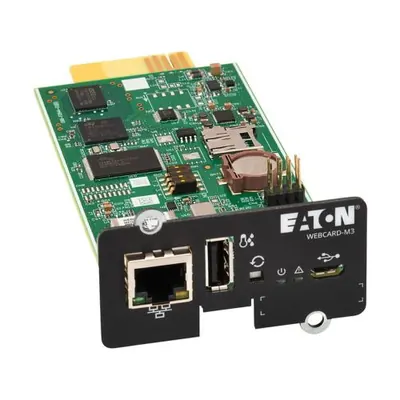

Tripp LiteTripp Lite series WEBCARD-M3 Network Management Card for Select UPS SyWEBCARD-M3UbiquitiUbiquitiThe UniFi Protect Smart Sensor is a battery-operated smart multi-sensoUP-SenseTripp LiteTripp LiteEaton Tripp Lite Series WEBCARDLXE Network Management CardWEBCARDLXETripp LiteTripp Lite8-Port Console Server with Dual GB NIC, 4G, Flash & 4 USB PortsB093-008-2E4UTripp LiteTripp Lite8-Port Console Server Built-In Modem Dual GbE NIC Flash Dual SIMB093-008-2E4U-MTripp LiteTripp Lite8-Port Console Server Cellular Gateway Dual GB NIC & SIM, 4G LTEB093-008-2E4U-V
