TP-LinkBridges & Repeaters

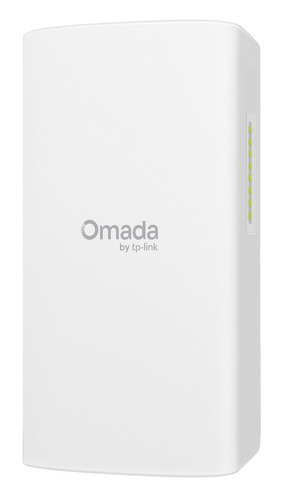

Omada Flex Bridge 5 Network bridge 867 Mbit/s White
- <b>Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging:</b> Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.
- <b>Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles:</b> Ideal for extending networks across buildings and remote locations.

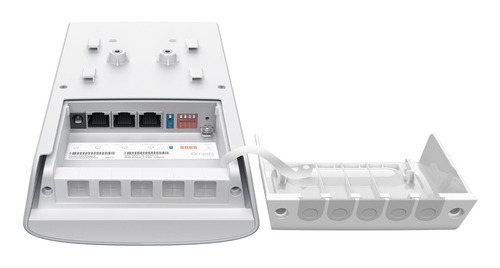

- <b>Powering Surveillance with 2 x PoE Out Ports:</b> Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
- <b>Role & DIP Switches for Simple Pairing:</b> Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.

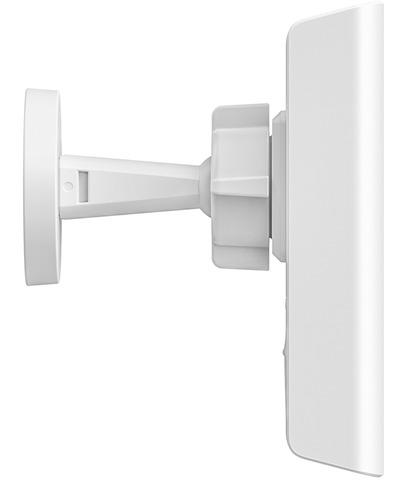

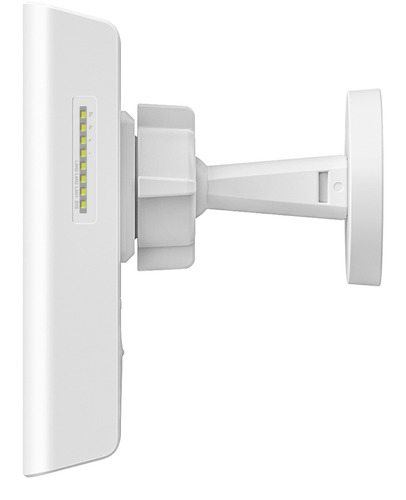

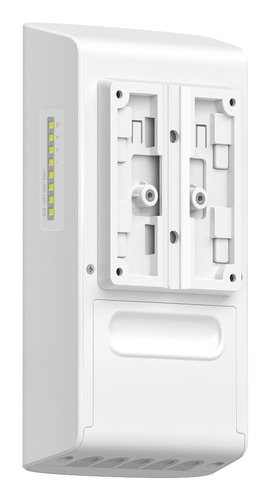

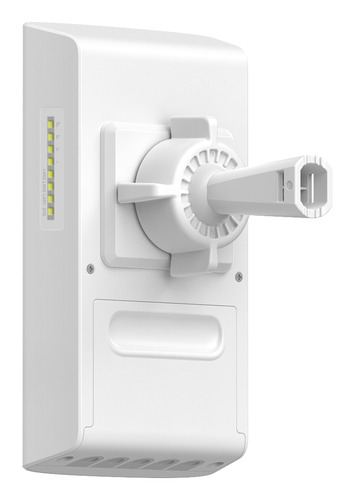

- <b>Easy Alignment with Ball-Joint & Versatile Installation:</b> Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
- <b>Industry-Leading IP66 Weatherproof:</b> IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge
01
Role & DIP Switches for Simple Pairing
Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
Versatile Power Management: Integrated Edge
02
Power for Any Scenario
Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible
power supply via a PoE switch, the included passive PoE adapter, or solar power.
Specifications
Data transmission
- Maximum data transfer rate
- 867 Mbit/s
- Maximum transfer distance
- 5000 m
Antenna
- Antenna design
- Internal
- Antenna type
- 2x2
- Antenna gain level (max)
- 17 dBi
Wireless LAN features
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max)
- 867 Mbit/s
- Frequency band
- 5 GHz
Network
- Ethernet LAN
- Yes
- Ethernet LAN interface type
- Gigabit Ethernet
- Networking standards
- IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac
- Cabling technology
- 10/100/1000Base-T(X)
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 3
Security
- Security algorithms
- SNMP, SSH
Management features
- Web-based management
- Yes
Features
- Product type
- Network bridge
- Mounting type
- Pole
- Product colour
- White
- LED indicators
- Power
- Reset button
- Yes
- International Protection (IP) code
- IP66
- Network Time Protocol (NTP) client
- Yes
Power
- Power source type
- DC, PoE
- DC input voltage
- 12 V
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) voltage
- 24 V
Operational conditions
- Operating temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90%
Certificates
- Certification
- CE, FCC
Weight & dimensions
- Width
- 214.2 mm
- Depth
- 50.8 mm
- Height
- 119.8 mm
- Weight
- 590 g
Downloads
