Gigabit WDM Media Converter

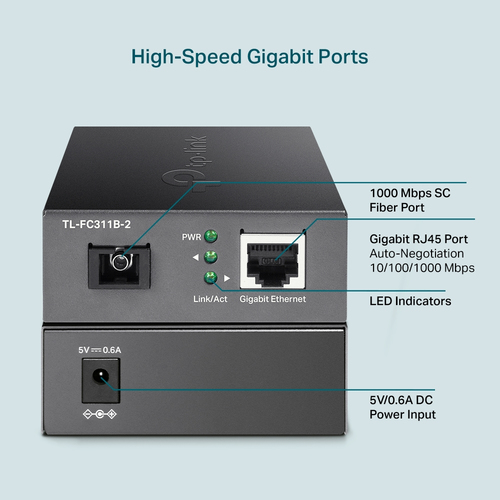

- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
What This Product Does

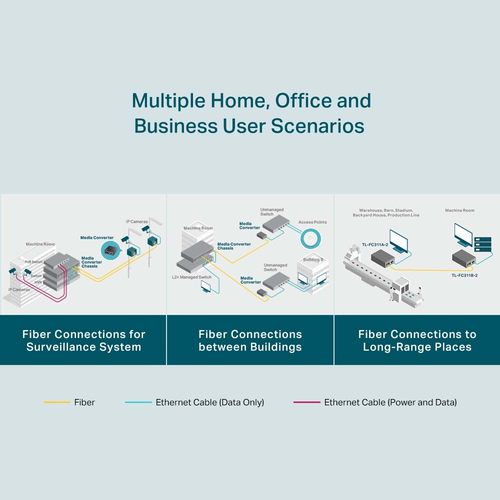

TL-FC311B-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

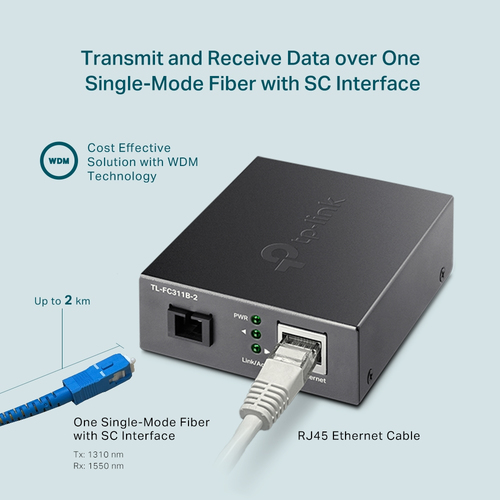

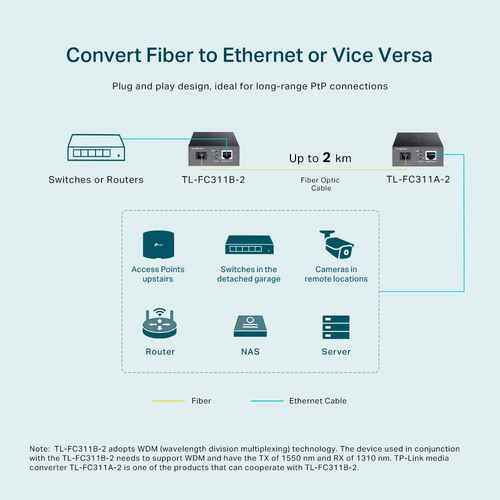

TL-FC311B-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-2 is one of the products that can cooperate with TL-FC311B-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specifications
Network
- Maximum data transfer rate
- 1000 Mbit/s
- Networking standards
- IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Data transfer rate
- 1000 Mbit/s
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Duplex system
- Full, Half
Performance
- Maximum transfer distance
- 2000 m
- Wavelength-division multiplexing (WDM)
- Yes
- Fiber mode structure
- Single-mode
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
Features
- Internal
- No
- LED indicators
- Activity, Link, Power
- Product colour
- Black
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- SC

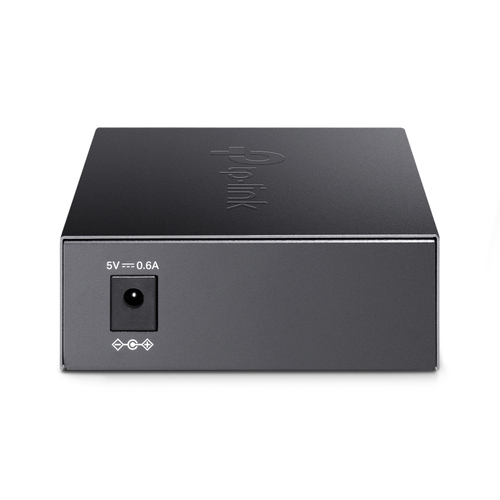

- DC-in jack
- Yes
Power
- Output voltage
- 5 V
- Output current
- 0.6 A
- External power adapter
- Yes
Weight & dimensions
- Width
- 94.5 mm
- Depth
- 73 mm
- Height
- 27 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Packaging content
- AC adapter included
- Yes
- Quick installation guide
- Yes
Packaging data
- Package width
- 165 mm
- Package depth
- 204 mm
- Package height
- 65 mm
- Package weight
- 360 g
Logistics data
- Harmonized System (HS) code
- 85176990
