Home/Catalogue/StarTech.com/WIRC6ASCMRWH1K

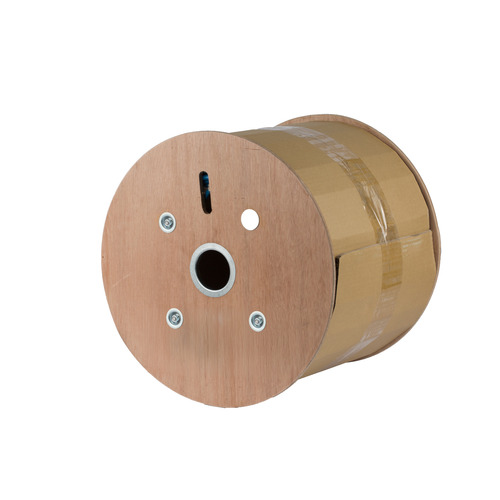

Bulk Cat6A Ethernet Cable, 1000ft, CMR Riser Rated, S/FTP, Pure Bare Copper, 23AWG Solid Wire
- Shielded Cat6A bulk cable is optimized for enterprise 10 Gigabit networks
- High-quality copper conductors enable precise terminations to minimize wear and signal loss
- S/FTP shielding minimizes EMI/RFI and keeps Near End Crosstalk (NEXT) within acceptable limits
- Ideal for riser and in-wall installations where CMR fire rating is required
- Supports IEEE 802.3at Power over Ethernet (PoE+)
- Conforms to ANSI/TIA-568-D for guaranteed Cat6A performance up to 500MHz
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This bulk Cat6a cable meets or exceeds all Category 6a cable specifications to ensure reliable 10Gb network connections. The cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise, providing the perfect solution for fast and safe network connections.
Each cable is tested for up to 500MHz frequency and is more than suitable for 10GBase-T Ethernet networks.
Reliable Cat6a 10 Gigabit Connections
Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
100% copper for outstanding value
Each of our cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
23-gauge wire for high-performance network connection
Cat6a bulk cable made from 23AWG copper is ideal for demanding Ethernet applications, facilitating Power-over-Ethernet and seamless, low-latency data transmissions.
Specifications
Features
- Product colour
- White
- Cable length
- 304.8 m
- Cable standard
- Cat6a
- Cable shielding
- S/FTP (S-STP)
- Connector 1
- No
- Connector 2
- No
- Connector 1 gender
- No
- Connector 2 gender
- No
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Cable shape
- Round
- Conductor type
- Solid
- Conductor material
- Copper
- Cabling technology
- 10GBase-T
- Ethernet interface type
- 10 Gigabit Ethernet
- AWG wire size
- 23
- Data transfer rate
- 10000 Mbit/s
- Frequency
- 500 MHz
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE+
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- 0 - 60 °C
- Operating relative humidity (H-H)
- 0 - 70%
Certificates
- Compliance certificates
- TAA
Weight & dimensions
- Width
- 377 mm
- Depth
- 304900 mm
- Height
- 314 mm
- Outer diameter
- 7.4 mm
- Weight
- 18.2 kg
Packaging data
- Package width
- 380 mm
- Package depth
- 380 mm
- Package height
- 318 mm
- Package weight
- 18.7 kg
- Package type
- Bulk
Logistics data
- Master (outer) case width
- 380 mm
- Master (outer) case length
- 380 mm
- Master (outer) case height
- 318 mm
- Products per master (outer) case
- 1 pc(s)
Technical details
- Shielding type
- Braiding
