Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports~Dual Monitor USB 3.0 Laptop
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

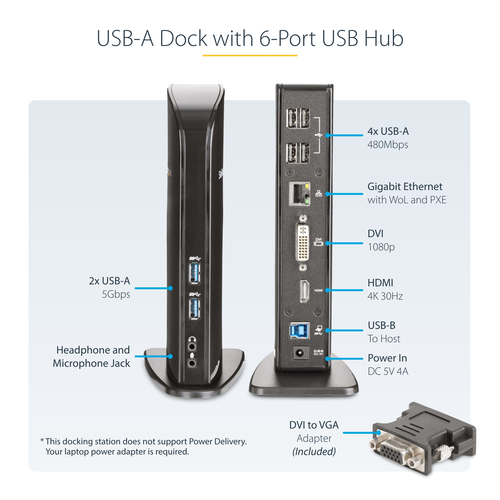

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability

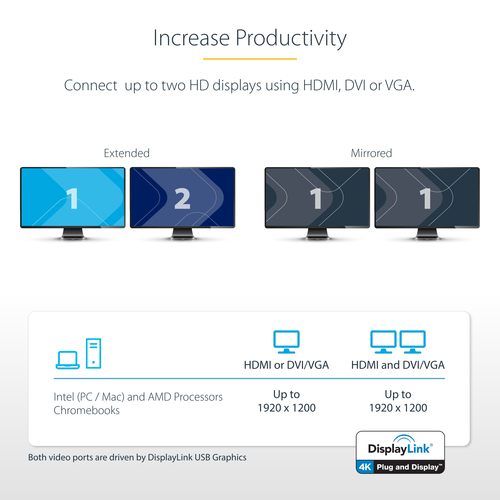

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub

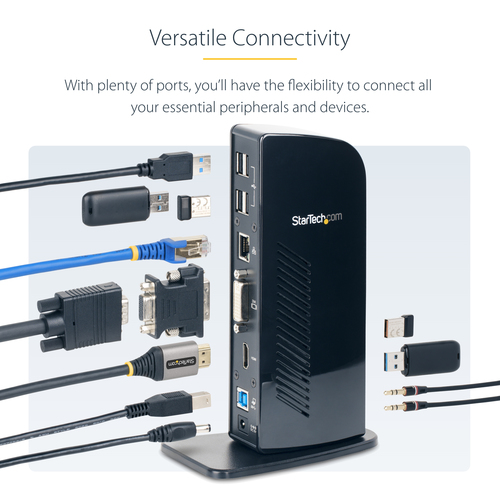

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- DVI-I ports quantity
- 1
- Microphone in
- Yes
- Combo headphone/mic port
- No
- Headphone outputs
- 1
- Headphone connectivity
- 3.5 mm
- USB connector type
- USB Type-A
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
Performance
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 1920 x 1200 pixels
- Product colour
- Black
- LED indicators
- Power, USB
- Housing material
- Plastic
- Brand compatibility
- Any brand
- Certification
- CE, FCC
Power
- AC input voltage
- 100 - 240 V
- Input current
- 0.8 A
- Output voltage
- 5 V
- Output current
- 4 A
- Power consumption (typical)
- 20 W
- Power plug type
- Type C
- Compatible power plug types
- AU, EU, JP, UK, US
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
- Other operating systems supported
- ChromeOS
Operational conditions
- Operating temperature (T-T)
- 10 - 40 °C
- Storage temperature (T-T)
- -10 - 80 °C

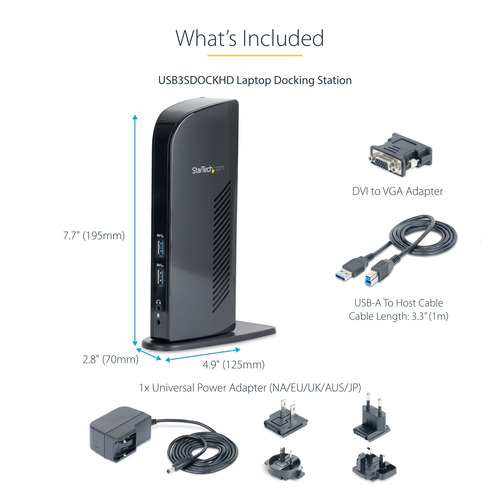

Weight & dimensions
- Width
- 70 mm
- Depth
- 125 mm
- Height
- 195 mm
- Weight
- 370 g
Packaging data
- Package width
- 190 mm
- Package depth
- 273 mm
- Package height
- 109 mm
- Package weight
- 900 g
Packaging content
- Cables included
- USB
- AC adapter included
- Yes
- Manual
- Yes
- Drivers included
- Yes
- Interface adapters included
- DVI-I male - VGA female
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 6 pc(s)
- Master (outer) case width
- 300 mm
- Master (outer) case length
- 400 mm
- Master (outer) case height
- 360 mm
- Harmonized System (HS) code
- 84733020
Other features
- Minimum system requirements
- CPU: i3 Dual core 2.8GHz + RAM: 2GB +
- Chipset
- DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
- Number of microphone inputs
- 1
