4-Port USB-A Hub, 5Gbps, Self-Powered, 2-in-1 USB-C and USB-A Host Cable, 1x BC 1.2 Charging Port
- Instantly add four SuperSpeed USB-A 3.0 ports including one BC 1.2 charging port from a single USB connection
- For connecting keyboards mice flash drives and external storage devices simultaneously
- Includes a fast charge port delivering up to 1.5A (7.5W) supports Charging Downstream Port (CDP) for data and charge and Dedicated Charging Port (DCP) for charging without a host
- 24W max power shared across all ports
- 2-in-1 USB-C / USB-A host cable
- Windows macOS Linux iPadOS Chrome OS Android
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

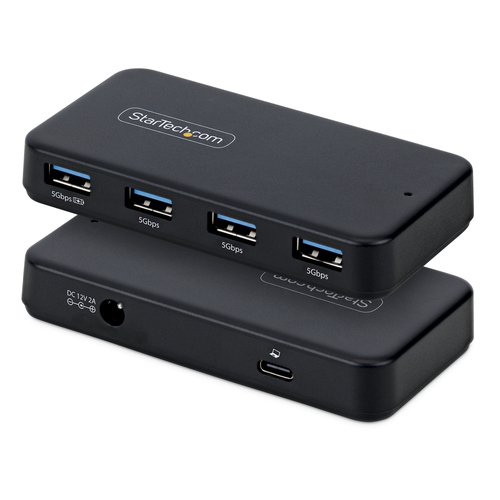

Add four 5Gbps USB-A ports (one with BC 1.2) to your laptop or PC using a single USB-C or USB-A connection
This 4‑port SuperSpeed USB hub lets you instantly add four USB‑A 3.0 ports, including one BC 1.2 charging port, from a single USB connection-ideal for connecting keyboards, mice, flash drives, and external storage devices at the same time.
Fast Charge, Even Without a Host
The dedicated BC 1.2 fast‑charge port delivers up to 1.5A (7.5W) and supports CDP for data and charging or DCP for charging when the hub isn't connected to a computer. A 24W total power budget is shared across all ports for reliable device charging.
Reliable, Self‑Powered Operation

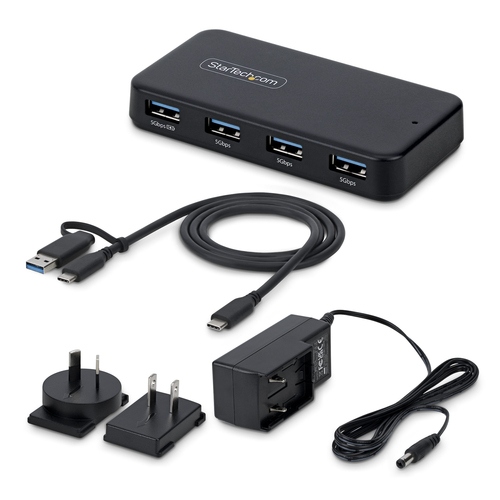

Powered by the included 24W external adapter, the self‑powered hub ensures stable performance even with multiple devices connected. Built‑in overcurrent and overvoltage protection helps reduce device dropouts and protects the host system, while support for Wake on USB and USB event monitoring enhances manageability.
Easy Integration
A removable 2‑in‑1 USB‑C/USB‑A host cable provides flexible connectivity with modern and legacy systems.
Sustainable Design
The hub features a 70% post‑consumer recycled (PCR) plastic enclosure and a 35% PCR TPE jacket, helping reduce environmental impact and support ESG requirements.
Specifications
Ports & interfaces
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Ports quantity
- 4
- DC-in jack
- Yes
Features
- Data transfer rate
- 5000 Mbit/s
- Product colour
- Black
- Housing material
- Plastic
- LED indicators
- Yes
- Cable jacket material
- Thermoplastic elastomer (TPE)
- Cable length
- 1 m
Power
- Power consumption (typical)
- 24 W
- Input voltage
- 100 - 240 V
- Input current
- 0.7 A
- Output voltage
- 12 V
- Output current
- 2 A
Weight & dimensions
- Width
- 52 mm
- Depth
- 101 mm
- Height
- 16.5 mm
- Weight
- 55.9 g
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 200 mm
- Package depth
- 147 mm
- Package height
- 49 mm
- Package weight
- 340.5 g
Packaging content
- Interface adapters included
- USB Type-C female - USB Type-A male
- AC adapter included
- Yes
- Included power plug types
- ANZ, NA, JP
- Cables included
- USB Type-C to USB Type-C
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 90%
Performance
- Mean time between failures (MTBF)
- 117452 h
Logistics data
- Master (outer) case width
- 430 mm
- Master (outer) case length
- 275 mm
- Master (outer) case height
- 325 mm
- Products per master (outer) case
- 20 pc(s)
Other features
- Chipset
- VIA - VL817S
