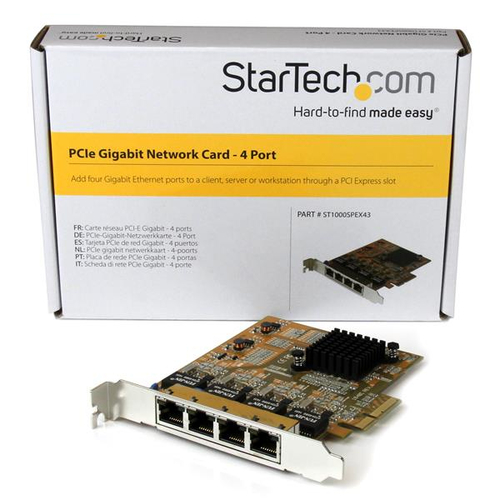

4-Port PCIe Gigabit Network Adapter Card - TAA
- Add four Gigabit Ethernet ports to a client or server or workstation through one PCI Express slot
- 4-Port PCI Express Gigabit network adapter card/Quad-port Gigabit NIC
- PCIe 10/100/1000 Network Card

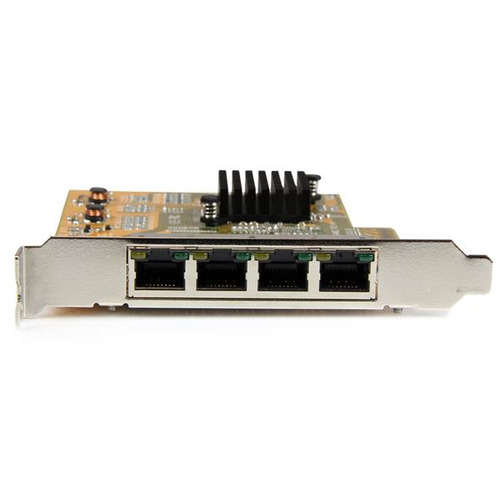

- Cost-effective network connectivity with 4x 10/100/1000 RJ45 ports on one adapter card
- Full-Duplex Flow Control support
- Wake-on-LAN and remote wake-up support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks

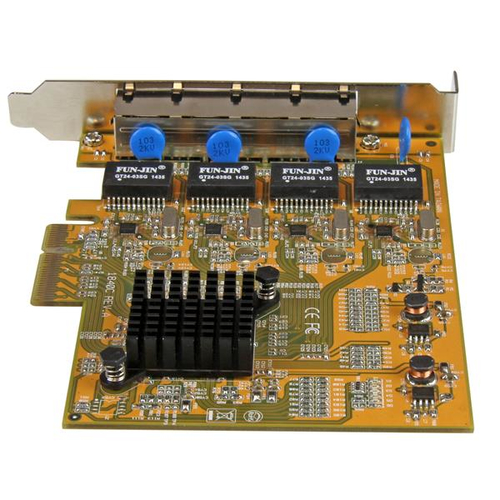

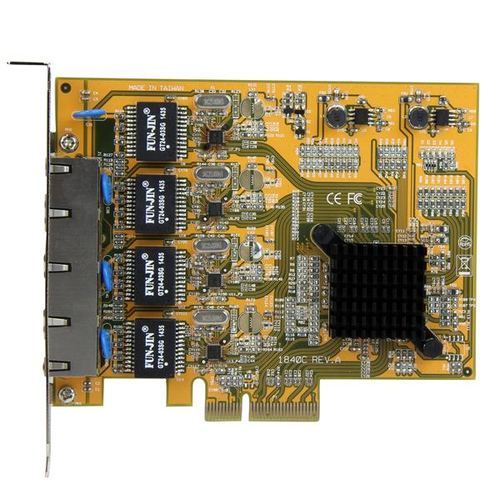

This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- PCI Express
- Interface
- Ethernet
- Ethernet LAN (RJ-45) ports
- 4
Network
- Maximum data transfer rate
- 2000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,1000,100 Mbit/s
- Cabling technology
- 10/100/1000BaseT(X)
- Wake-on-LAN ready
- Yes
- Auto MDIX IEEE
- No
- Full duplex
- Yes
- Jumbo frames support
- Yes
Design
- Internal
- Yes
- Chipset
- Realtek RTL8111G
- LED indicators
- Activity, Link
System requirements
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -40 - 75 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 120 mm
- Depth
- 138 mm
- Height
- 18 mm
- Weight
- 95 g
Packaging data
- Package width
- 145 mm
- Package depth
- 210 mm
- Package height
- 41 mm
- Package weight
- 184 g
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
- Master (outer) case width
- 446 mm
- Master (outer) case length
- 530 mm
- Master (outer) case height
- 338 mm
- Products per master (outer) case
- 50 pc(s)
Other features
- Flow control support
- Yes
- Case colour
- Yellow
More in NIC Adapters PCIe

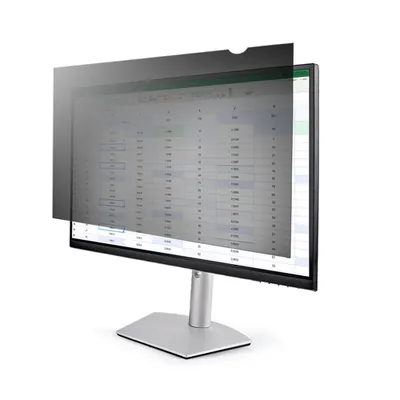

StarTech.comProvides clear viewing angle of 60 (+/-30 ); Computer privacy screen p2269-PRIVACY-SCREEN
StarTech.comProvides clear viewing angle of 60 (+/-30 ); Computer privacy screen p23669-PRIVACY-SCREEN
StarTech.comProvides clear viewing angle of 60 (+/-30 ); Computer privacy screen p2869-PRIVACY-SCREEN

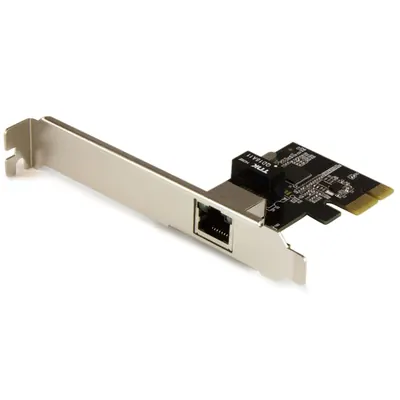

StarTech.comAdd Gigabit Ethernet to a client, server or workstation through a PCI ST1000SPEXI

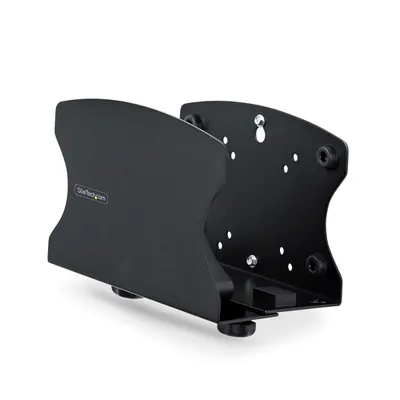

StarTech.comWall desktop mount is made from a heavy-duty powder-coated steel makes2NS-CPU-WALL-MOUNT

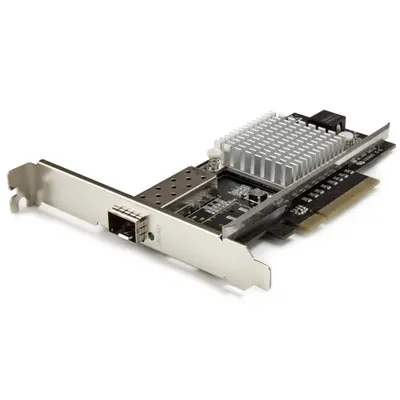

StarTech.com1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM Get advaPEX10000SFPI

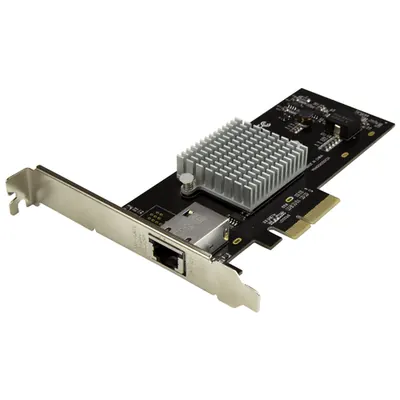

StarTech.com1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip UpST10000SPEXI

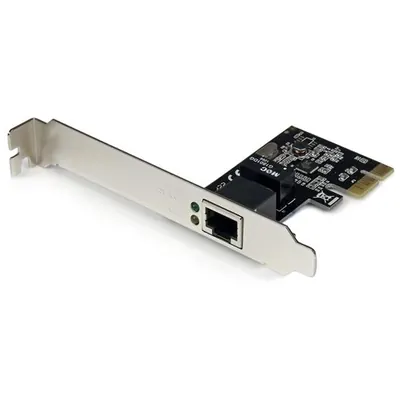

StarTech.com1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - DualST1000SPEX2
