1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for
- CI Express x1 PoE Network Card supports up to 2.5Gbps network speeds and supplies 30W PSE/25.5W PD at 48V DC to the connected device
- Uses a single CAT5e (or later) cable to leverage existing copper cabling without the use of a Power over Ethernet injector
- PoE Network Adapter supports IEEE 802.3af/802.3at (PoE+) | 2.5GBASE-T (802.3bz) | Wake-on-LAN
- SATA and SP4 power connectors for versatile connectivity
- PCIe NIC is Windows and Linux compatible

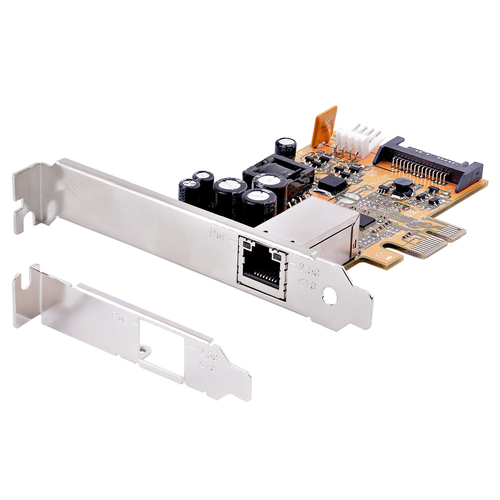

- Full and Low-Profile Brackets included
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T
The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.
Versatile Network PoE Card
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Enhance Existing Hardware

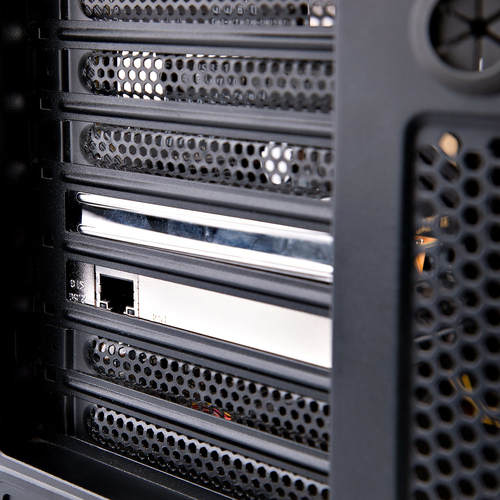

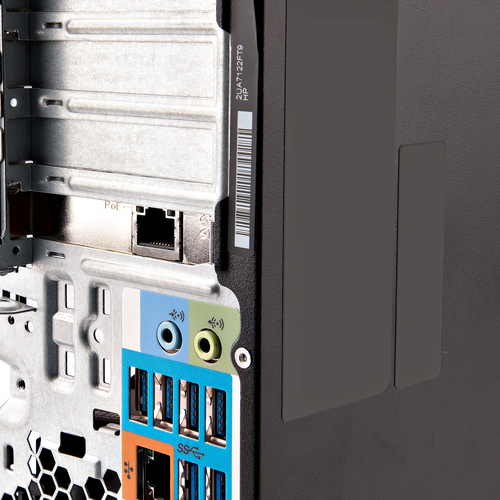

The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.
Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- PCI Express
- Interface
- Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Power over Ethernet (PoE) ports quantity
- 1
- PCI version
- 2.1
- PCI Card form factor
- Full-height (low-profile)
Network
- Maximum data transfer rate
- 2500 Mbit/s
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Wake-on-LAN ready
- Yes
- Auto MDIX IEEE
- Yes
- Full duplex
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 16000
- VLAN tagging
- Yes
- Maximum operating distance
- 100 m
Design
- Component for
- PC/Server
- Internal
- Yes
- Chipset
- Realtek RTL8125B
- LED indicators
- Yes
Power
- Output voltage
- 48 V
System requirements
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 95%
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Width
- 63 mm
- Depth
- 95 mm
- Height
- 15 mm
- Weight
- 220 g
Packaging data
- Package width
- 144 mm
- Package depth
- 212 mm
- Package height
- 41 mm
- Package weight
- 220 g
Packaging content
- Mounting brackets included
- Yes
- Quick installation guide
- Yes
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Master (outer) case width
- 537 mm
- Master (outer) case length
- 454 mm
- Master (outer) case height
- 345 mm
- Products per master (outer) case
- 50 pc(s)
