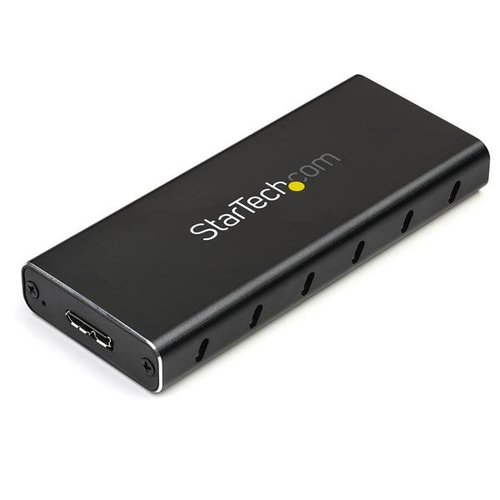

M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) with USB-C Cable - TAA
- Turn your M.2 SATA drive into an ultra-fast and portable storage solution for USB C enabled host including MacBook Pro or Dell XPS
- M.2 SSD Enclosure for SATA SSD
- USB 3.1 Gen 2 (10Gbps)external enclosure with USB C
- M.2 SSD drive enclosure for USB Type-C enabled host (USB-C cable included)
- Broad compatibility with support for the most common M.2 SATA SSDs (Not compatible with M.2 NVMe or AHCI PCI-Express SSDs)
- Works w/Thunderbolt 3 USBC port
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

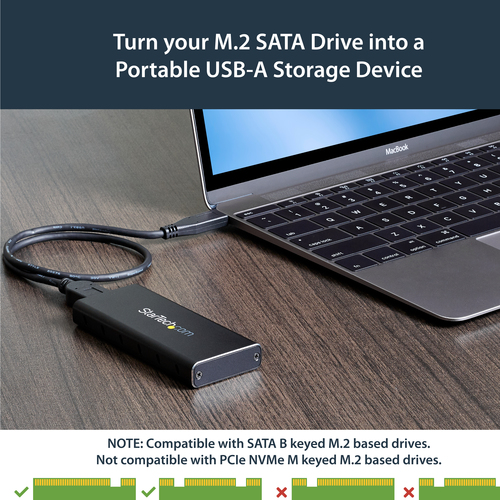

Turn your M.2 SATA drive into an ultra-fast, ultra-portable storage solution for USB-C enabled devices

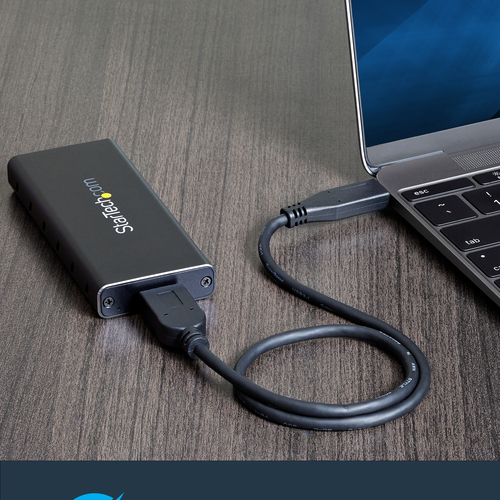

This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C™ port - such as MacBook, Chromebook Pixel™, Dell™ XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.
A truly portable solution

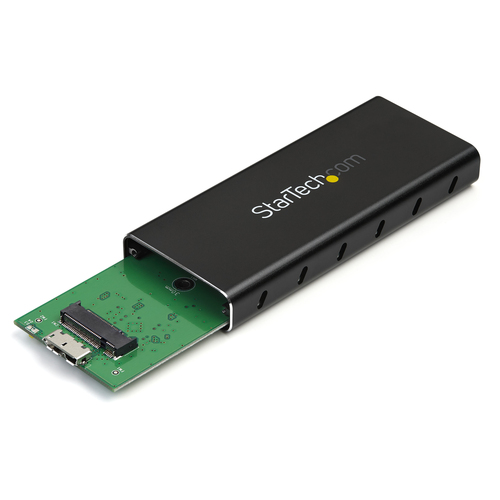

This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.

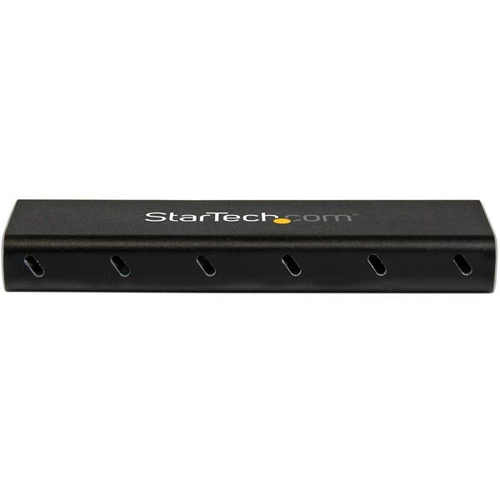

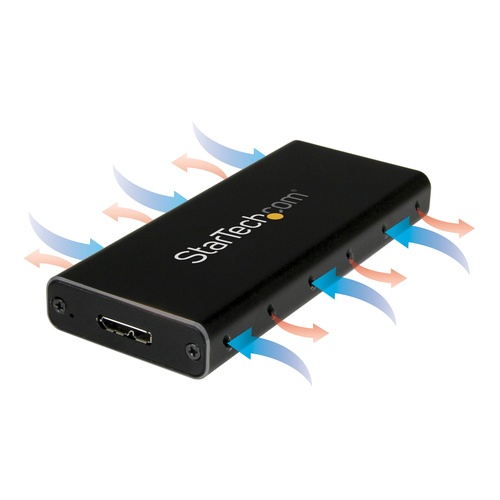

Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.
Maximize the performance of your M.2 SATA SSD
Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.
The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.
Broad compatibility

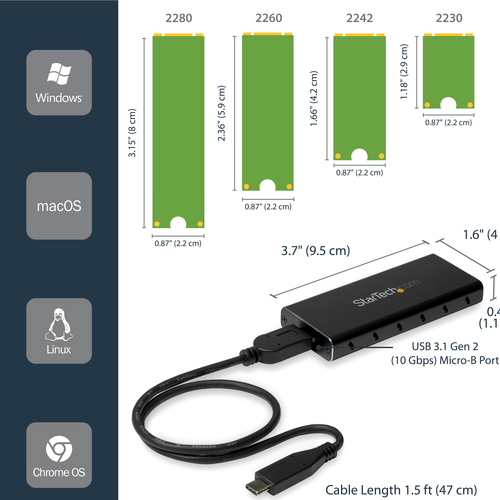

The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).
The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
Storage
- Number of storage drives supported
- 1
- Storage drive size
- M.2
- Supported storage drive interfaces
- M.2
- Supported storage drive lengths
- 80 mm
Ports & interfaces
- USB connectivity
- Yes
- USB version
- 3.2 Gen 2 (3.1 Gen 2)

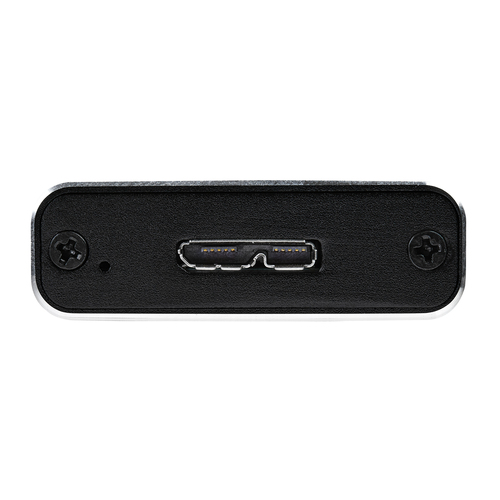

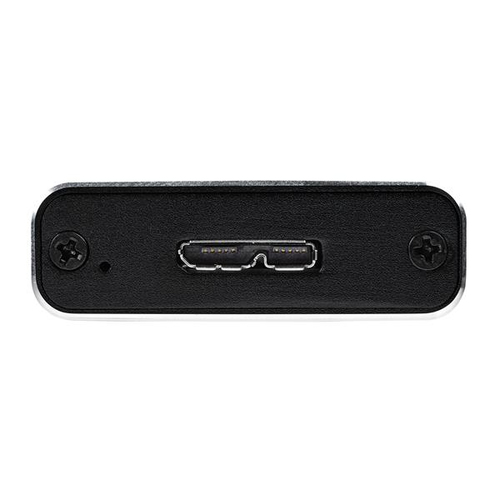

- USB connector type
- Micro-USB B
- USB connector gender
- Female
- USB ports quantity
- 1
- Integrated USB cable
- No
Design
- Product type
- SSD enclosure
- Product colour
- Black, Silver
- Material
- Aluminium
- LED indicators
- Activity, Power
- Certification
- CE, FCC, TAA, REACH
Performance
- Data transfer rate
- 10 Gbit/s
- Chipset
- ASMedia - ASM1351
- UASP support
- Yes
- Mean time between failures (MTBF)
- 1000000 h
- Plug and Play
- Yes
Power
- Power source type
- USB
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 65 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 42 mm
- Depth
- 99 mm
- Height
- 13 mm
- Weight
- 61 g
- Package width
- 161 mm
- Package depth
- 128 mm
- Package height
- 34 mm
- Package weight
- 139 g

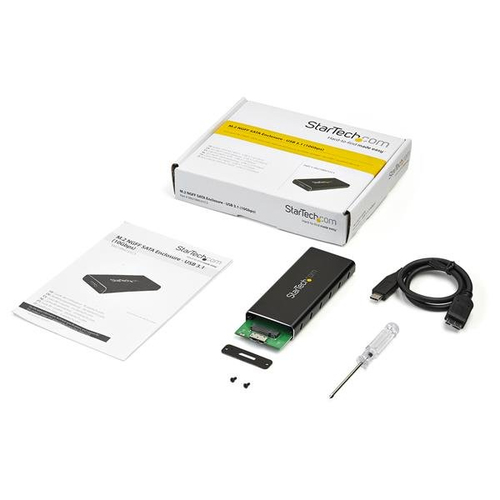

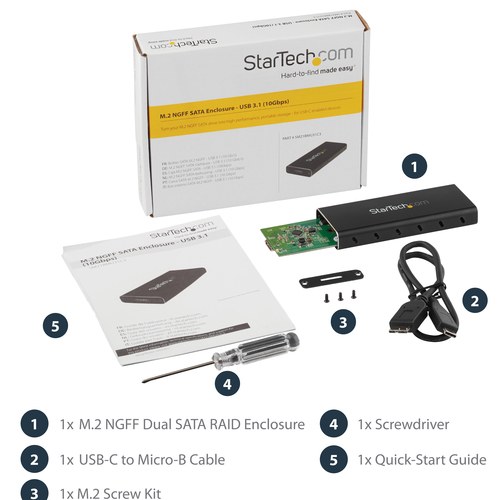

Packaging content
- Cables included
- USB
- Screws included
- Yes
- Screwdriver included
- Yes
- Quick installation guide
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 478 mm
- Master (outer) case length
- 548 mm
- Master (outer) case height
- 330 mm
- Products per master (outer) case
- 100 pc(s)
