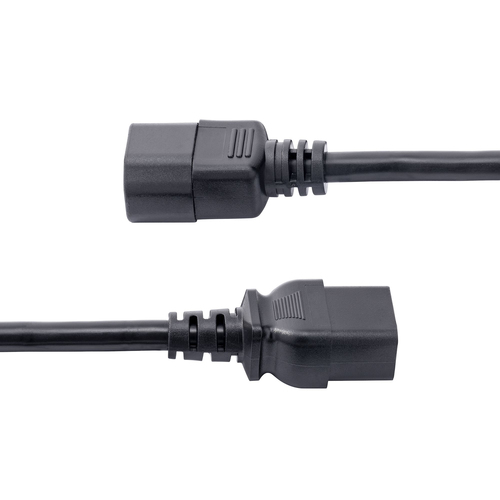

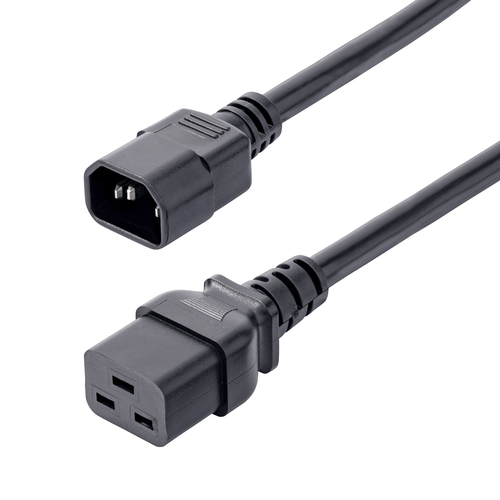

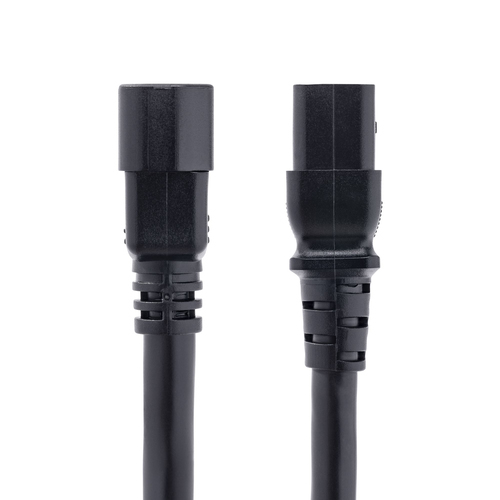

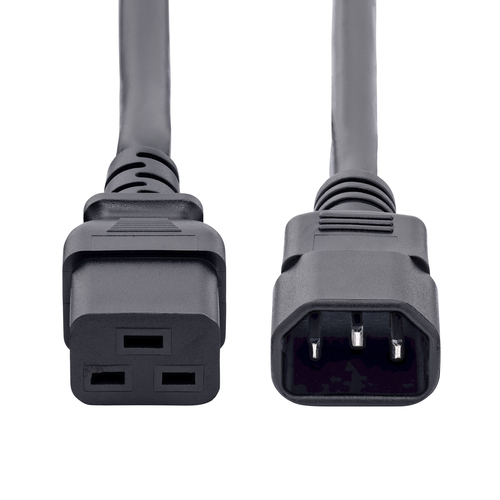

6ft (1.8m) Heavy Duty Power Cord, C14 to C19, 15A 250V, 14AWG, Heavy Gauge PDU Power Cable
- 6ft (1.8m) Heavy Duty Power Cable with IEC 60320 C14 to IEC 60320 C19 connectors
- Rated to carry 250V at 15A (Max)
- Made with UL Listed components
- Durable molded connectors w/strain reliefs
- 100% Copper wire
- Fire Rating: VW-1
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect a server or high-power equipment to a power supply or PDU
The IT Pro's Choice
StarTech.com's power cables are designed by IT professionals. We design our products to meet the technical requirements of wide variety of applications. Our in-house specialists subject our products to multiple rounds of comprehensive testing, designed to emulate real-world operational conditions. Third-party labs test our products to confirm compliance with the latest safety standards.
StarTech.com manufactures standard and heavy-duty power cords, extension cords, medical-grade cords, power splitter cables, and power cords featuring passthrough outlets. These products are produced in various lengths, with a range of connector ends, jacket types, and wire gauges. Our power cable products are chosen by IT professionals worldwide for the following reasons:.
• Certified for performance and safety - Manufactured using UL listed components to meet UL62 and UL817 compliance standards
• Reduced environmental impact and safe disposal by adhering to the rules, regulations, and directives stipulated by REACH and RoHS
• 100% Copper wiring tested for continuity and conductivity, ensuring maximum performance and reliability
• Temperature chamber tested to ensure reliable performance across a range of environmental conditions
Backed for life by StarTech.com, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 1.8 m
- Connector 1
- C14 coupler
- Connector 2
- IEC C19
- Connector 1 standard
- IEC 60320
- Connector 2 standard
- IEC 60320
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- Jacket material
- Polyvinyl chloride (PVC)
- Conductor material
- Copper
- AWG wire size
- 14
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 250 V
- Input current
- 15 A
Operational conditions
- Operating temperature (T-T)
- -20 - 105 °C
- Storage temperature (T-T)
- -20 - 105 °C
- Operating relative humidity (H-H)
- 0 - 65%
Certificates
- Compliance certificates
- RoHS, Trade Agreements Act (TAA)
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Diameter
- 9.3 mm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 113 mm
- Package depth
- 270 mm
- Package height
- 43 mm
- Package weight
- 310 g
Logistics data
- Master (outer) case width
- 497 mm
- Master (outer) case length
- 318 mm
- Master (outer) case height
- 269 mm
- Products per master (outer) case
- 50 pc(s)
