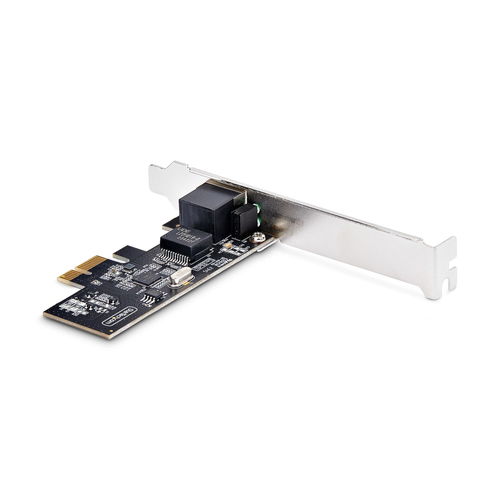

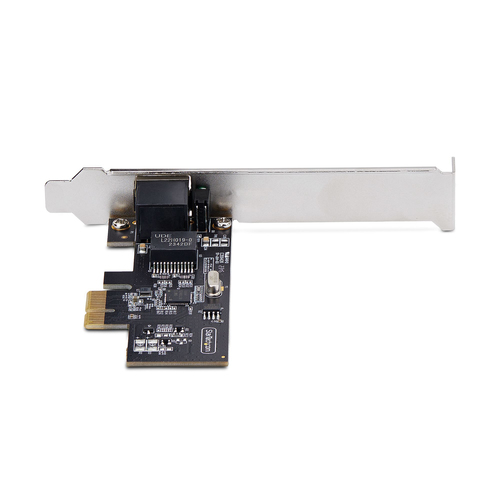

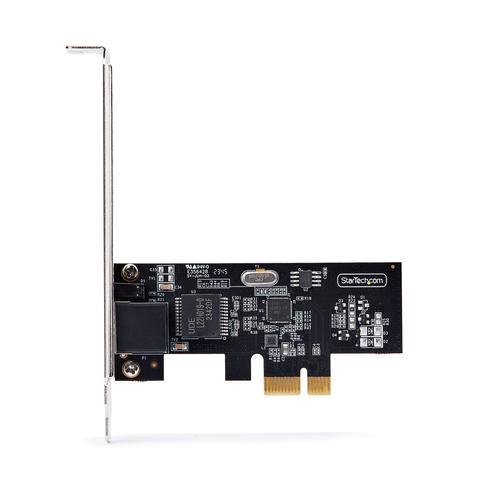

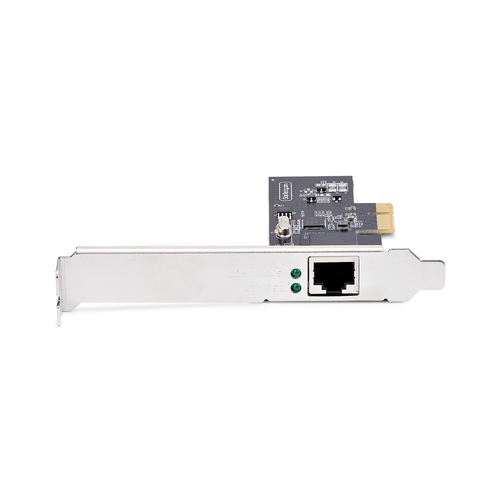

1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card

Part # PR12GI-NETWORK-CARDUPC 065030906203Warranty: 2 Years0.28 lb

1-Port 2.5Gbps PoE network card with Intel I225-V chip
Supports NBASE-T and multi-Gigabit speeds (2.5G/1G/100M/10M) w/ auto-negotiation
Ethernet NIC with Intel vPro® support
PXE boot/9K jumbo/VLAN/WoL/QoS
2.5GBASE-T PCIe network interface card features Link/Activity indicators
LAN transformer for reliable communication and reduced EMI

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

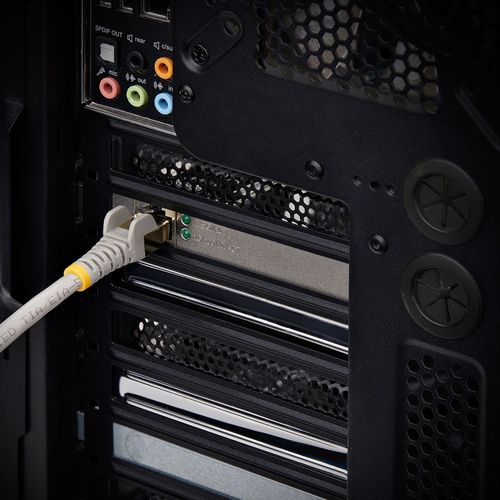

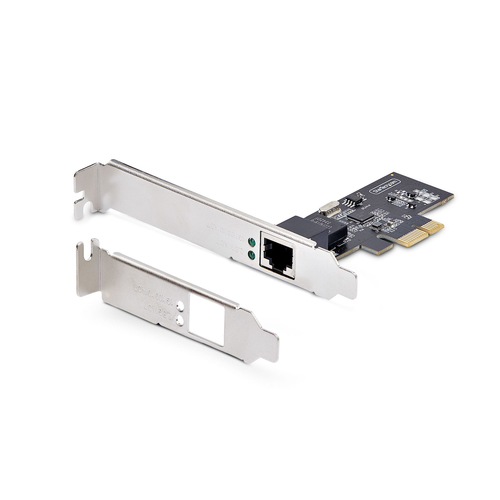

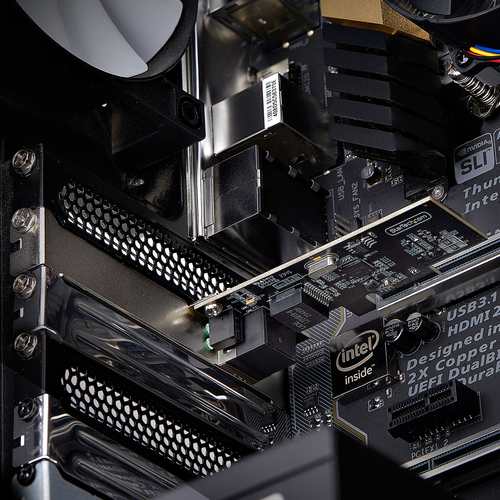

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.

This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Wake-on-LAN ready: Yes
Auto MDIX IEEE: Yes
Full duplex: Yes
Jumbo frames support: Yes
Auto-negotiation: Yes
Jumbo frames: 9000

Design

Component for: PC/Server
Product colour: Black
Internal: Yes
Chipset: Intel I225-V
LED indicators: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022
