Home/Catalogue/StarTech.com/PANELHU24
Drag to turn · 6 views
StarTech.comPatch Panels

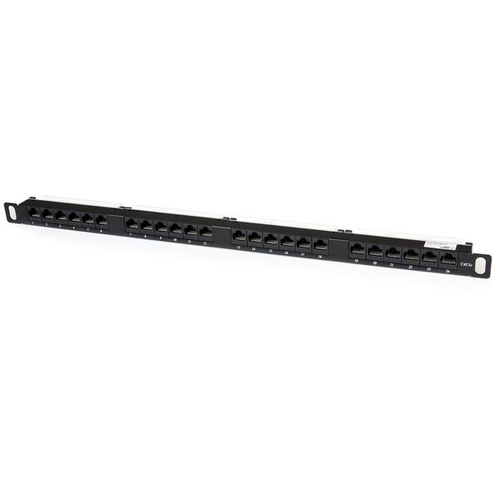

24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel
- Patch panel
- 24 ports
- for P/N: 2POSTRACK42
- 4POSTRACK12U
- 4POSTRACK25U
- 4POSTRACK42
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Organize up to 24 Cat5e patch cables using only 0.5U of rack space

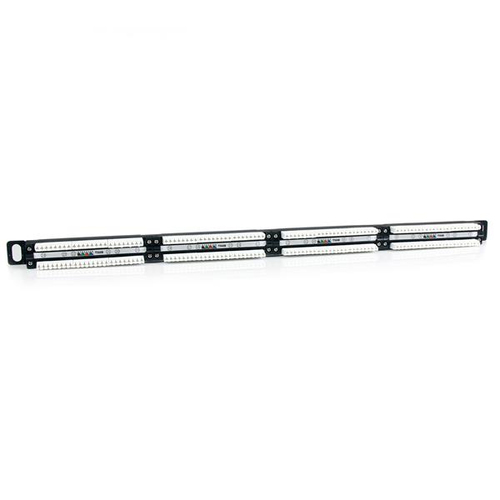

The PANELHU24 Rack Mount Cat5e patch panel condenses 24 ports into a 0.5U panel, making it an ideal solution for smaller installations.

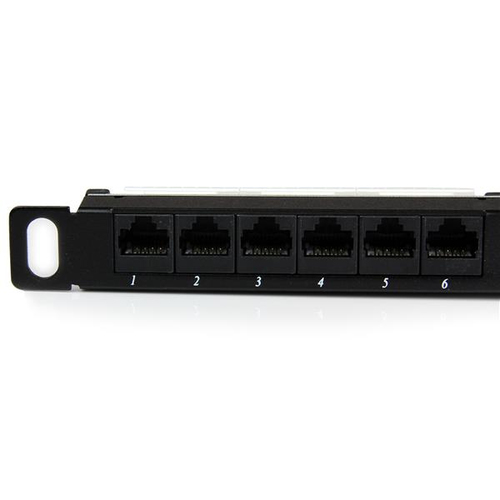

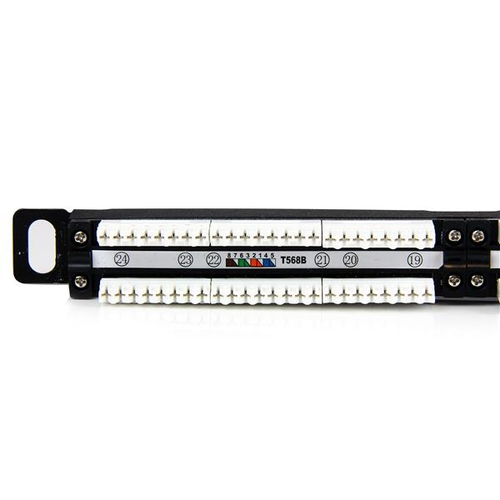

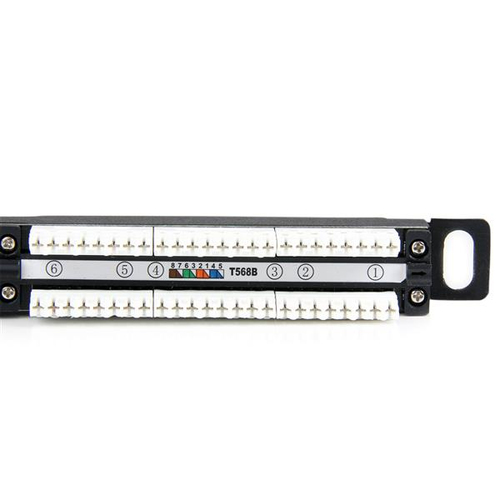

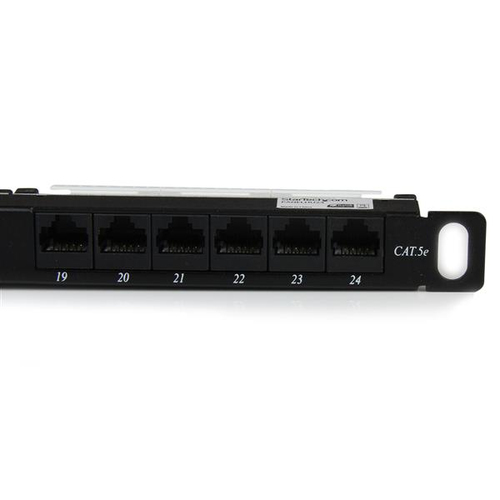

Color coded for both T568A and T568B wiring, this network patch panel provides the perfect solution for any voice or LAN application and offers dual type IDC termination. For convenience, the port numbers are clearly marked on the front of each RJ45 port, offering a quick and easy way to identify cable runs.
Durably constructed of only top quality materials, this 24-port Ethernet patch panel is backed by StarTech.com’s 2 year warranty.
Specifications
Network
- Ports quantity
- 24
- Connector(s)
- RJ-45
- Cable types supported
- Cat5e
Design
- Product colour
- Black
- Mounting
- Rack mounting
- Rack capacity
- 0.5U
Weight & dimensions
- Width
- 482 mm
- Weight
- 400 g
Packaging data
- Package width
- 59 mm
- Package depth
- 496 mm
- Package height
- 45 mm
- Package weight
- 494 g
Logistics data
- Harmonized System (HS) code
- 85371098
- Master (outer) case width
- 250 mm
- Master (outer) case length
- 514 mm
- Master (outer) case height
- 258 mm
- Products per master (outer) case
- 20 pc(s)
Downloads
More in Patch Panels
StarTech.comOrganize up to 24 Cat6 patch cables 110 Type Patch Panel 1U 24 port CaC6PANEL24
StarTech.com48Port 1U Blank Keystone Patch Panel with rear grounding wire; CustomiC6PANELSTP481U
StarTech.com24Port 1U Blank Keystone Patch Panel; Fits standard 19in network racksC6PANELUTP241U

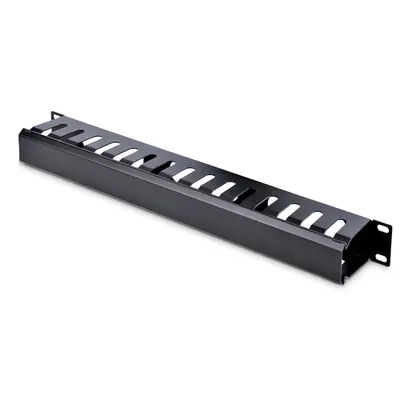

StarTech.com1U Metal rack patch cable managerCABLMANAGER2
