StarTech.comVGA Cables

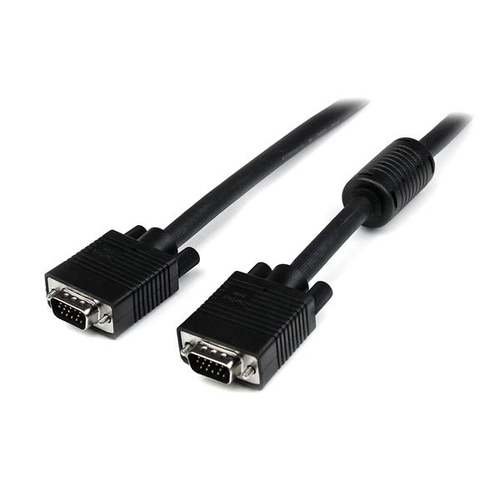

6 ft Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
- Connect your VGA monitor with the highest quality connection available
- 6ft VGA Cable
- 6 ft VGA Video Cable
- 6' VGA Monitor Cable
- 6ft HD15 to HD15 Cable
- 1920x1200 and above
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect your VGA monitor with the highest quality connection available
The MXT101MMHQ High Resolution VGA Cable (6ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Specifications
Features
- Cable length
- 1.8 m
- Connector 1
- VGA (D-Sub)
- Connector 2
- VGA (D-Sub)
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Product colour
- Black
- Maximum resolution
- 1920 x 1200 pixels
- AWG wire size
- 28
- Connector contacts plating
- Nickel
- Cable rating
- CMG (CM)
- Number of conductors
- 14
- Impedance
- 75 Ω
- Plug and Play
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -20 - 80 °C
- Operating relative humidity (H-H)
- 0 - 80%
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, REACH, UL2919
Weight & dimensions
- Weight
- 271 g
Packaging data
- Package width
- 198 mm
- Package depth
- 207 mm
- Package height
- 37 mm
- Package weight
- 280 g
- Quantity per pack
- 1 pc(s)
Logistics data
- Master (outer) case width
- 424 mm
- Master (outer) case length
- 383 mm
- Master (outer) case height
- 284 mm
- Products per master (outer) case
- 50 pc(s)
