3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video

Part # MST14DP123HDUPC 065030897631Warranty: 3 Years0.25 lb

DisplayPort to Triple-HDMI MST Hub drives up to 3x 4K 60Hz displays using a DP 1.4 host with DSC
7.1ch HDMI Audio
HDCP 2.2
Backwards compatible with DP 1.2 hosts at lower resolutions
Multi-monitor adapter adds three extended or mirrored displays
Utilize the host's built-in GPU capabilities

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

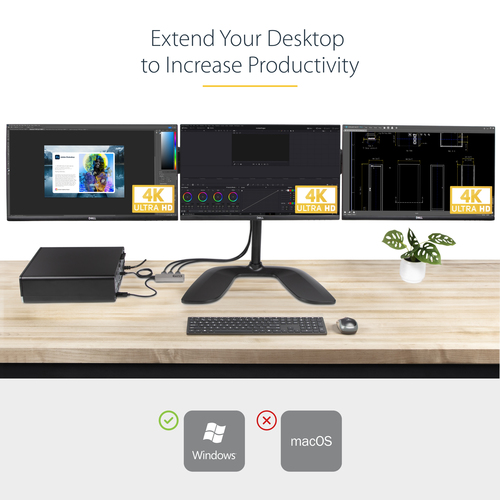

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors

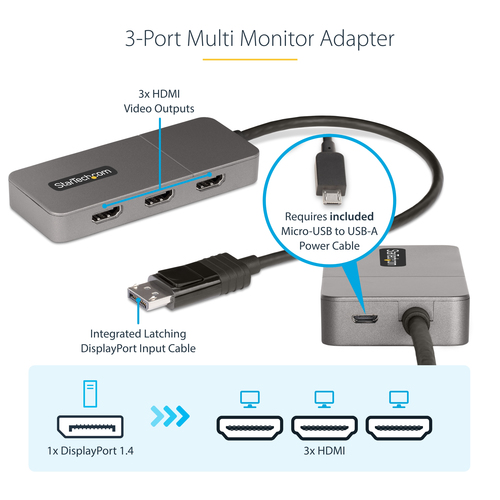

Connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.

Drive Triple 4K 60Hz Displays with HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.

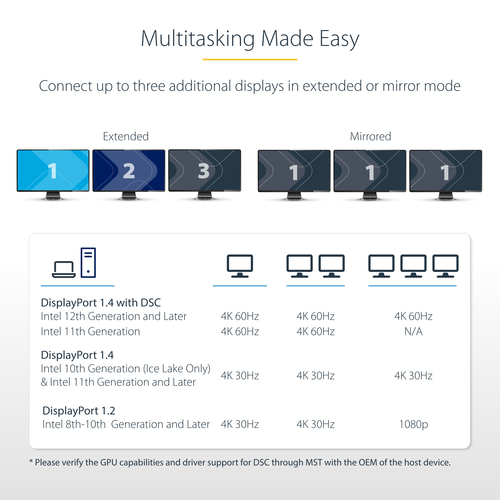

Host Connection

Maximum Resolution Output 1

Maximum Resolution Output 2

Maximum Resolution Output 3

Example Host Processor/Graphics

DisplayPort 1.4 with DSC

4K 60Hz

Intel 12th Gen Processors & Later

Dedicated AMD & Nvidia GPU's that support DSC

4K 60Hz

N/A

Intel 11 th Gen with DSC

DisplayPort 1.4

4K 30Hz

Intel 10 th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Dedicated AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

1080p

Specifications

Features

Power source: USB
Cable length: 0.3 m
Connector 1: DisplayPort
Connector 2: 3 x HDMI
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 2.1
DisplayPort version: 1.4
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160
Maximum refresh rate: 60 Hz
Refresh rate at maximum resolution: 60 Hz
Product colour: Grey
Chipset: VMM5310, IT6563FN
Supported audio channels: 7.1
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
