USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop

Part # MST14CD122DPUPC 065030884372Warranty: 3 Years0.24 lb

USB-C to Dual-DisplayPort MST Hub drives up to two 4K 60Hz displays using a USB-C DisplayPort 1.4 host with DSC
HDR | 2ch Audio | HDCP 2.2 | Backwards compatible with DP 1.4/DP 1.2 hosts at lower resolutions
Multi-monitor adapter adds up to two extended/mirrored displays | Utilize the host's built-in GPU capabilities | Driverless
Discrete GPUs/12th gen and up Intel Processors with DP 1.4 and DSC required for dual-4K 60Hz monitors
1ft built-in cable | Windows Only<br>

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

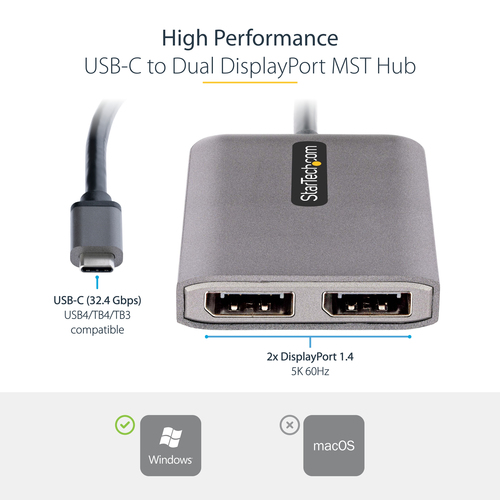

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors

This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

4K at 60Hz with HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.

Host Connection

Maximum Resolution

Output 1

Maximum Resolution

Output 2

Example Host

Processor/Graphics

DisplayPort 1.4 with DSC

5K 60Hz

*Intel 11th Gen with DSC

Intel 12th Gen Processors & Later

Discrete AMD & Nvidia GPU's that support DSC

DisplayPort 1.4

4K 60Hz

Intel 10th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Discrete AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

Intel 8th - 10th Gen Processors & Later

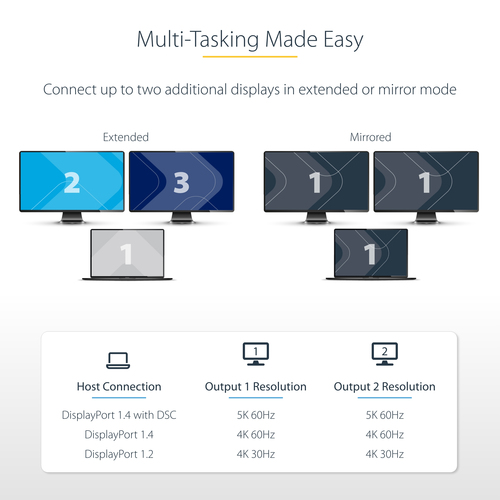

Multitasking Made Easy

Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.

Hassle-Free Setup

Specifications

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
DVI output: No
High Dynamic Range (HDR) supported: Yes
HDMI output: No
DisplayPort output: Yes
Number of displays supported: 2
DisplayPorts quantity: 2
HDCP: Yes
HDCP version: 2.2
DisplayPort version: 1.4
Maximum resolution: 4096 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 2.0 channels
Chipset: Synaptics - VMM5220, VIA/VLI - VL103

Design

Product colour: Grey
Housing material: Plastic

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
