StarTech.com M2E1BMU31C Drag to turn · 11 views
StarTech.comStorage Drive Enclosures

USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s

Part # M2E1BMU31CUPC 065030875691Warranty: 2 Years0.35 lb

  • USB-C external enclosure for PCIe M.2 NVMe SSD with 10Gbps USB 3.1 Gen 2 (w/UASP support)and PCIe 3.0 for speeds up to 1GB/s
  • Ventilated aluminum housing for optimal heat dissipation protects your M.2 NGFF SSD
  • Compatible with M-Key PCI Express drives (2230/2242/2260/2280)incl. Samsung/Kingston/Seagate/Intel
  • Incl. cable is compatible with USB Type-C (USB 3.1 Gen 2 and USB 3.0)or Thunderbolt 3 devices. Windows/Mac/Chrome/Linux Support
  • Driverless plug-and-play
  • Screwdriver included
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

External NVMe Enclosure | Thunderbolt™ 3 Compatible | USB-C Cable Included

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.

01

Unparalleled Performance

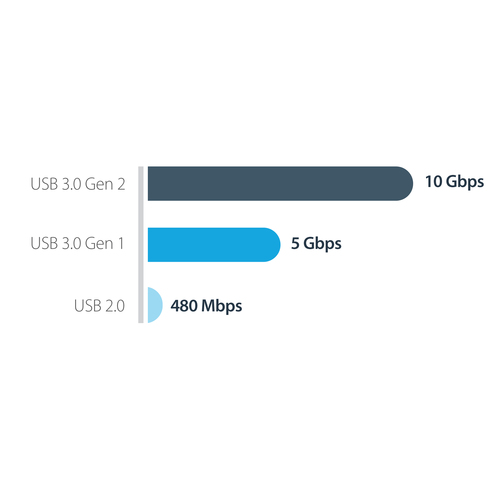

Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures and USB 3.1 Gen 1. NVMe allows users to take full advantage of the throughput available to USB 3.1 Gen 2, which would not be possible with a SATA drive.

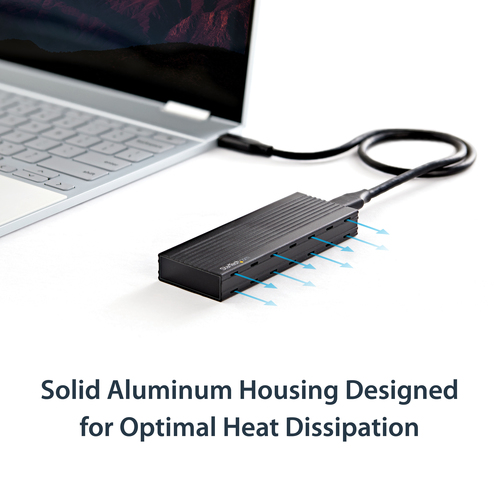

This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.

02

Truly Portable

This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.

03

Broad Compatibility

The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.

Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.

M2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Storage

Number of storage drives supported
1
Storage drive size
M.2
Supported storage drive interfaces
M.2
Supported storage drive lengths
30,42,60,80 mm

Ports & interfaces

USB connectivity
Yes
USB version
3.2 Gen 2 (3.1 Gen 2)
USB connector type
USB Type-C
USB connector gender
Female
USB ports quantity
1
Integrated USB cable
No

Design

Product type
SSD enclosure
Product colour
Black
Material
Aluminium, Plastic
LED indicators
Activity, Power
Certification
CE, FCC, REACH

Performance

Data transfer rate
10 Gbit/s
Chipset
ASMedia - ASM2362
UASP support
Yes
Hardware encryption
Yes
Mean time between failures (MTBF)
233398 h
Plug and Play
Yes

Power

Power source type
USB

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%

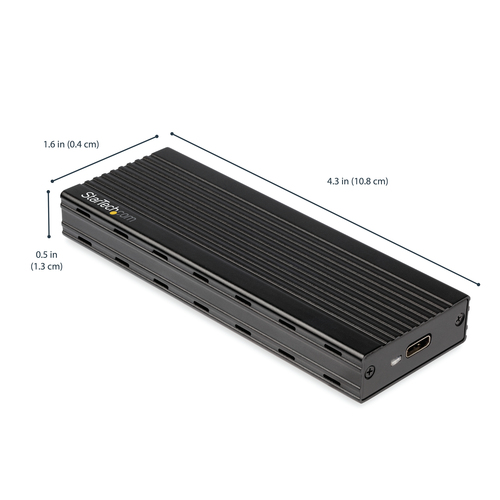

Weight & dimensions

Width
40 mm
Depth
108 mm
Height
13 mm
Weight
65 g
Package width
108 mm
Package depth
156 mm
Package height
38 mm
Package weight
155 g

Packaging content

Cables included
USB Type-C to USB Type-C
Screwdriver included
Yes
Manual
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
84733080
Master (outer) case width
390 mm
Master (outer) case length
488 mm
Master (outer) case height
268 mm
Products per master (outer) case
60 pc(s)
