Home/Catalogue/StarTech.com/FANBOX92
Drag to turn · 3 views
StarTech.comComputer Cooling Systems

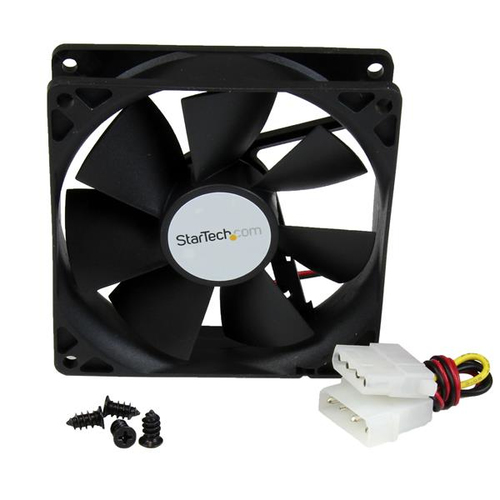

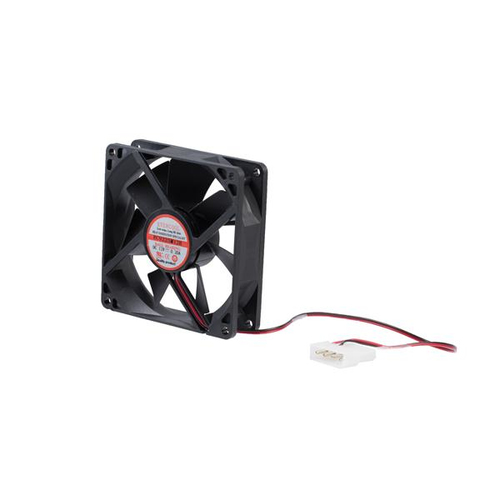

92x25mm Dual Ball Bearing Computer Case Fan w/ LP4 Connector
- Computer case Fan 9.2 cm 2200 RPM
- 26 dB 39.35 cfm Ball bearing
- Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add additional chassis cooling with a 92mm dual ball bearing fan
This 9.2cm x 9.2cm x 2.5cm (3 5/8" x 3 5/8" x 1") Dual Ball Bearing PC case fan is an add-in cooling fan designed to fit most computers.
The PC Case fan can be used to circulate cool air into the case or exhaust warm air out, preventing problems due to overheating components.
A quiet running brushless ball bearing DC motor coupled with a high efficiency blade design is capable of moving 39.35 CFM (cubic feet per minute) of air.
Power is supplied to the fan using a standard LP4 (hard drive power connector) pass through plug.
01
The StarTech.com Advantage
02
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
Performance
- Suitable location
- Computer case
- Type
- Fan
- Fan diameter
- 9.2 cm
- Rotational speed (max)
- 2200 RPM
- Noise level (high speed)
- 26 dB
- Maximum airflow
- 39.35 cfm
- Bearing type
- Ball bearing
- Operating temperature (T-T)
- -10 - 80 °C
Design
- Product colour
- Black
- Material
- Plastic
- Number of fans
- 1 fan(s)
- Illumination LED
- No
- Fan connector
- 4-pin
- Display type
- Not applicable
Power
- Voltage
- 12 V
Weight & dimensions
- Width
- 25 mm
- Depth
- 92 mm
- Height
- 92 mm
- Weight
- 108 g
- Package width
- 95 mm
- Package depth
- 142 mm
- Package height
- 31 mm
- Package weight
- 106 g
Technical details
- Compliance certificates
- RoHS
Packaging content
- Screws included
- Yes
- Number of screws
- 4
Logistics data
- Harmonized System (HS) code
- 84733080
Downloads
