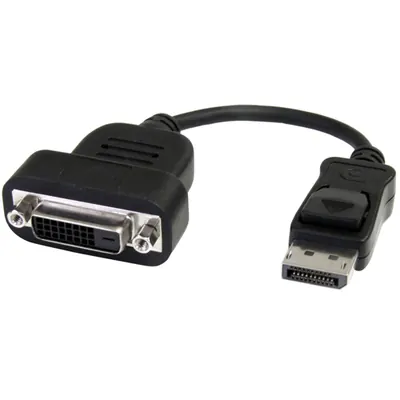

DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter
- DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI monitor/projector | 2560x1600 60Hz | HDCP compliant | 15" attached cable | USB-Powered | EDID
- Active video converter supports DP single mode or DP++ multi-mode source incl workstations/desktops (AMD/Nvidia)/laptops/docks
- DisplayPort to DVI adapter supports ultrawide/Apple Cinema Display HD
- DP to DVI Adapter Dongle | Latching nickel-plated DP connector w/ gold-plated contacts| Supports DVI screw-locking cable
- OS Independent
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Power source
- USB
- Cable length
- 0.37 m
- Connector 1
- DisplayPort
- Connector 2
- DVI-D
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- HDCP
- Yes
- DisplayPort version
- 1.2
- Dual Link DVI
- Yes
- Maximum resolution
- 2560 x 1600 pixels
- Supported graphics resolutions
- 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
- Maximum refresh rate
- 120 Hz
- HBR2 support
- Yes
- Product colour
- Black
- Converter type
- Active video converter
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -20 - 70 °C
Certificates
- Compliance certificates
- CE, RoHS
- Certification
- RoHS
Weight & dimensions
- Weight
- 160 g
- Width
- 64 mm
- Depth
- 549 mm
- Height
- 22 mm
Packaging data
- Package width
- 174 mm
- Package depth
- 143 mm
- Package height
- 35 mm
- Package weight
- 232 g
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 337 mm
- Master (outer) case length
- 497 mm
- Master (outer) case height
- 220 mm
- Products per master (outer) case
- 28 pc(s)
