USB C Multiport Adapter - USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-through - 3-Port

Part # DKT31CHPD3UPC 065030880763Warranty: 3 Years0.3 lb

USB-C multiport adapter w/4K 60Hz HDR10 HDMI 2.0b video (DP 1.4 Alt Mode) | 4K 30Hz (DP 1.2 Alt Mode)
1x 10Gbps USB-A 10Gbps w/BC 1.2 (7.5W) | 2x 10Gbps USB C hub incl. 1x shared data & USB-C PD
Bus powered or 100W Power Delivery 3.0 Pass through (15W for adapter/85W charging) w/USB Type-C laptop power adapter
Docking station w/10" long cable | Works w/USB-C/TB3/TB4/USB4 iPad Pro/Surface/Macbook Pro/Air (Intel or M1 chip)
Connectivity Tools App incl
Win/Mac/Chrome/iPad/Android

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

USB-C Multiport Adapter | HDMI Video | 1x USB-A (10Gbps) | 2x USB-C (10Gpbs) Including 1x Data + 100W PD Pass-Through

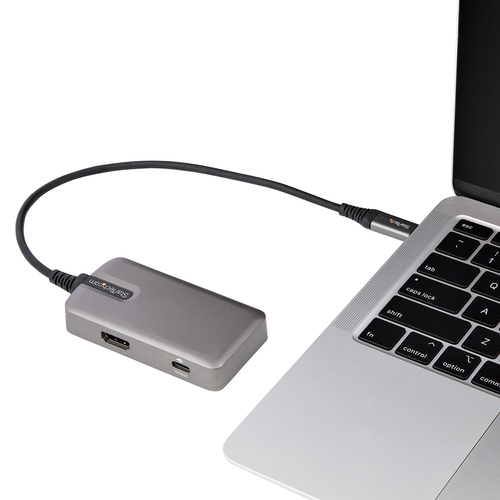

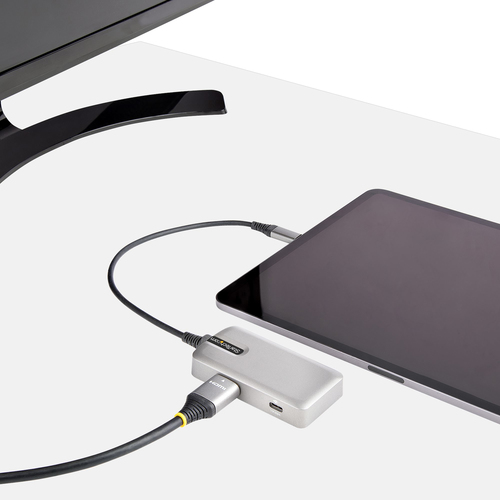

This USB-C multiport adapter with support for 4K 60Hz HDMI® (HDR) turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB 3.1 Gen 2 Type-A (10Gbps) port (supporting BC 1.2/7.5W device charging), a USB 3.1 Gen 2 Type-C (10Gbps) port, and an additional USB 3.1 Gen 2 Type-C port that can also be used as a 100W PD 3.0 pass through port - all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.

USB 3.1 Gen 2 (10Gbps) is also known as USB 3.2 Gen 2x1 (10Gbps).

Enhance Productivity

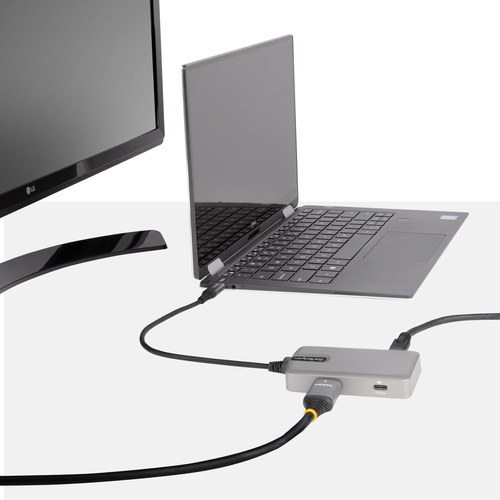

The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultra-wide monitor with resolutions up to 3440x1440 60Hz.

DP Alt Mode Required

Maximum Resolution

DP 1.2 Alternate Mode

Up to 4K 30Hz

DP 1.4 Alternate Mode

Up to 4K 60Hz

Connect Your Devices

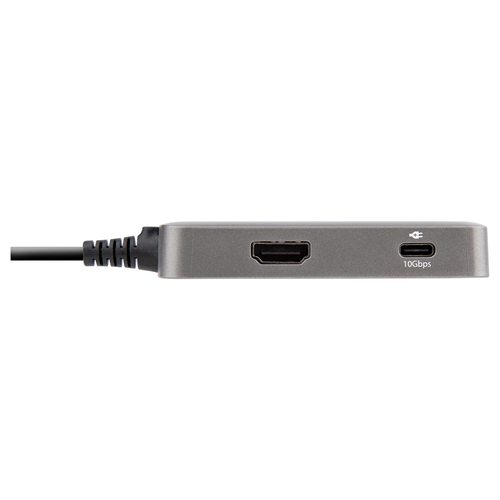

The USB-C to USB 3.1 Gen 2 hub gives you a USB-A (10Gbps) port, and a USB-C (10Gbps) port to connect your USB devices. Plus, when using the multifunction adapter without a power adapter connected, the additional USB-C port, that the power adapter connects to, can be used as a USB-C (10Gbps) peripheral port.

Easy Portability

For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and fits easily into a laptop bag for on-the-go travel use in your office, home office and shared work spaces.

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data and video disruption when you switch power sources (USB-C power adapter to bus power).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

• USB Event Monitoring Utility : To track and log connected USB devices

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The DKT31CHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
DisplayPort version: 1.4
Microphone in: No
DC-in jack: No

Network

Ethernet LAN: No

Performance

Card reader integrated: No
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3096 x 2160 pixels
Number of displays supported: 1
Maximum refresh rate: 60 Hz
Product colour: Grey
High Dynamic Range 10 (HDR10): Yes
UASP support: Yes
Certification: TAA, FCC

Power

Power consumption (typical): 15 W
Wireless charging: No

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Mobile operating systems supported: Android, iPadOS
