USB C Multiport Adapter - Portable USB-C Dock with 4K HDMI - 100W PD 3.0 Pass-Through, 1x USB-A, 1x
- USB C multiport adapter to 4K 30Hz HDMI video/Gigabit Ethernet/USB-A (5Gbps/Fast Charge)/USB-C for data or Power Delivery
- Portable USB-C mini dock powered via USB bus or up to 100W PD 3.0 Passthrough (8W for dock) w/ laptop charger
- Compact USB-C travel dock w/ cable wrap to prevent tangles (6" cable)
- Thunderbolt 3/USB Type-C laptops Ultrabooks Chromebooks tablet like MacBook HP Dell Lenovo
- Auto driver install Windows macOS Chrome OS Android
- BC 1.2 (1.5A) for charging devices
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Portable Docking Station | Mac & Windows® | 4K | GbE | Wrap-Around Cable
Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.
Connect a UHD 4K HDMI Monitor
Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor.
Connect Your Devices
The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.
Laptop Charging with PD 3.0
With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).

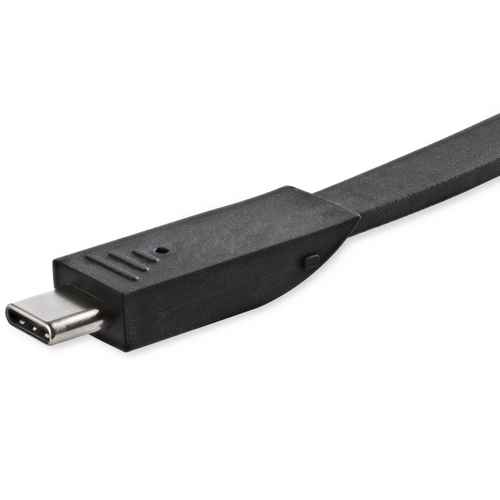

Wrap-Around Cable
The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.0
- USB Power Delivery up to
- 100 W
- HDMI ports quantity
- 1
- Microphone in
- No
- USB connector type
- USB Type-A, USB Type-C
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
Performance
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- HD type
- 4K Ultra HD
- Maximum digital resolution
- 4096 x 2160 pixels
- Product colour
- Black
- UASP support
- Yes
- Housing material
- Plastic
- Certification
- CE, FCC, REACH
Power
- Power source type
- USB
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mac operating systems supported
- Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
- Other operating systems supported
- ChromeOS
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Weight & dimensions
- Width
- 38 mm
- Depth
- 167 mm
- Height
- 7.5 mm
- Weight
- 127 g
Packaging data
- Package width
- 107 mm
- Package depth
- 86 mm
- Package height
- 18 mm
- Package weight
- 135 g
Packaging content
- Manual
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 200 pc(s)
- Master (outer) case width
- 506 mm
- Master (outer) case length
- 380 mm
- Master (outer) case height
- 276 mm
- Harmonized System (HS) code
- 84733020
Other features
- Chipset
- VIA/VLI - VL102, VIA/VLI - VL817, Parade Technologies - PS176, RealTek - RTL8153
