Home/Catalogue/StarTech.com/CDP2DP14B

StarTech.com CDP2DP14B Drag to turn · 4 views
StarTech.comUSB Graphics Adapters

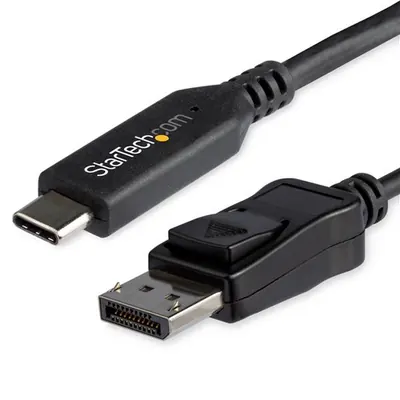

USB C to DisplayPort Adapter - 8K/5K/4K USB Type C to DP 1.4 Alt Mode Video Converter

Part # CDP2DP14BUPC 065030883634Warranty: 3 Years0.1 lb

  • '- USB-C to DisplayPort 1.4 (32.4Gbps) adapter w/ HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4
  • 8K 60Hz/4K 120Hz/1080p
  • USB C to DisplayPort 1.4 converter tested w/ 8K monitors/displays + compliance test hardware/software
  • USBC to DP video adapter dongle has latching DP connector/Level 4 ESD protection/EMI shielding
  • USB Type-C DP Alt Mode/Thunderbolt 3/4 devices like ThinkPad/Dell XPS/HP/MacBook Pro/iPad Pro/iPhone 15 (Pro) and up/Surface
  • Driverless
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

DisplayPort™ 1.4 Adapter | Thunderbolt™ 3 Compatible | HBR3

This USB-C™ to DisplayPort™ adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort monitor or display, providing you with a convenient, high-performance solution. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.

01

Incredible 8K Picture Quality

Supporting four times the resolution of 4K, this 8K DisplayPort 1.4 adapter delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

With cutting-edge picture quality, this adapter is ideal for:

02

• Displaying crisp digital signage walls

• Creating eye-catching visuals for photography and videography

03

• Streaming high-resolution, life-like content

The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

04

Ideal for Travel

This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.

05

Hassle-Free Setup

To ensure easy operation, this USB C to DisplayPort adapter supports plug-and-play installation, removing the need for additional software or drivers.

CDP2DP14B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

• Your USB-C device must support DP Alt Mode to work with this adapter.

• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

• This product will not work with the Samsung S8 smartphone. For hassle-free compatibility with the S8 we recommend using CDP2DP .

Specifications

Performance

USB connector type
USB Type-C
USB connector gender
Male
DVI output
No
HDMI output
No
DisplayPort output
Yes
Number of displays supported
1
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Refresh rate at maximum resolution
30 Hz
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320
Audio output channels
7.1 channels
Chipset
STM32F072
Certification
CE, FCC, REACH

Design

Product colour
Black

Weight & dimensions

Width
60 mm
Depth
24 mm
Height
15 mm
Weight
34 g

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
30 - 60%

Packaging data

Package width
200 mm
Package depth
106 mm
Package height
22 mm
Package weight
44 g

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
120 pc(s)
Master (outer) case width
508 mm
Master (outer) case length
340 mm
Master (outer) case height
230 mm
Harmonized System (HS) code
84733020
