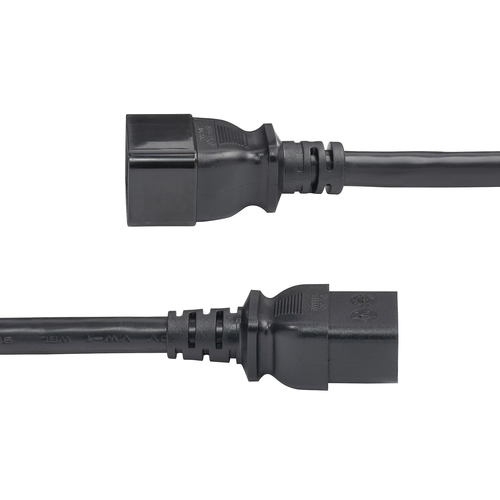

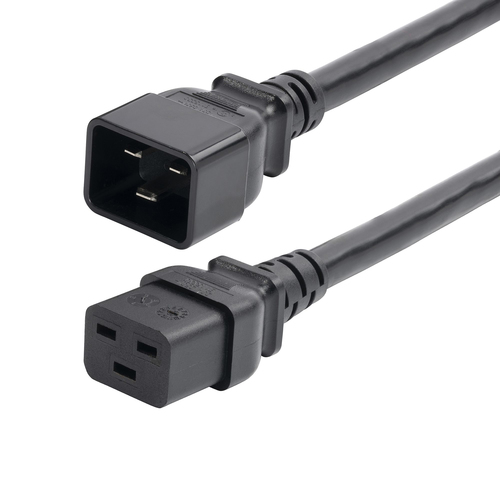

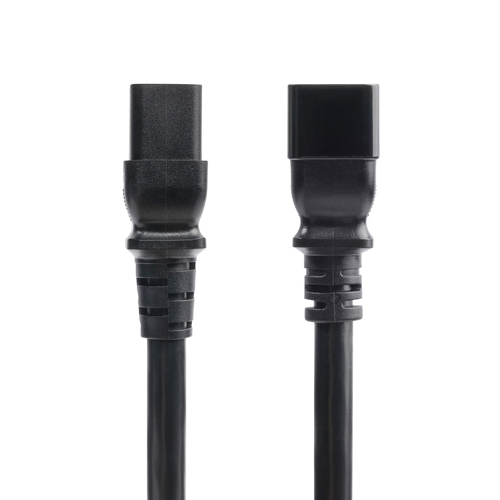

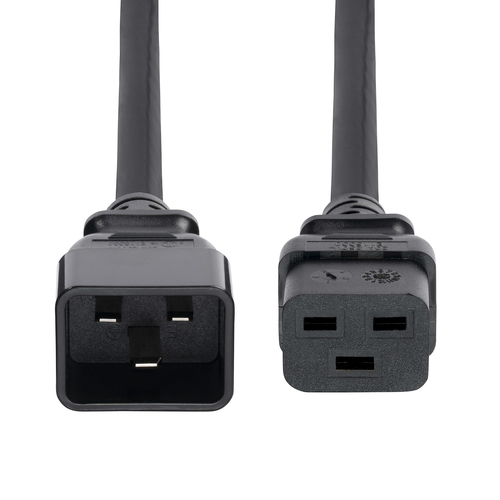

2ft (60cm) Heavy Duty Extension Cord, C19 to C20 Black Extension Cord, 20A 250V, 12AWG, Heavy Gauge
- 2ft (60cm) Heavy duty power cord with IEC 60320 C19 to C20 connectors
- Rated to carry 250V at 20A (Max)
- UL Listed
- Durable molded connectors w/strain reliefs
- 100% Copper wire
- Fire Rating: VW-1
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect a server or rackmount equipment to a PDU with a cable that's designed for heavy use
The IT Pro's Choice
StarTech.com's power cables are designed by IT professionals. We design our products to meet the technical requirements of wide variety of applications. Our in-house specialists subject our products to multiple rounds of comprehensive testing, designed to emulate real-world operational conditions. Third-party labs test our products to confirm compliance with the latest safety standards.
StarTech.com manufactures standard and heavy-duty power cords, extension cords, medical-grade cords, power splitter cables, and power cords featuring passthrough outlets. These products are produced in various lengths, with a range of connector ends, jacket types, and wire gauges. Our power cable products are chosen by IT professionals worldwide for the following reasons:.
• Certified for performance and safety - Manufactured using UL listed components to meet UL62 and UL817 compliance standards
• Reduced environmental impact and safe disposal by adhering to the rules, regulations, and directives stipulated by REACH and RoHS
• 100% Copper wiring tested for continuity and conductivity, ensuring maximum performance and reliability
• Temperature chamber tested to ensure reliable performance across a range of environmental conditions
Backed for life by StarTech.com, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 0.6 m
- Connector 1
- C19 coupler
- Connector 2
- C20 coupler
- Connector 1 standard
- IEC 60320
- Connector 2 standard
- IEC 60320
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- Jacket material
- Polyvinyl chloride (PVC)
- Conductor material
- Copper
- AWG wire size
- 12
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 250 V
- Input current
- 20 A
Operational conditions
- Operating temperature (T-T)
- -20 - 105 °C
- Storage temperature (T-T)
- -20 - 105 °C
- Operating relative humidity (H-H)
- 0 - 65%
Certificates
- Compliance certificates
- RoHS
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Diameter
- 1.12 cm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 142 mm
- Package depth
- 202 mm
- Package height
- 44 mm
- Package weight
- 186 g
Logistics data
- Master (outer) case width
- 467 mm
- Master (outer) case length
- 315 mm
- Master (outer) case height
- 244 mm
- Products per master (outer) case
- 50 pc(s)
