4-Port Thunderbolt™ 5 Hub with Thunderbolt™ Share KVM, 80/120Gbps, 8K 60Hz or 4K 144Hz, 140W PD

Part # 303NA-TB5-HUBUPC 065030925716Warranty: 2 Years3 lb

Included Thunderbolt™ Share software enables two PCs to share one keyboard mouse and display over a single Thunderbolt cable
Features file transfer shared control and PC migration (Windows only)
Supports Thunderbolt and USB4 NVMe storage with lightning-fast throughput of 6200MBps
Three Thunderbolt™ 5 ports plus USB-A 10Gbps downstream unlock multiple 8K or 6K displays high-speed SSDs network adapters daisy-chained TBT devices and USB-C devices up to 80Gbps
Up to 140W laptop charging

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Thunderbolt™ 5 hub with three TB5 downstream ports for triple 8K video, 140W charging, USB-A, and Thunderbolt™ Share

Thunderbolt Certified, USB4 Compatible Hub

Unlock enterprise-grade performance with a compact Thunderbolt™ 5 hub built for demanding workflows. Featuring up to 80/120Gbps throughput, 140W laptop charging, and expansive peripheral support, this hub powers high-speed storage, displays, and devices from a single Thunderbolt connection.

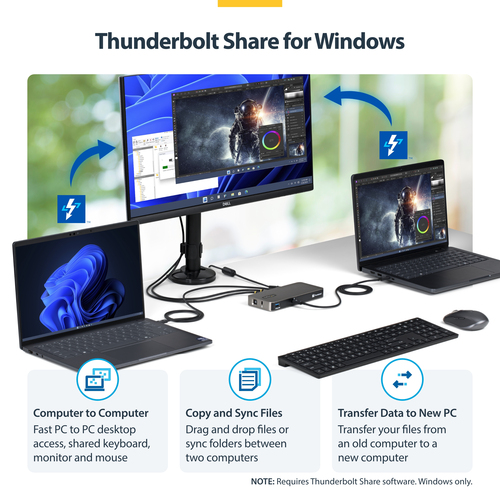

KVM‑Like Control with Thunderbolt™ Share

Included Thunderbolt™ Share software enables two Windows PCs to share a single keyboard, mouse, and display over one Thunderbolt cable, with no KVM switch required. With support for file transfer, shared control, and PC migration, it streamlines multi-PC workflows with ultra-low latency.

Enterprise‑Grade Performance and Expansion

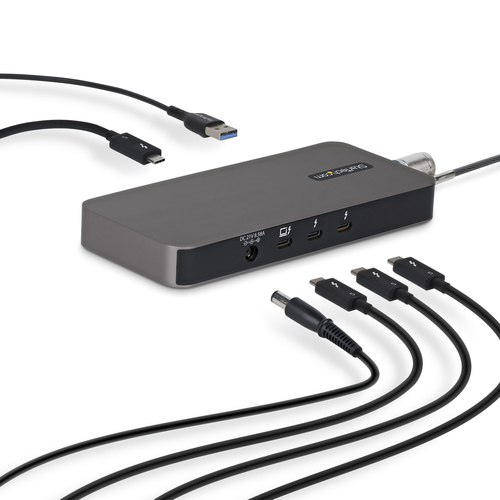

Harness Thunderbolt™ 5's full bandwidth for intensive workloads, including Thunderbolt and USB4 NVMe storage with throughput up to 6,200MB/s. Three Thunderbolt 5 ports and a USB‑A 10Gbps port support high-speed SSDs, network adapters, daisy‑chained Thunderbolt devices, and USB‑C peripherals.

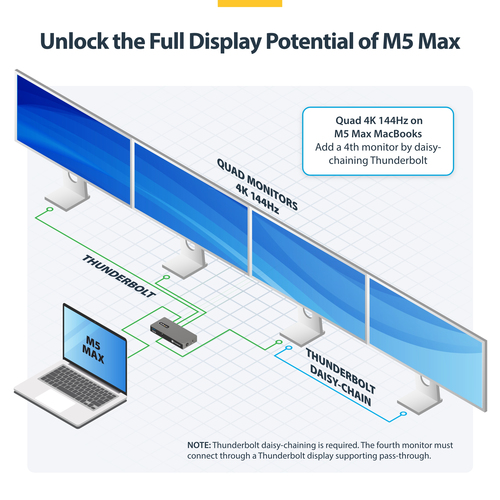

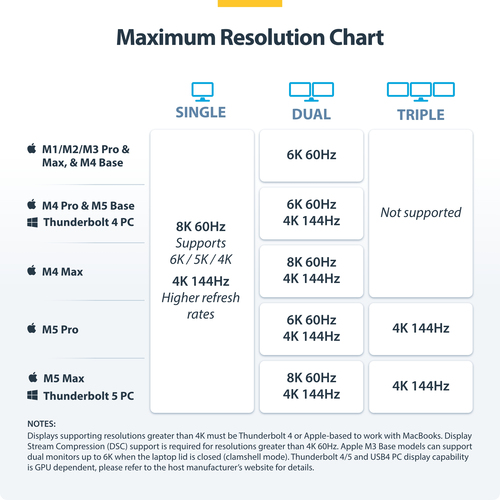

Advanced Display and Charging Capabilities

Connect multiple high-resolution displays, including 8K or 6K monitors, while powering your system. The hub delivers up to 140W Power Delivery for laptops, 15W PD on downstream Thunderbolt ports, and 7.5W (1.5A) charging on the USB‑A port for mobile devices.

Secure, Deployable Design for IT Environments

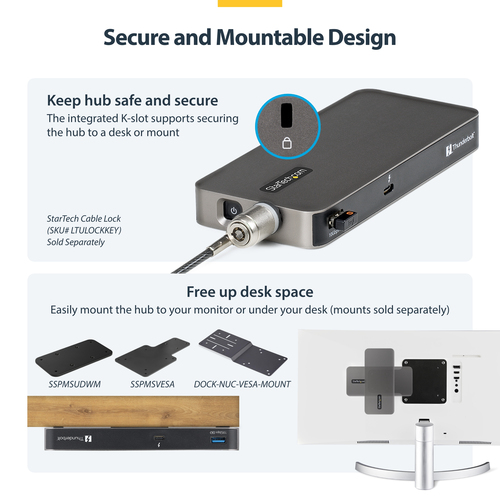

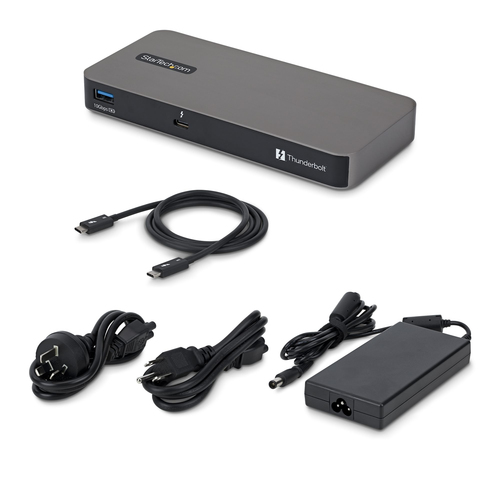

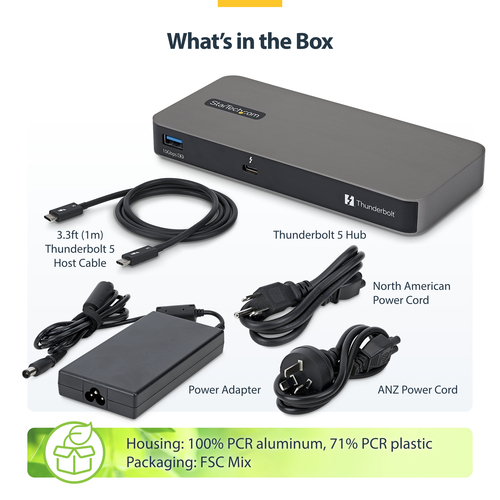

Built with a rugged aluminum chassis, this hub includes a K‑slot security lock, power button, and 40x40mm VESA mounting support for clean, secure installations. A 3.3ft (1m) Thunderbolt™ 5 host cable is included for fast deployment in enterprise or shared workspaces.

Specifications

Ports & interfaces

Host interface: Thunderbolt 5
Hub interfaces: Thunderbolt 5, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Thunderbolt ports quantity: 3
Ports quantity: 4
Cable lock slot type: Kensington

Features

Data transfer rate: 80 Mbit/s
Supported graphics resolutions: 7680 x 4320
Product colour: Grey
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.1
USB Power Delivery up to: 140 W
HD type: 8K Ultra HD
LED indicators: Power

Network

UASP support: Yes

Power

Power consumption (typical): 180.18 W
Output voltage: 21 V
Output current: 8.58 A

System requirements

Windows operating systems supported: Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported: Mac OS 26 Tahoe, Mac OS X 15.0 Sequoia
