28-Inch Wall-Mount Media Enclosure, Cable Management Box for Network Distribution, Structured Media

Part # 28P1-MEDIA-ENCLOSUREUPC 065030906425Warranty: 2 Years13.06 lb

Provides a central location to organize and protect networking equipment such as routers/switches/fiber media converters/modems while optimizing cable management/housing components
Fire retardant all-plastic design doesn't block RF/Wi-Fi
Vented for passive cooling of installed devices

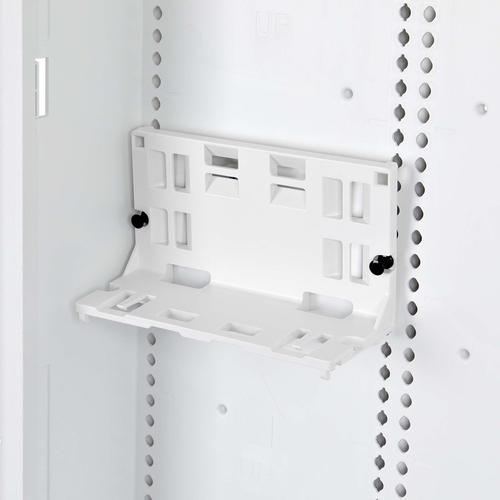

Tool-free installation of height-adjustable shelves
Fits between 16in spaced studs
Five knockouts on top/three on bottom w/hook-and-loop straps/plastic hooks

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Efficiently organize media converters with this wall-mounted enclosure

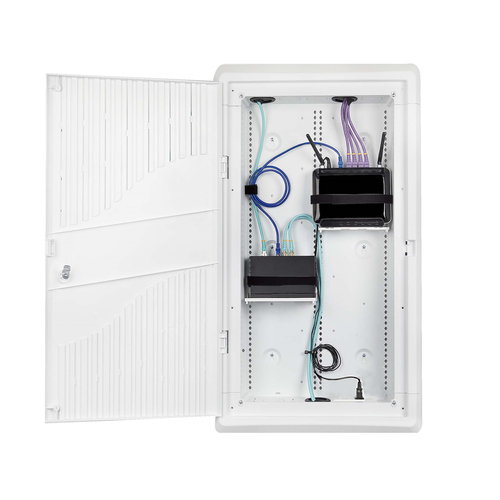

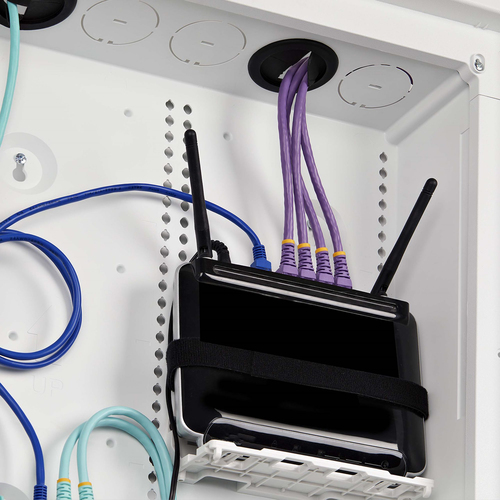

This structured media enclosure provides a centralized location to organize and protect networking equipment, such as routers, switches, fiber media converters, and modems, while optimizing cable management and housing components securely in one accessible space. The fire-retardant plastic material allows for the mounting of network equipment, without blocking RF/Wi-Fi connection.

Wide Application Range

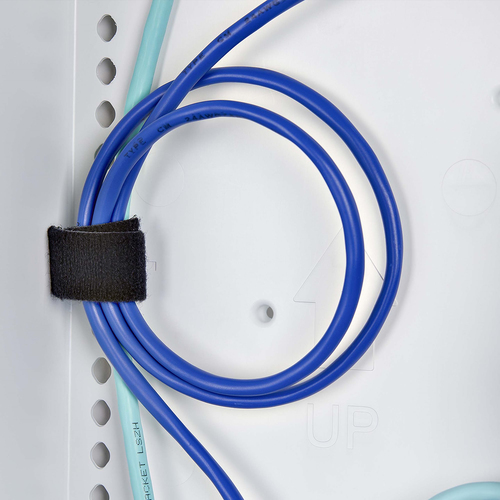

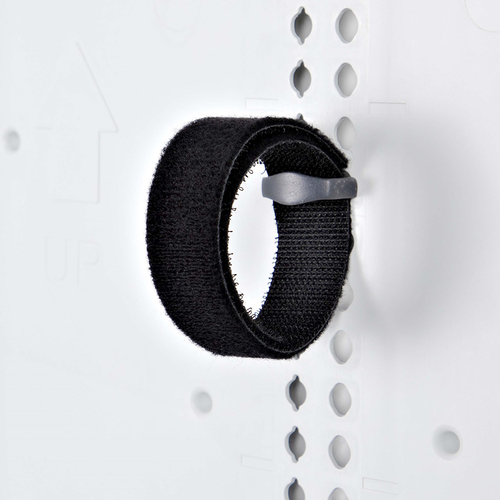

Ideal for new installations or retrofits that include equipment for data networks, phone systems, video extension setups, audio systems, and security devices. The Network Device Enclosure features five knockouts on the top and three on the bottom, along with included hook-and-loop straps and plastic hooks, to ensure organized management of components and cables. The enclosure supports up to 22lbs (10kg) worth of equipment.

Flexible Installation

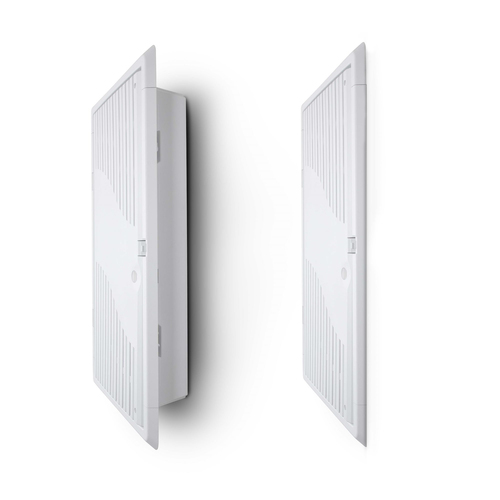

The media enclosure can be installed on a wall and can be surface mounted or recessed by mounting between wall studs. It is lightweight and can be installed by one person with keyhole mounting holes.

Specifications

Features

Type: Wall mounted rack
Maximum weight capacity: 10 kg
Product colour: White
Material: Plastic
Frame type: Closed
Front door construction: Plastic
Number of fans: 0 fan(s)
Cable management: Yes

Weight & dimensions

Size (imperial): 71.1 cm (28")
Width: 468 mm
Depth: 844 mm
Height: 126 mm
Weight: 3.6 kg

Packaging data

Quick installation guide: Yes

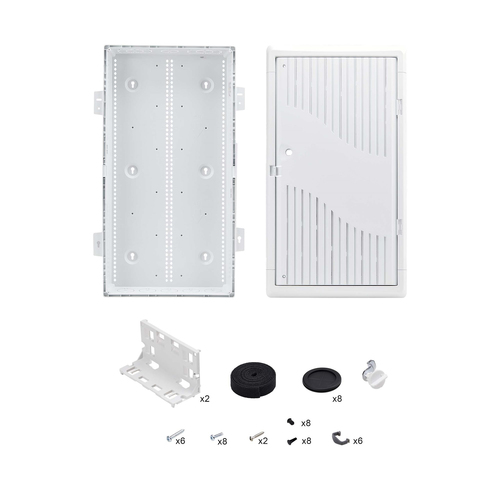

Mounting hardware included in set: 8 - Rubber Grommet 1 - Door Latch 6 - #8x25.4 Screws 2 - #6-20x7/8 Screws 8 - T3.5x15 Screws 2 - Shelf Brackets 8 - Nylon Rivets (Male) 8 - Nylon Rivets (Female) 6 - Plastic Hook 1 - 3ft (0.91m) Hook and Loop Strap
Package width: 892 mm
Package depth: 490 mm
Package height: 181 mm
