13-Outlet Rackmount PDU, 1U Server Power Strip with 1x Front and 12x Rear Ports, Mounted Power
- 1U rack-mounted PDU unit with 13x NEMA 5-15R electrical outlets

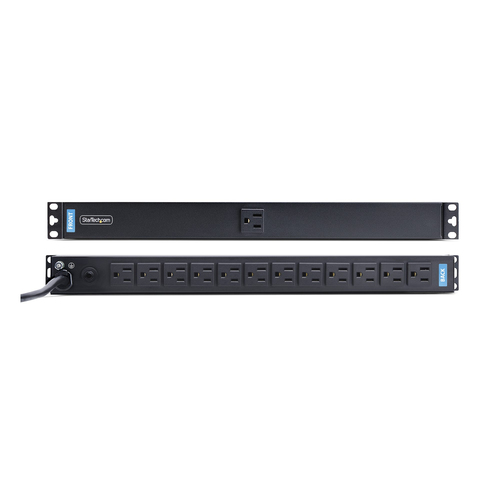

- 1x front and 12x rear ports
- 125V max 15A

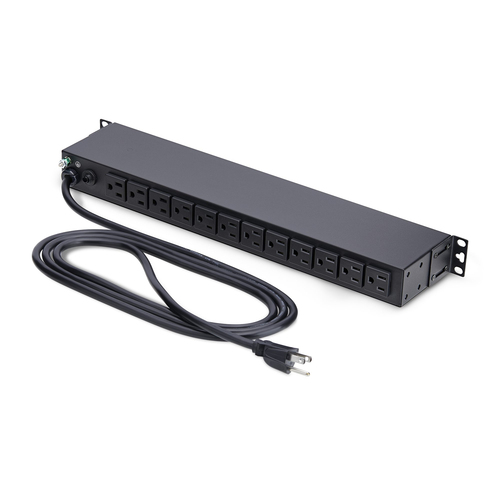

- Built-in 8ft NEMA 5-15P power cord
- Rackmount power distribution strip includes 4-way mounting brackets

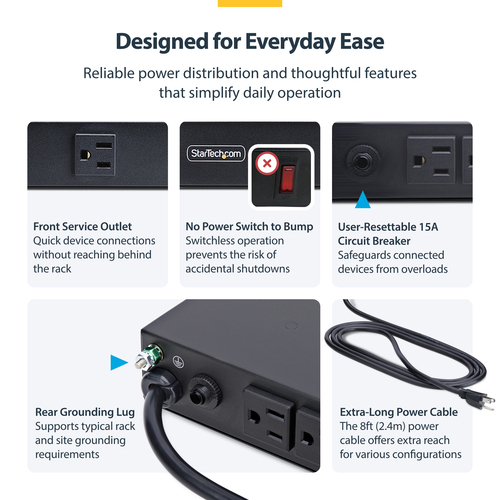

- User-resettable 15A circuit breaker
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

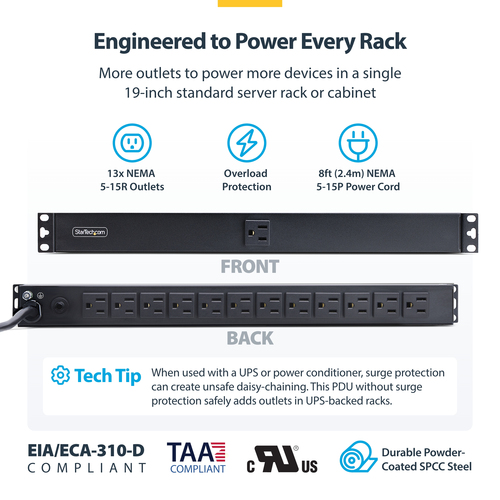

Add thirteen power outlets to a 19in server rack or cabinet
Deliver reliable power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 13 NEMA 5-15 electrical, a built-in circuit breaker, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity
Designed for dense IT and AV environments this unit powers up to 13 devices through 1x front and 12x rear-facing NEMA 5-15 outlets. The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-in circuit Protection for Critical Hardware
The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits.

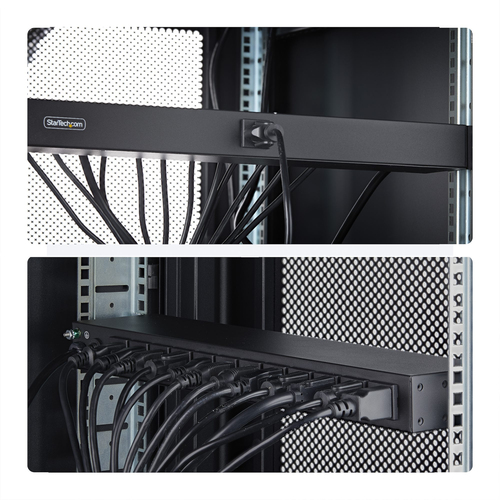

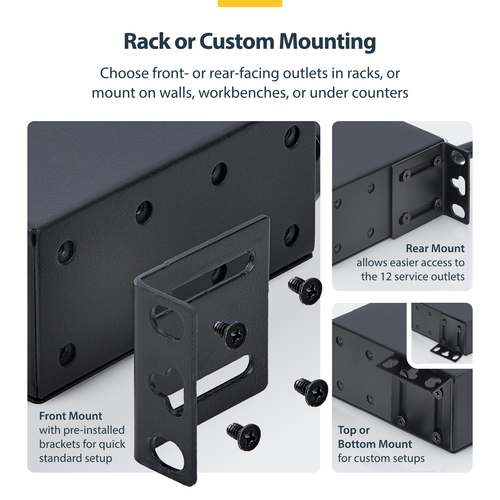

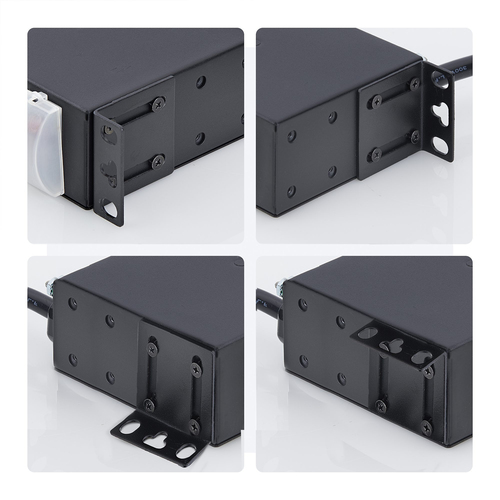

Flexible Mounting

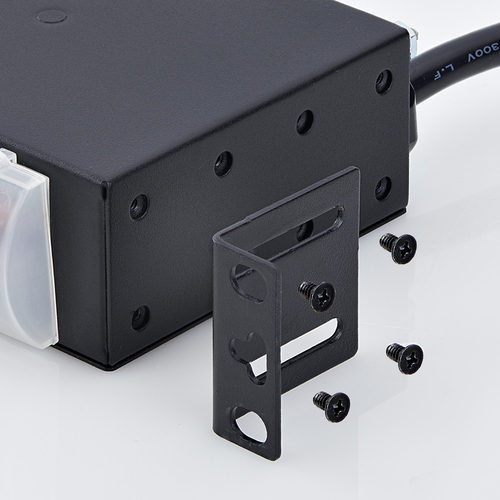

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability.
Specifications
Design
- PDU types
- Basic
- Rack mounting
- Yes
- Rack capacity
- 1U
- Mounting
- Horizontal
- Housing material
- Steel
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 13 AC outlet(s)
- Power plug
- NEMA 5-15P
- AC outlet types
- NEMA 5-15R
Features
- Cable length
- 2.4 m
Power
- Nominal input voltage
- 120 V
- Maximum current
- 15 A
- Output voltage
- 125 V
- Load capacity
- 1500 VA
- Maximum input current per phase
- 15 A
- Circuit breaker
- Yes
Weight & dimensions
- Width
- 110 mm
- Depth
- 477.2 mm
- Height
- 43.3 mm
- Weight
- 1.69 kg

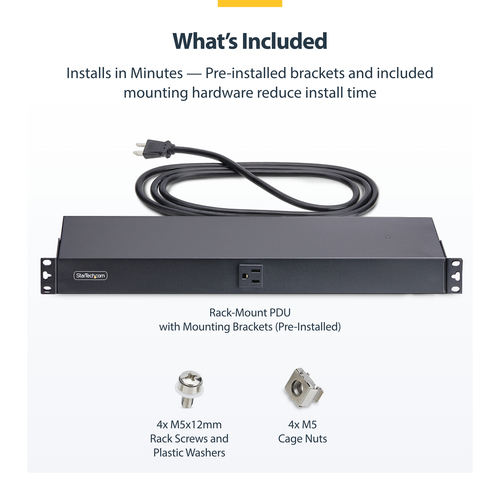

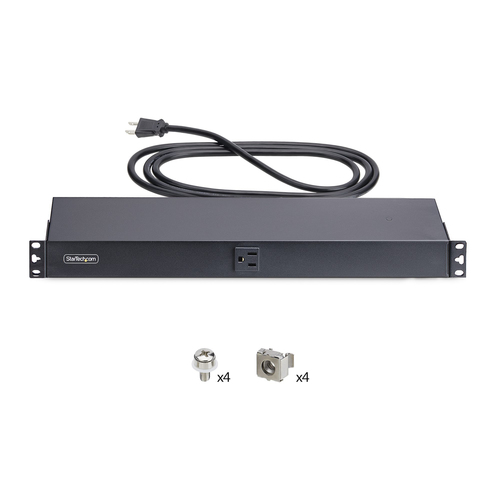

Packaging content
- Manual
- Yes
- Screws included
- Yes
- Number of screws
- 4
- Screw nuts included
- Yes
- Number of screw nuts
- 4
Packaging data
- Package weight
- 2.2 kg
- Package width
- 516 mm
- Package depth
- 235 mm
- Package height
- 52 mm
Logistics data
- Master (outer) case width
- 528 mm
- Master (outer) case length
- 350 mm
- Master (outer) case height
- 250 mm
- Products per master (outer) case
- 4 pc(s)
