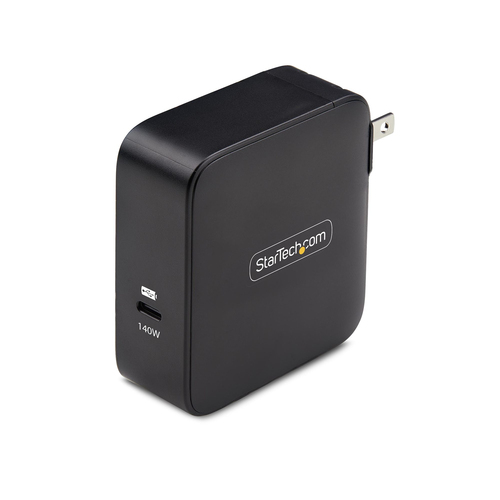

140W USB-C Wall Charger, USB-IF Certified, Single USB-C, PD 3.1 Portable GaN Charging, Power
- USB-IF Certified 140W EPR GaN USB-C wall charger with PD 3.1 for charging multiple PD voltage profiles (5V/9V/12V/15V/20V at up to 5A)

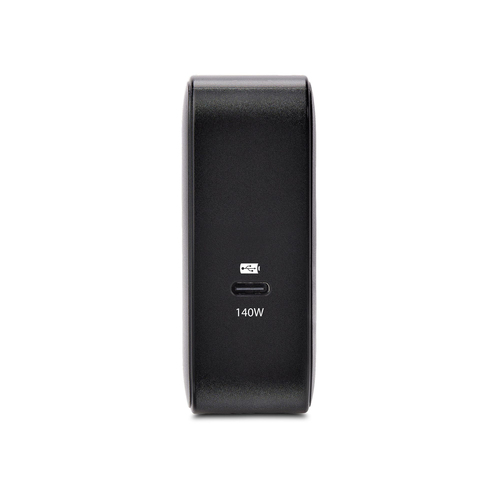

- Single USB Type-C port (140W max/PD 3.1 support)
- Runs cool at full-load use
- 6ft (1.8m) USB-C cable included

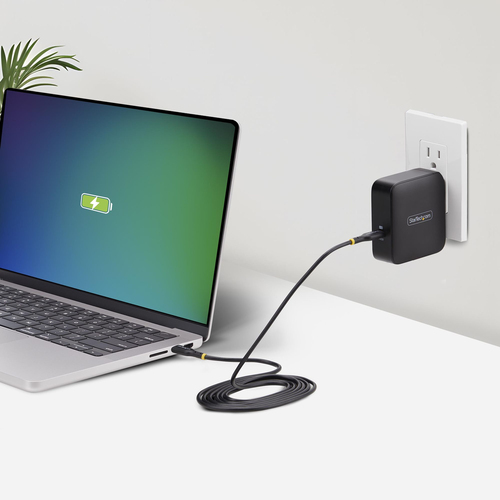

- Portable Travel charger fully supports MacBook M3 Pro/Max ensuring high-speed 140W charging
- Charges devices with earlier PD revisions like MacBook/Dell XPS/Precision/Inspiron/iPad Pro
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Power and Charge USB Devices with this 140W USB Power Delivery 3.1 Wall Charger

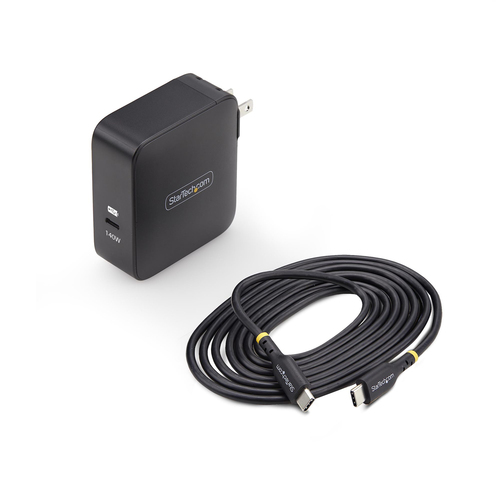

This USB-IF Certified 140W USB-C GaN Charger delivers a versatile, high-power charging solution for USB-C devices, supporting up to 140W with PD 3.1. The package includes a 6 ft (1.8 m) USB-C cable, so you have everything needed for immediate, reliable charging.

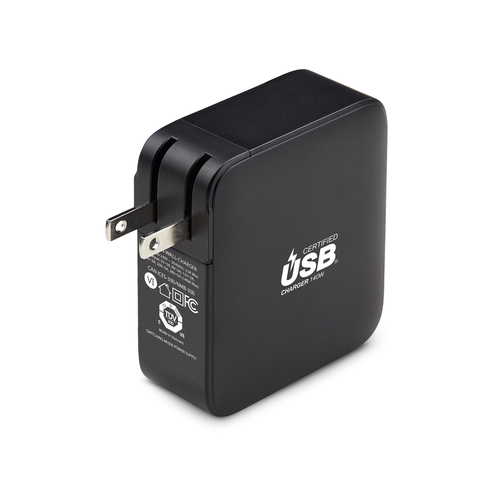

USB-IF Certified and EPR Ready
The USB-IF Certified Power Adapter and included USB-IF Certified USB Type-C cable provide safe and reliable charging solutions. Supporting high-performance USB Power Delivery (PD) 3.1 with Extended Power Range (EPR), this adapter can charge demanding 140W devices, including the MacBook M3 Pro/Max. Its robust design accommodates current laptops like the MacBook Air, Dell XPS, iPad Pro, iPhone, Samsung smartphones, and Google Pixel, while also ensuring future-proof compatibility with next-generation devices.
Compact & Cool Running

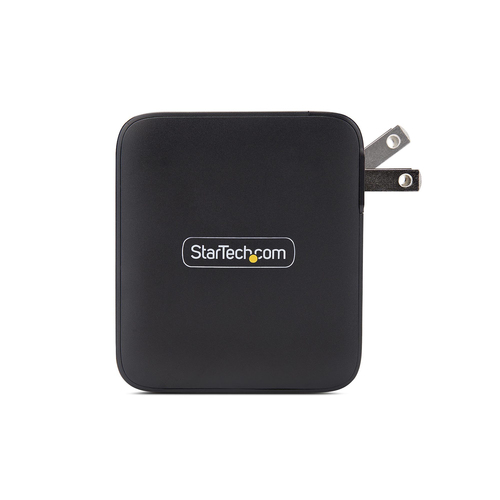

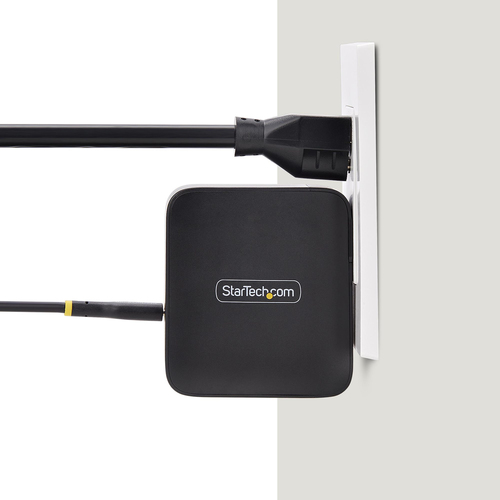

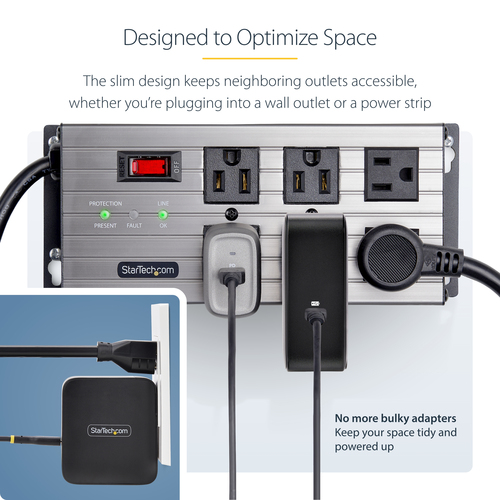

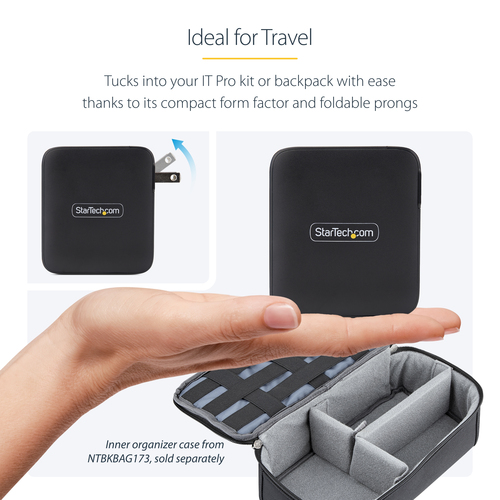

This USB Wall Charger is engineered for optimal cooling, providing a safer, more reliable charging experience. Balancing compact size with powerful functionality, it features a foldable North American power plug (NEMA 1-15P) for easy storage and delivers fast, efficient charging while maintaining long-lasting performance. At just 10.5 oz (299 g), this travel-friendly adapter combines robust capabilities with easy portability, making it an ideal companion on the go.
Designed for Safe Charging

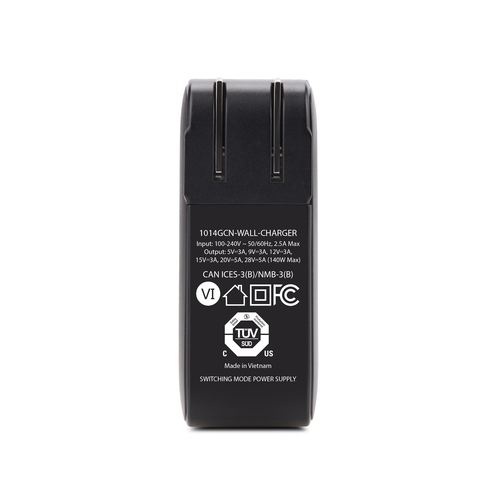

Safety and efficiency are paramount with the 140W USB GaN Charger. It is TUV Safety Listed (IEC 62368-1) and FCC/ICES EMC certified, providing protection against over-voltage, current, and temperature. The Active Power Factor Correction (PF >0.99) enhances efficiency and ensures cool operation. Additionally, it meets DOE Level VI standards, guaranteeing energy efficiency and reliable performance.
Specifications
Performance
- Charger compatibility
- Universal
- Power source type
- AC
- USB Type-C ports quantity
- 1
- Fast charging
- Yes
- Charger type
- Indoor
- Number of simultaneously connected devices (max)
- 1
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.1
Design
- Product colour
- Black
- Cable length
- 1.8 m
- Housing material
- Plastic
- Gallium nitride (GaN) transistors
- Yes
Power
- Input voltage
- 100 - 240 V
- Input current
- 2 A
- Maximum power
- 140 W
- Maximum output voltage
- 28 V
- Minimum output voltage
- 5 V
- Output current (5V)
- 3 A
- Output current (9V)
- 3 A
- Output current (12V)
- 3 A
- Output current (15V)
- 3 A
- Output current (20V)
- 5 A
- Compatible power plug types
- US
Weight & dimensions
- Width
- 31 mm
- Depth
- 68 mm
- Height
- 78 mm
- Weight
- 299 g
Packaging data
- Package width
- 161 mm
- Package depth
- 86 mm
- Package height
- 38 mm
- Package weight
- 500 g
Operational conditions
- Operating temperature (T-T)
- 0 - 25 °C
- Storage temperature (T-T)
- -20 - 80 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 30 - 90%
Packaging content
- Cables included
- USB Type-C to USB Type-C
- Manual
- Yes
Logistics data
- Master (outer) case width
- 335 mm
- Master (outer) case length
- 181 mm
- Master (outer) case height
- 205 mm
- Products per master (outer) case
- 20 pc(s)
