SamsungSignage Displays

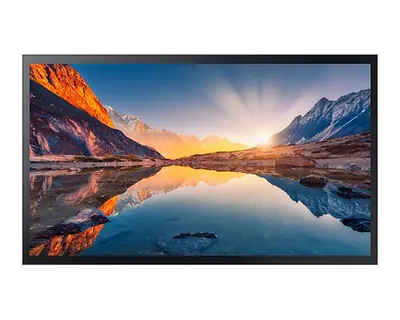

43" UHD Capacitive Touch, Non-glare, IP5x rated, Centre IR, 24/7, buillt in 1.7GHz Quad Core CPU
- Indoor Digital signage flat panel Black
- 109.2 cm (43") 3840 x 2160 pixels LCD 500 cd/m²
- Touchscreen 8 ms
- Ethernet LAN Wi-Fi
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
43" UHD Capacitive Touch, Non-glare, IP5x rated, Centre IR, 24/7, buillt in 1.7GHz Quad Core CPU (SoC), WiFi, BT, MagicInfo 6.5, 56.7 mm depth
Specifications
Display
- Panel type
- VA
- Display diagonal
- 109.2 cm (43")
- Display technology
- LCD
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 500 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- Yes
- Touchscreen technology
- Capacitive
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 4000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.245 x 0.245 mm
- Display diagonal (metric)
- 108 cm
- Horizontal scan range
- 30 - 81 kHz
- Vertical scan range
- 48 - 75 Hz
- Haze rate
- 25%
- Pixel frequency (max)
- 594 MHz
- RGB colour space
- DCI-P3
Ports & interfaces
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- HDMI input ports quantity
- 3
- DVI port
- No
- DisplayPorts quantity
- 1
- DisplayPorts in
- 1
- DisplayPort version
- 1.2
- USB port
- Yes
- USB ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
- Infrared data port
- Yes
- Remote (IR) input
- 1
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Product colour
- Black
- Screen shape
- Flat
- VESA mounting
- Yes
- Panel mounting interface
- 200 x 200 mm
- Bezel colour
- Charcoal Black
Performance
- Purpose
- Universal
- Operating hours (hours/days)
- 24/7
- HDCP
- Yes
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 110 W
- Power consumption (sleep)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Computer system
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Built-in processor
- Yes
- Operating system installed
- Tizen 6.5
Weight & dimensions
- Display width
- 986.2 mm
- Display depth
- 56.7 mm
- Display height
- 584.4 mm
- Display weight
- 14.5 kg
Packaging data
- Package width
- 1134 mm
- Package depth
- 141 mm
- Package height
- 725 mm
- Package weight
- 18.7 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
Certificates
- Certification
- Class B 60950-1, 62368-1
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Downloads
