NETGEARWireless Access Points
WAX610W 1800 Mbit/s White Power over Ethernet (PoE)
- Dual-band delivering 1.8 Gbps of data throughput
- Purpose-built for hospitality, MDUs, and classrooms
- Connect to a Gigabit Ethernet switch for maximum speed
- 8 separate wireless networks (SSIDs)
- Simplified deployment with PoE
- VLAN and QoS configurable via Insight Remote Cloud Management
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
POWERFUL BUSINESS WIFI
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.
01
IDEAL FOR HOSPITALITY & EDUCATION
Ultimate WiFi performance for hotels, multi-dwelling units (MDUs), and classrooms.
02
SEAMLESS MESH WIFI
Seamlessly expand your network with any mesh-connected Insight access points.
03
EASY DEPLOYMENT

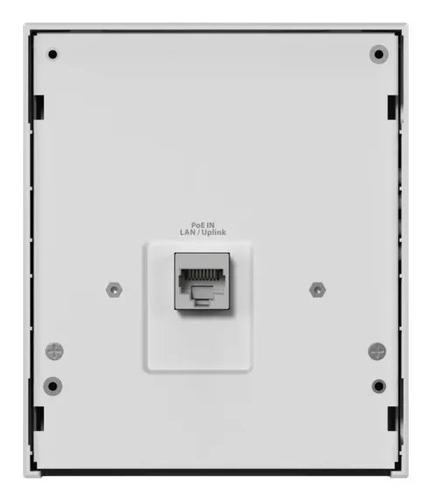

One PoE Gigabit port for easy setup, plus four additional LAN ports to connect to IP phones, smart TVs, and more.
04
CUSTOM GUEST WIFI
Create a branded, customizable guest WiFi experience with the optional Captive Portal.
Specifications
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 600 Mbit/s
- Maximum data transfer rate (5 GHz)
- 1200 Mbit/s
- Frequency band
- 2.5 - 5 GHz
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Spread spectrum method
- OFDM, OFDMA
- Fast roaming
- Yes
Security
- Security algorithms
- EAP, TLS, TTLS
- MAC address filtering
- Yes
- Guest access
- Yes
- Auto Wireless Distribution System (WDS)
- Yes
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 4
- WAN connection
- Ethernet (RJ-45)
Power
- Power over Ethernet (PoE)
- Yes
- Output voltage
- 54 V
- Output current
- 1.2 A
Design
- Placement
- Desk
- Product colour
- White
- LED indicators
- Network, Power, Status
Antenna
- Antenna type
- Internal
Weight & dimensions
- Width
- 110 mm
- Depth
- 130 mm
- Height
- 34.2 mm
- Weight
- 380 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Warranty period
- 5 year(s)
